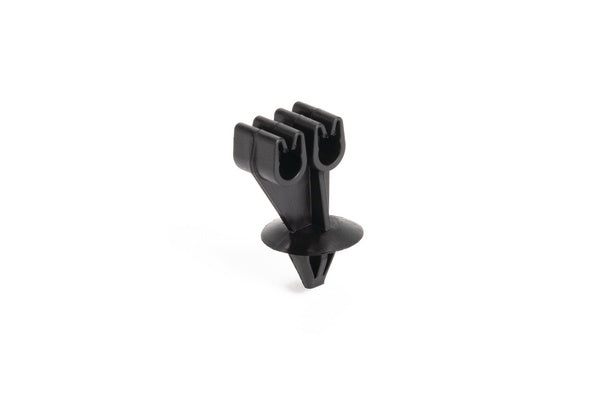

HellermannTyton 133-04044 | Tube and Pipe Clip with 6.5mm Arrowhead...
Description
Description
This clip features a modular design that can be used individually or lined together to secure multiple pipes or hoses.
This clip features a modular design that can be used individually or lined together to secure multiple pipes or hoses.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 133-04044 - Features
- Secures two routings together while keeping them separated, to prevent chafing or heat transfer.
- Inverted retaining legs and narrow opening prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Robust arrowhea design provides low insertion effort yet delivers exceptional retention strength in a 6.5 mm hole.
- For use with routings of the following size: 2x 4.7-5.1mm
- Prints detectable TipTag markers, as well as thermal transfer labels and more, for use in food, beverage and pharmaceutical operations.
- High-volume, ultra-fast, premium-quality printing for dependable performance and excellent results.
- Color LCD touchscreen for intuitive control.
- Optional premium quality accessories such as a perforator and cutter extend the printer’s capability.
Specifications
Specifications
HellermannTyton - 133-04044 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Clips
- Tube and Pipe Clips
HellermannTyton - 133-04044 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 133-04044 - Base Data
| Article Number | 133-04044 |
|---|---|
| Type | PC5X2SO |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Tube and Pipe Clip with 6.5mm Arrowhead, 1.2-1.6mm Panel Thickness, PA66HIRHS, Black, 5000/ctn |
| Global Part Name | PC5X2SO-PA66HIRHS-BK |
HellermannTyton - 133-04044 - Product Dimensions
| Length L (Imperial) | 0.97 |
|---|---|
| Length L (Metric) | 23.74 |
| Fixation Method | Arrowhead |
| Width W (Imperial) | 0.88 |
| Width W (Metric) | 22.35 |
| Height H (Imperial) | 1.14 |
| Height H (Metric) | 28.9 |
| Panel Thickness Min (Imperial) | 0.02 |
| Panel Thickness Max (Imperial) | 0.04 |
| Panel Thickness Min (Metric) | 0.6 |
| Panel Thickness Max (Metric) | 1 |
| Mounting Hole Diameter D (Imperial) | 0.24" x 0.27 |
| Mounting Hole Diameter D (Metric) | 6.1 - 6.9 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.24 |
| Mounting Hole Diameter D Max (Imperial) | 0.27 |
| Mounting Hole Diameter D Max (Metric) | 6.9 |
HellermannTyton - 133-04044 - Logistic & Packaging
| Package Quantity (Imperial) | 5008 |
|---|---|
| Package Quantity (Metric) | 5000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 133-04044 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
