HellermannTyton 133-04257 | Edge Clip and Tape Clip, Panel Thicknes...
Description
Description

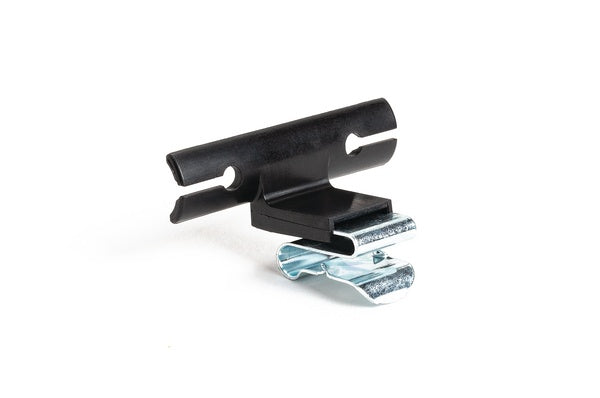

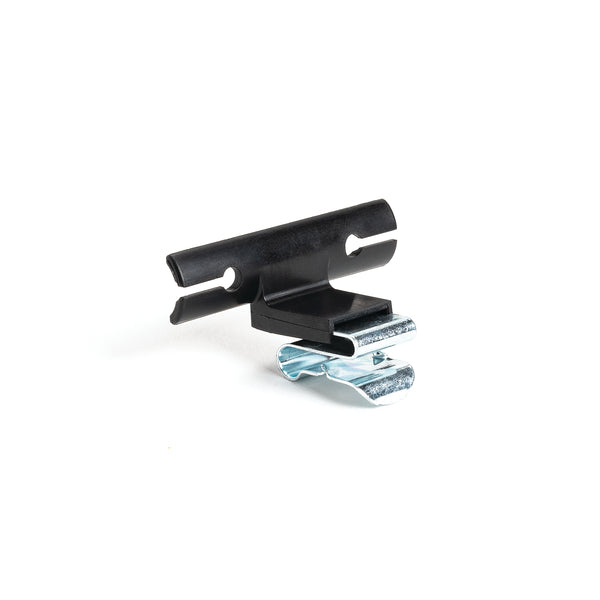

HellermannTyton’s edge clips are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. These edge clips are molded to a tape bar, which can be secured to cables with cable ties or tape. The clip is easy to secure, and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 133-04257 - Features
- UV resistant materials contain an inhibitor that prolongs the life of the tie in outdoor environments.
- One-piece design reduces installation time.
- Outside serrations prevent cable damage.
Specifications
Specifications
HellermannTyton - 133-04257 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Edge Clips
HellermannTyton - 133-04257 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| Type | Cable Clip - Push Mount |
| UNSPSC Code | 39121700 |
HellermannTyton - 133-04257 - Base Data
| Article Number | 133-04257 |
|---|---|
| Type | TEC70 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Edge Clip and Tape Clip, Panel Thickness .06" - .08 ", 1.43" Long, PA66HIRHSUV, Black, 4000/ctn |
| Global Part Name | TEC70-PA66HIRHSUV/MET-BK |
HellermannTyton - 133-04257 - Product Dimensions
| Length L (Imperial) | 0.61 |
|---|---|
| Length L (Metric) | 15.5 |
| Offset Length (Imperial) | 0.32 |
| Offset Length (Metric) | 8.1 |
| Width W (Imperial) | 0.39 |
| Width W (Metric) | 9.9 |
| Bundle Diameter Max (Imperial) | 0.16 |
| Bundle Diameter Max (Metric) | 7.8 |
| Height H (Imperial) | 0.38 |
| Height H (Metric) | 9.6 |
| Diameter D (Imperial) | 0.16 |
| Diameter D (Metric) | 4 |
| Panel Thickness Min (Imperial) | 0.06 |
| Panel Thickness Max (Imperial) | 0.08 |
| Panel Thickness Min (Metric) | 1.6 |
| Panel Thickness Max (Metric) | 2 |
HellermannTyton - 133-04257 - Logistic & Packaging
| Package Quantity (Imperial) | 4000 |
|---|---|
| Package Quantity (Metric) | 4000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 133-04257 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)Metal (MET) |
|---|---|
| Material Shortcut | METPA66HIRHSUV |
| UV Resistant (Yes/No) | Yes |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
