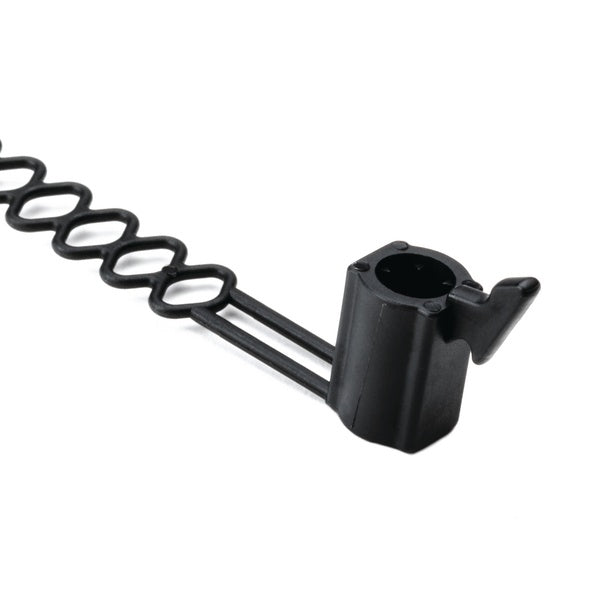

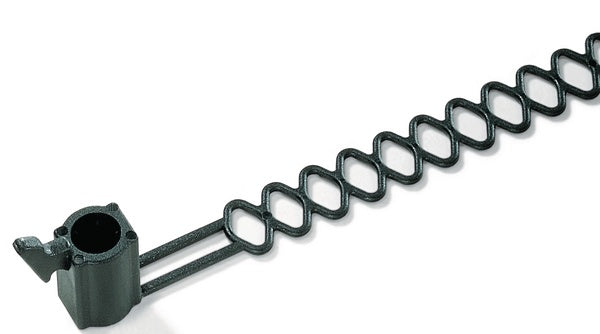

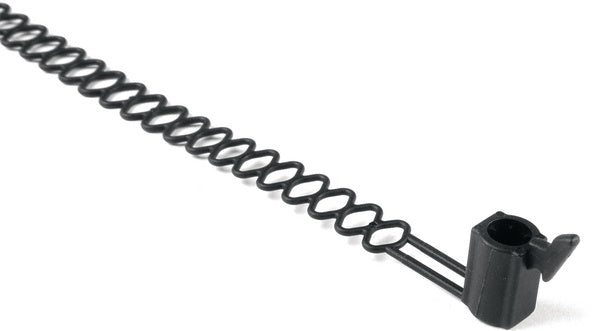

HellermannTyton 150-28140 | Ladder Stud Mount, 4.3" Length, Stud Diameter .2", Max Bundle Diameter 0.91", Pa66, Black, 500/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 150-28140 | Ladder Stud Mount, 4.3" Length, St...
Description
Description

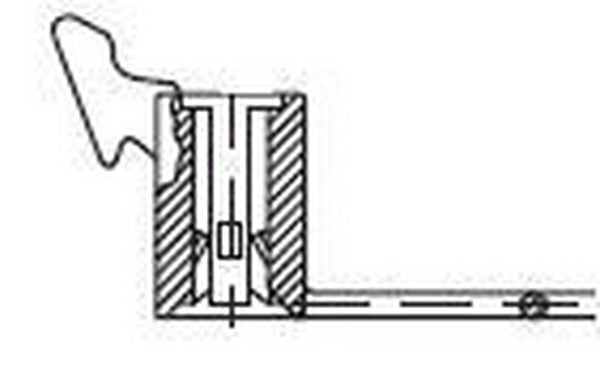

Ladder Stud Mounts can be used in a wide variety of applications where .2" diameter bolts are used, and cables need to be bundled and secured. The unique latch style allows for easy re-entry to bundles.
Ladder Stud Mounts can be used in a wide variety of applications where .2" diameter bolts are used, and cables need to be bundled and secured. The unique latch style allows for easy re-entry to bundles.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 150-28140 - Features
- Mount design applies quickly and easily to .2" (5mm) studs.
- Unique latch style allows for easy re-entry to bundles.
- Design gives low insertion force and high extraction force.
- One-piece ratchet closure allows for easy installation during pre- or final assembly.
- Easy release feature simplifies quick adjustments and maintenance.
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
- Stainless steel mounting plate tolerates high torque and provides superior corrosion resistance against chemicals, salt spray and contact with dissimilar metals.
- Straight, 180° mounting plate is ideal for applications requiring a flush mount set off from the mounting hole.
Specifications
Specifications
HellermannTyton - 150-28140 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-Affixing Cable Ties
- Stud Mount Cable Ties
HellermannTyton - 150-28140 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .200 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 150-28140 - Base Data
| Article Number | 150-28140 |
|---|---|
| Type | FBB140 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Ladder Stud Mount, 4.3" Length, Stud Diameter .2", Max Bundle Diameter 0.91", PA66, Black, 500/pkg |
| Global Part Name | FBB140-PA66HS-BK |
HellermannTyton - 150-28140 - Product Dimensions
| Length L (Imperial) | 5.7 |
|---|---|
| Length L (Metric) | 142 |
| Fixation Method | Weld Stud Fixing |
| Identification Plate Position | none |
| Releasable Closure | Yes |
| Tie Closure | ladder style |
| Variant | Not Serrated |
| Width W (Imperial) | 0.4 |
| Width W (Metric) | 10 |
| Bundle Diameter Min (Imperial) | 0.24 |
| Bundle Diameter Min (Metric) | 6 |
| Bundle Diameter Max (Imperial) | 1.5 |
| Bundle Diameter Max (Metric) | 38 |
| Height H (Imperial) | 0.06 |
| Height H (Metric) | 1.4 |
| Stud Diameter (Metric) | 5.0 mm |
| Stud Diamater (Imperial) | 0.2 |
HellermannTyton - 150-28140 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 150-28140 - Materials & Specifications
| Material | Polyamide 6.6 heat stabilized (PA66HS) |
|---|---|
| Material Shortcut | PA66HS |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
