HellermannTyton 150-37791 | 2-Piece Cable Tie/Arrowhead Mount, 6.5mm hole dia., 0.6-8.25mm Panel Thickness, PA66HIRHS, Black, 500/bag
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 150-37791 | 2-Piece Cable Tie/Arrowhead Mount, 6.5m...
Description
Description

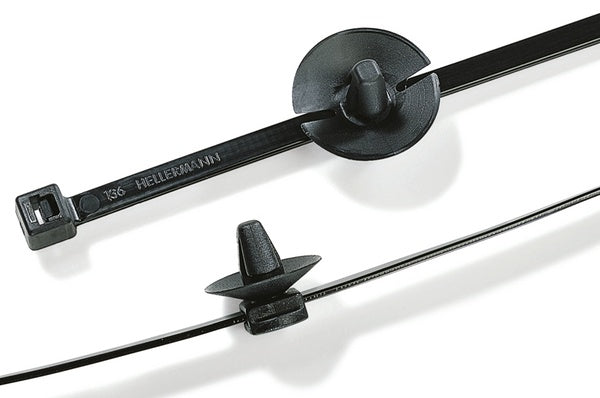

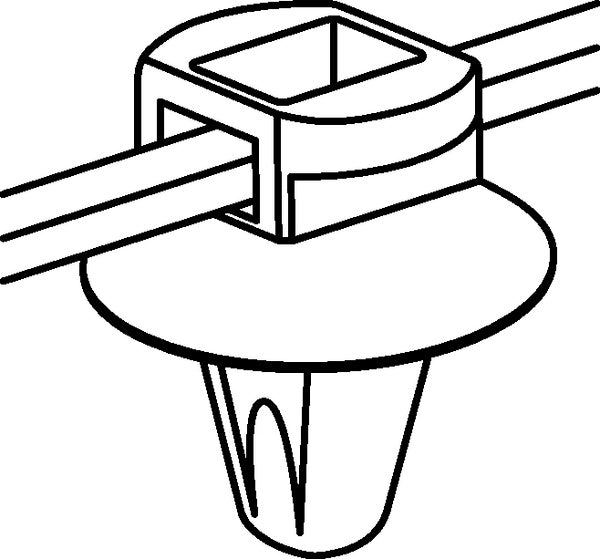

HellermannTyton’s Arrowhead Push Mount Tie Assembly is a two piece design allowing the mount to slide along the strap of the tie to ensure proper orientation. The arrowhead mount is designed for low insertion into a pre-drilled hole, while providing a high extraction force. The disc also protects against dirt and other impurities.
HellermannTyton's Arrowhead Push Mount Tie Assembly is a two piece design allowing the mount to slide along the strap of the tie to ensure proper orientation. The arrowhead mount is designed for low insertion into a pre-drilled hole, while providing a high extraction force. The disc also protects against dirt and other impurities.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 150-37791 - Features
- Two-piece assembly allows mount to slide along strap, ensuring proper orientation.
- Arrowhead-style mount provides low insertion and high extraction force.
- Multiple material options provide solutions for any environment.
- Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point.
- Clip is reusable, making relocation or adjustments simple.
- All-in-one bundling and mounting solution reduces costs.
Specifications
Specifications
HellermannTyton - 150-37791 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-Affixing Cable Ties
- Arrowhead Mount Cable Ties
HellermannTyton - 150-37791 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Spiral Wrap | No |
| UNSPSC Code | 39130000 |
HellermannTyton - 150-37791 - Base Data
| Article Number | 150-37791 |
|---|---|
| Type | T50ROSSFT6.5-16-3 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | 2-Piece Cable Tie/Arrowhead Mount, 6.5mm hole dia., 0.6-8.25mm Panel Thickness, PA66HIRHS, Black, 500/bg |
| Global Part Name | T50ROSSFT6.5-16-3-PA66HS/PA66HIRHS-BK |
HellermannTyton - 150-37791 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 225 |

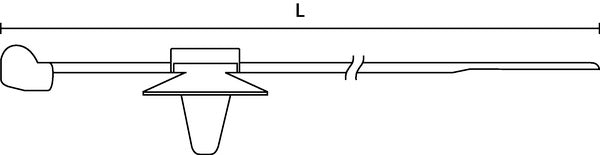

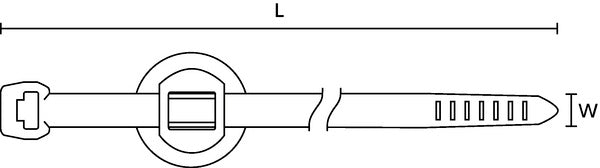

| Length L (Imperial) | 7.87 |
| Length L (Metric) | 200 |
| Fixation Method | Arrowhead |
| Identification Plate Position | none |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Width W (Imperial) | 0.181 |
| Width W (Metric) | 4.6 |
| Bundle Diameter Min (Imperial) | 0.197 |
| Bundle Diameter Min (Metric) | 5 |
| Bundle Diameter Max (Imperial) | 1.77 |
| Bundle Diameter Max (Metric) | 45 |
| Height H (Imperial) | 0.051 |
| Height H (Metric) | 1.3 |
| Panel Thickness Min (Imperial) | 0.098 |
| Panel Thickness Max (Imperial) | 0.138 |
| Panel Thickness Min (Metric) | 2.5 |
| Panel Thickness Max (Metric) | 3.5 |
| Mounting Hole Diameter D (Imperial) | 0.248 - 0.264 |
| Mounting Hole Diameter D (Metric) | 6.3 - 6.7 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.248 |
| Mounting Hole Diameter D Max (Imperial) | 0.26 |
| Mounting Hole Diameter D Max (Metric) | 6.7 |
| Disc Diameter (Metric) | 16 |
| Disc Diameter (Imperial) | 0.63 |
HellermannTyton - 150-37791 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 150-37791 - Materials & Specifications
| Material | Polyamide 6.6 heat stabilized (PA66HS)Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHSPA66HS |
| Material Cable Tie | Polyamide 6.6 heat stabilized (PA66HS) |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
