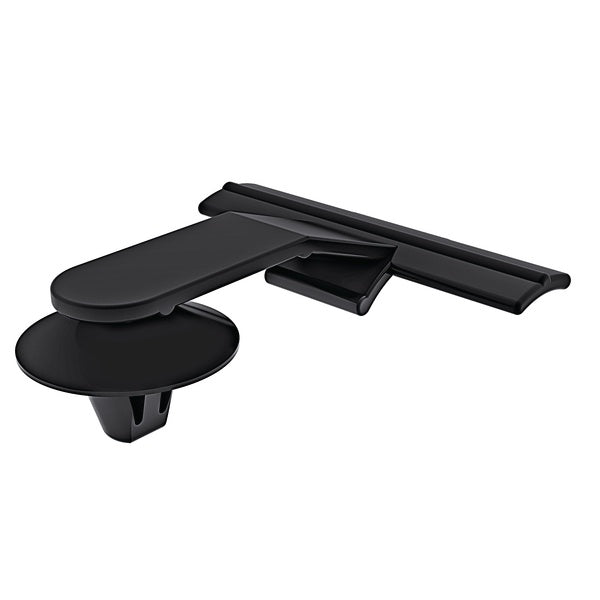

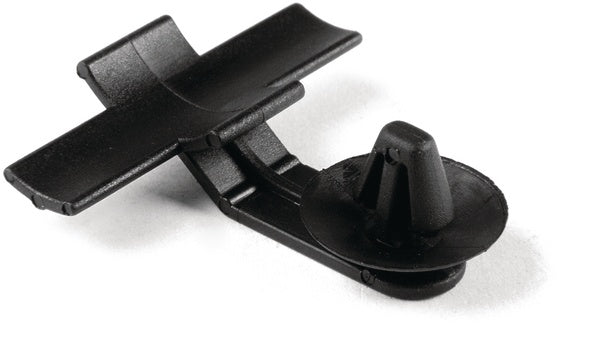

HellermannTyton 150-45397 | Standoff Bundling Clip, 1.6" Long, Panel Thickness .02 - .07", Pa66Hirhs, Black, 500/Box
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 150-45397 | Standoff Bundling Clip, 1.6" Long,...
Description
Description

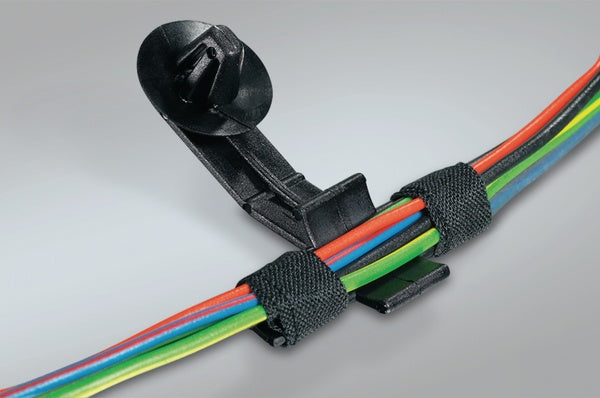

Standoff bundling clips provide a straightforward way to secure cable bundles, hoses or pipes. The bundle fastens to the tape bar using tape or cable ties. Multiple orientations allow tape clips to be used with a wide range of panel thicknesses and hol e diameters. Standoff keeps bundles away from mounting area to prevent them from damage due to rubbing.
Standoff bundling clips provide a straightforward way to secure cable bundles, hoses or pipes. The bundle fastens to the tape bar using tape or cable ties. Multiple orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standoff keeps bundles away from mounting area to prevent them from damage due to rubbing.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 150-45397 - Features
- Clip can be installed by hand - no need for hardware or tools.
- Design provides low insertion and high extraction force, for simple, secure performance.
- Clip keeps bundle away from areas that could cause damage due to rubbing.
- One-piece ratchet closure allows for easy installation during pre- or final assembly.
- Easy release feature simplifies quick adjustments and maintenance.
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
- Stainless-steel mounting plate tolerates high torque and provides superior corrosion resistance against chemicals, salt spray and contact with dissimilar metals.
- Angled mounting plates are ideal for stacking RPCs or for avoiding obstructions or heat sources.
Specifications
Specifications
HellermannTyton - 150-45397 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-affixing Clips
- Bundling Clips
HellermannTyton - 150-45397 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 150-45397 - Base Data
| Article Number | 150-45397 |
|---|---|
| Type | STAND OFF CLIP |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Standoff Bundling Clip, 1.6" Long, Panel Thickness .02 - .07", PA66HIRHS, Black, 500/box |
| Global Part Name | STAND OFF CLIP-PA66HIRHS-BK |

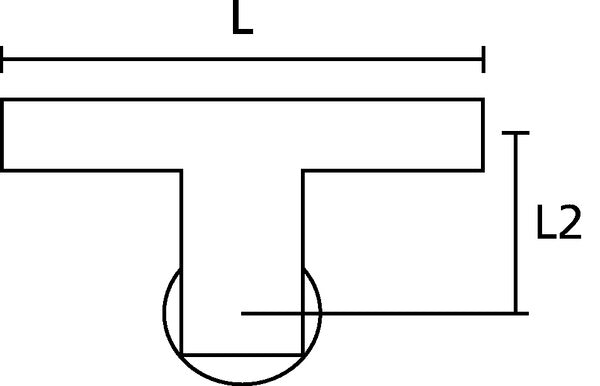

HellermannTyton - 150-45397 - Product Dimensions
| Length L (Imperial) | 1.6 |
|---|---|
| Length L (Metric) | 40 |
| Offset Length (Imperial) | 1.22 |
| Offset Length (Metric) | 31 |
| Fixation Method | Arrowhead |
| Height H (Imperial) | 0.6 |
| Height H (Metric) | 15.24 |
| Panel Thickness Min (Imperial) | 0.02 |
| Panel Thickness Max (Imperial) | 0.06 |
| Panel Thickness Min (Metric) | 0.4 |
| Panel Thickness Max (Metric) | 1.6 |
| Mounting Hole Diameter D (Imperial) | 0.26 - 0.27 |
| Mounting Hole Diameter D (Metric) | 6.5 - 6.8 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.28 |
| Mounting Hole Diameter D Max (Imperial) | 0.27 |
| Mounting Hole Diameter D Max (Metric) | 6.8 |
| Disc Diameter (Metric) | 18 |
| Disc Diameter (Imperial) | 0.71 |
HellermannTyton - 150-45397 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 150-45397 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
