HellermannTyton 150-55610 | 1-Piece Cable Tie/Fir Tree Mount With D...
Description
Description

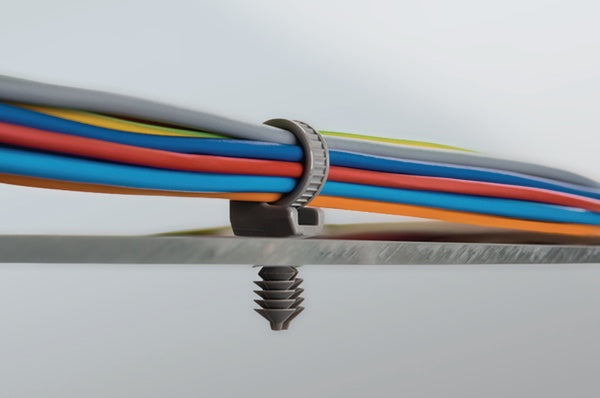

Fir tree mounts with ties cables provide a secure grip in mounting holes and protect against dirt and other impurities. This is sold as an assembly with the cable tie.
Fir tree mounts with ties cables provide a secure grip in mounting holes and protect against dirt and other impurities. This is sold as an assembly with the cable tie.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 150-55610 - Features
- Fir tree mounts are equipped with a friction tab that will hold the tie in the mount, allowing them to be preassembled prior to installation.
- Fir Tree design provides low extraction and high extraction force.
- Metalized polyester has a matte finish, allowing for the highest resolution and print contrast.
- The acrylic-based adhesive bonds to a wide variety of substrates and can withstand high temperatures long term.
Specifications
Specifications
HellermannTyton - 150-55610 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-Affixing Cable Ties
- Fir Tree Mount Cable Ties
HellermannTyton - 150-55610 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 150-55610 - Base Data
| Article Number | 150-55610 |
|---|---|
| Type | T18RDP5 |
| Color | Black (BK) |
| Quantity Per | pcs. |
| Short Description | 1-Piece Cable Tie/Fir Tree Mount with Disc, 4.3"L, 0.19 - 0.20" Mounting Hole, PA66, Black, 500/pkg |
| Global Part Name | T18RDP5-PA66-BK |
HellermannTyton - 150-55610 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 18 |
|---|---|
| Minimum Tensile Strength (Metric) | 80 |
| Length L (Imperial) | 4.3 |
| Length L (Metric) | 110 |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Width W (Imperial) | 0.1 |
| Width W (Metric) | 2.5 |
| Bundle Diameter Min (Imperial) | 0.06 |
| Bundle Diameter Min (Metric) | 1.5 |
| Bundle Diameter Max (Imperial) | 0.8 |
| Bundle Diameter Max (Metric) | 20 |
| Thickness T (Imperial) | 0.043 |
| Thickness T (Metric) | 1.1 |
| Panel Thickness Min (Imperial) | 0.12 |
| Panel Thickness Max (Imperial) | 0.02 |
| Panel Thickness Min (Metric) | 3 |
| Panel Thickness Max (Metric) | 4 |
| Mounting Hole Diameter D (Imperial) | 0.19 - 0.2 |
| Mounting Hole Diameter D (Metric) | 4.9 - 5.1 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.19 |
| Mounting Hole Diameter D Max (Imperial) | 0.197 |
| Mounting Hole Diameter D Max (Metric) | 5.1 |
| Disc Diameter (Metric) | 13 |
| Disc Diameter (Imperial) | 0.5 |
HellermannTyton - 150-55610 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 150-55610 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
