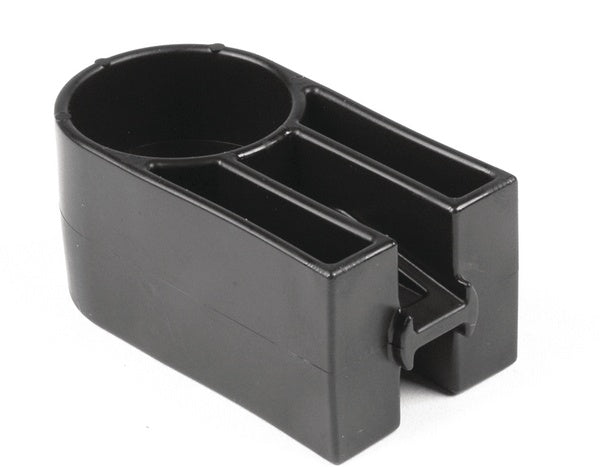

HellermannTyton 151-00006 | Cable Guide Standoff, 1.0" Max Bundle Diameter, Pa66Hirhsuv, Black, 250/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description

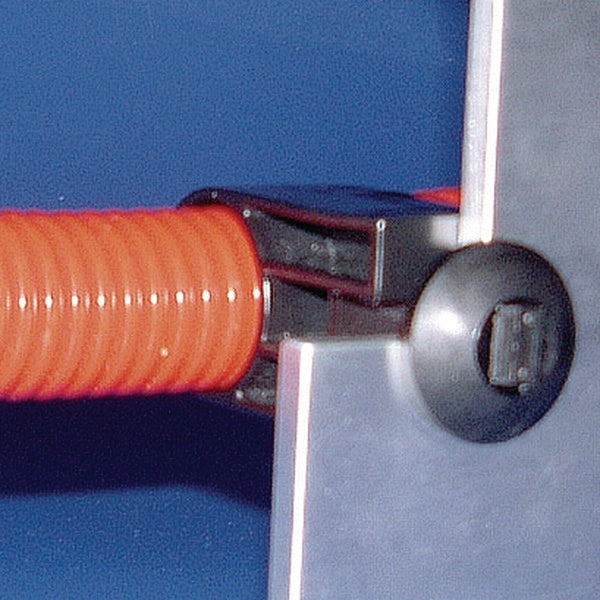

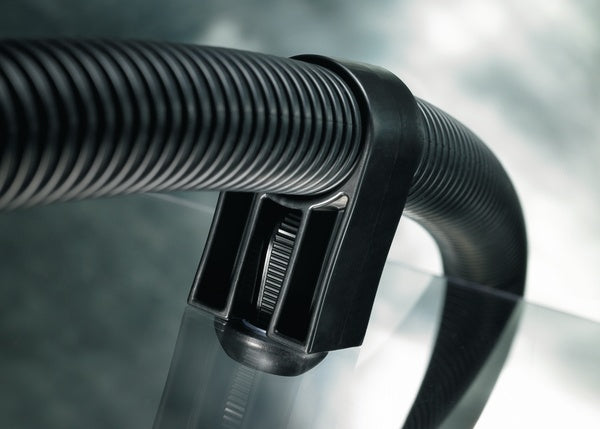

This cable guide standoff is designed for the use with HellermannTyton’s button head ties. The cable guide standoff stands off bundles from frame rails, providing clearance from bolts and other protrusions for protection against abrasion. This mount al so allows the flow-through of salt, dirt and other impurities from the road, preventing unwanted build-up on hoses and harnesses. This product perfectly secures convoluted tubing’s up to 26mm in diameter.
This cable guide standoff is designed for the use with HellermannTyton’s button head ties. The cable guide standoff stands off bundles from frame rails, providing clearance from bolts and other protrusions for protection against abrasion. This mount also allows the flow-through of salt, dirt and other impurities from the road, preventing unwanted build-up on hoses and harnesses. This product perfectly secures convoluted tubing’s up to 26mm in diameter.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-00006 - Features
- Tubes are fixed a defined distance from the substructure.
- Defined diameter for the wire entry.
- Retainer is fixed in the hole with BHT-tie.
Specifications
Specifications
HellermannTyton - 151-00006 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Convoluted Tubing and Accessories
- Convoluted Tubing - Accessories
HellermannTyton - 151-00006 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | 1.00 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-00006 - Base Data
| Article Number | 151-00006 |
|---|---|
| Type | CGS1 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Cable Guide Standoff, 1.0" Max Bundle Diameter, PA66HIRHSUV, Black, 250/pkg |
| Global Part Name | CGS1-PA66HIRHSUV-BK |

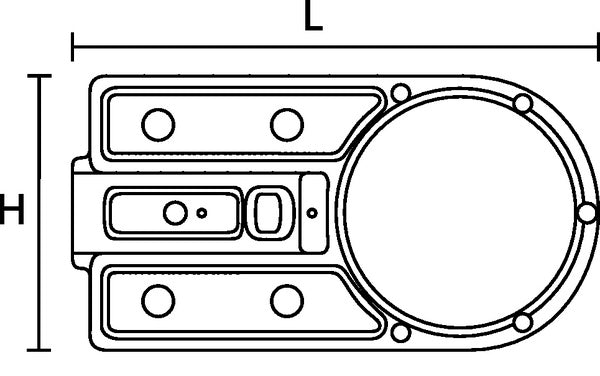

HellermannTyton - 151-00006 - Product Dimensions
| Length L (Imperial) | 2.23 |
|---|---|
| Length L (Metric) | 56.6 |
| Variant | Mounts |
| Width W (Imperial) | 1 |
| Width W (Metric) | 25.4 |
| Bundle Diameter Max (Imperial) | 1.02 |
| Bundle Diameter Max (Metric) | 25.8 |
| Height H (Imperial) | 1.2 |
| Height H (Metric) | 30.5 |
| Mounting Hole Diameter D (Imperial) | 0.5 |
| Mounting Hole Diameter D (Metric) | 12.7 mm |
HellermannTyton - 151-00006 - Logistic & Packaging
| Package Quantity (Imperial) | 250 |
|---|---|
| Package Quantity (Metric) | 250 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-00006 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
