HellermannTyton 151-00017 | Bundling Clip, 2.2" Long, .02-.24m...
Description
Description

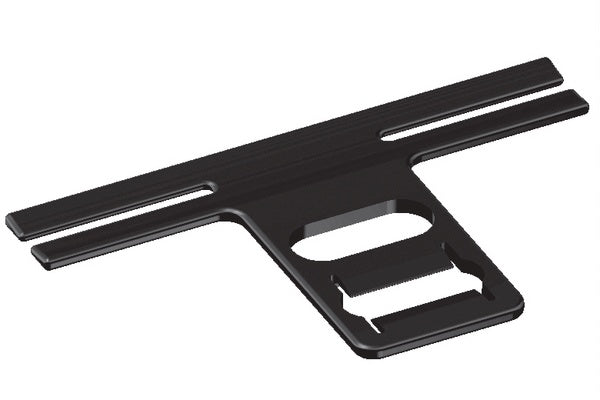

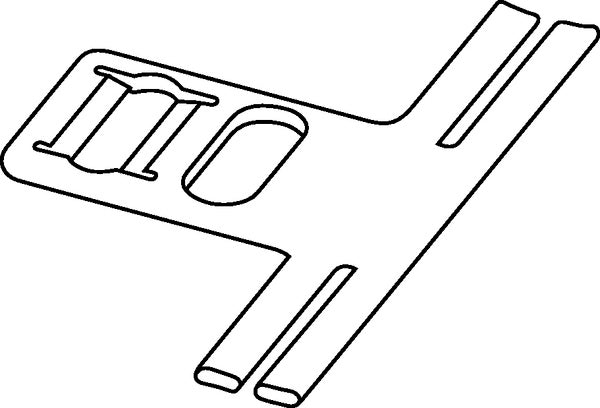

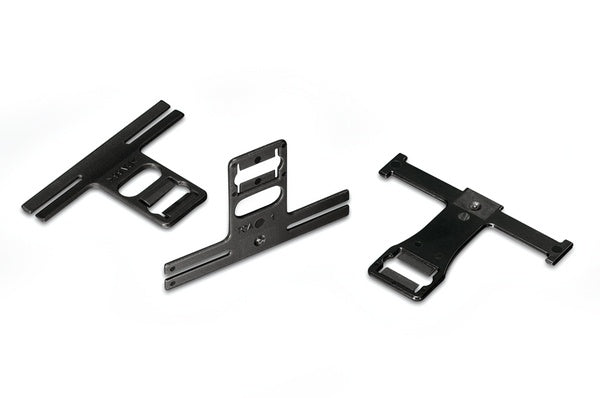

HellermannTyton Stud Mount Bundling Clips are easily inserted on a 5mm stud and secure the bundle away from the mounting hole. They are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the t ape bar using tape or cable ties.
HellermannTyton Stud Mount Bundling Clips are easily inserted on a 5mm stud and secure the bundle away from the mounting hole. They are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using tape or cable ties.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-00017 - Features
- Tape clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes.
- They are fastened onto the tape bar using tape or cable ties.
- The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.
- Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Independent rotation allows for adjustable routing orientation.
Specifications
Specifications
HellermannTyton - 151-00017 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Bundling Clips
HellermannTyton - 151-00017 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Cable/Tube/Bundle Dia | 12.0Mm |
| Color | Black |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-00017 - Base Data
| Article Number | 151-00017 |
|---|---|
| Type | BC2212 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Bundling Clip, 2.2" Long, 0.02–.24mm Panel Thick, 7.0–12.0mm Hole Dia, PA66HIRHS, Black, 1000/pkg |
| Global Part Name | BC2212-PA66HIRHS-BK |

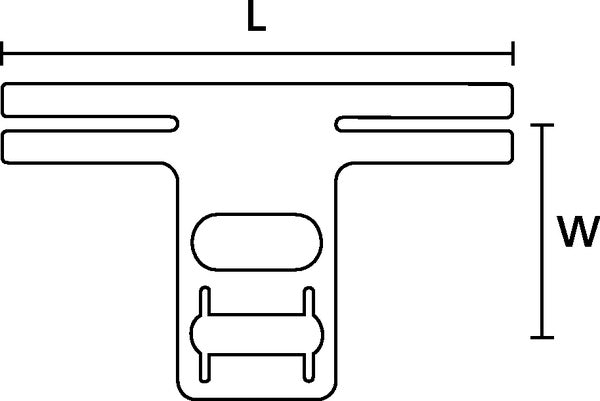

HellermannTyton - 151-00017 - Product Dimensions
| Length L (Imperial) | 2.2 |
|---|---|
| Length L (Metric) | 55 |
| Offset Length (Imperial) | 0.9 |
| Offset Length (Metric) | 22.8 |
| Fixation Method | Weld Stud Fixing |
| Width W (Imperial) | 0.87 |
| Width W (Metric) | 34 |
| Height H (Metric) | 1.5 |
| Diameter D (Imperial) | 0.2 |
| Stud Length Max (Imperial) | 0.9 |
| Stud Length Max (Metric) | 22.8 |
| Stud Diameter (Metric) | 5.0 mm |
| Stud Diamater (Imperial) | 0.2 |
HellermannTyton - 151-00017 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-00017 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
