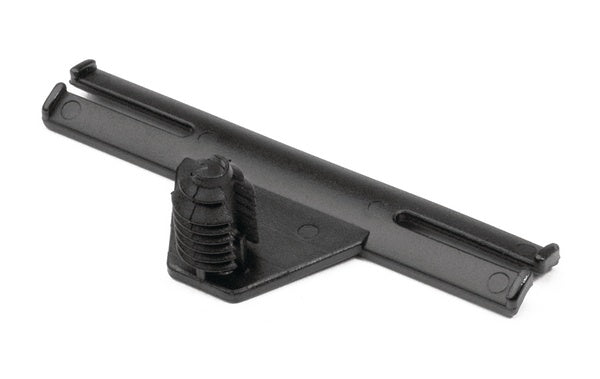

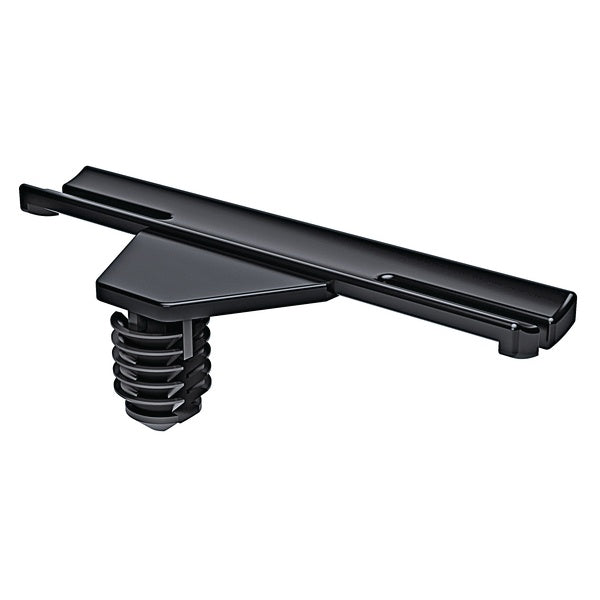

HellermannTyton 151-00074 | Standoff Bundling Clip, 2.2" Long, Panel Thickness .02"-.03", PA66HIRHS, Black, 500/box
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-00074 | Standoff Bundling Clip, 2.2" Long,...
Description
Description
Standoff bundling clips provide a straightforward way to secure cable bundles, hoses or pipes. The bundle fastens to the tape bar using tape or cable ties. Multiple orientations allow tape clips to be used with a wide range of panel thicknesses and hol e diameters. Standoff keeps bundles away from mounting area to prevent them from damage due to rubbing.
Standoff bundling clips provide a straightforward way to secure cable bundles, hoses or pipes. The bundle fastens to the tape bar using tape or cable ties. Multiple orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standoff keeps bundles away from mounting area to prevent them from damage due to rubbing.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-00074 - Features
- Clip can be installed by hand - no need for hardware or tools.
- Design provides low insertion and high extraction force, for simple, secure performance.
- Clip keeps bundle away from areas that could cause damage due to rubbing.
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
- Fir tree provides low insertion effort yet demonstrates high extraction resistance.
- Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
Specifications
Specifications
HellermannTyton - 151-00074 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-affixing Clips
- Bundling Clips
HellermannTyton - 151-00074 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-00074 - Base Data
| Article Number | 151-00074 |
|---|---|
| Type | SOC5FT6LG |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Standoff Bundling Clip, 2.2" Long, 0.02 - 0.03" Panel Thickness, PA66HIRHS, Black, 500/box |
| Global Part Name | SOC5FT6LG-PA66HIRHS-BK |

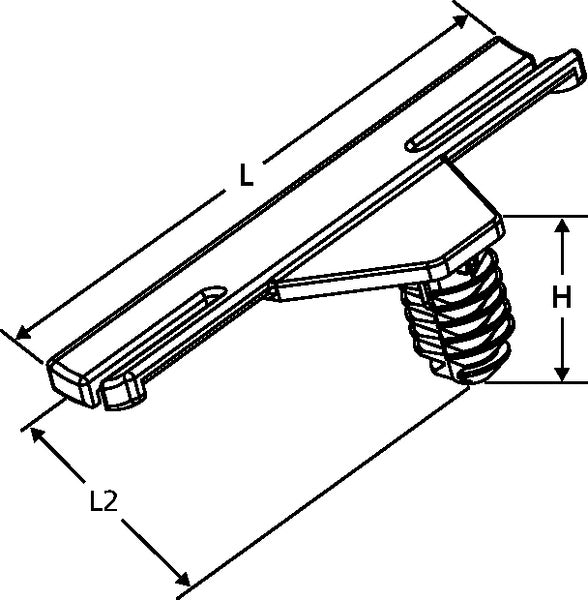

HellermannTyton - 151-00074 - Product Dimensions
| Length L (Imperial) | 2.2 |
|---|---|
| Length L (Metric) | 55 |
| Offset Length (Imperial) | 0.51 |
| Offset Length (Metric) | 13 |
| Fixation Method | Fir Tree |
| Height H (Imperial) | 0.5 |
| Height H (Metric) | 12.5 |
| Panel Thickness Min (Imperial) | 0.03 |
| Panel Thickness Max (Imperial) | 0.2 |
| Panel Thickness Min (Metric) | 0.7 |
| Panel Thickness Max (Metric) | 5.1 |
| Mounting Hole Diameter D (Imperial) | 0.25 - 0.28 "0.24 - 0.26 |
| Mounting Hole Diameter D (Metric) | 6.5 - 7.0 mm6.1 - 6.6 mm (hexagonal) |
| Mounting Hole Diameter D Min (Imperial) | 0.283 |
| Mounting Hole Diameter D Max (Imperial) | 0.28 |
| Mounting Hole Diameter D Max (Metric) | 7 |
HellermannTyton - 151-00074 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-00074 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
