HellermannTyton 151-00161 | Edge Clip, EC27, Panel Thickness 0.04 -...
Description
Description

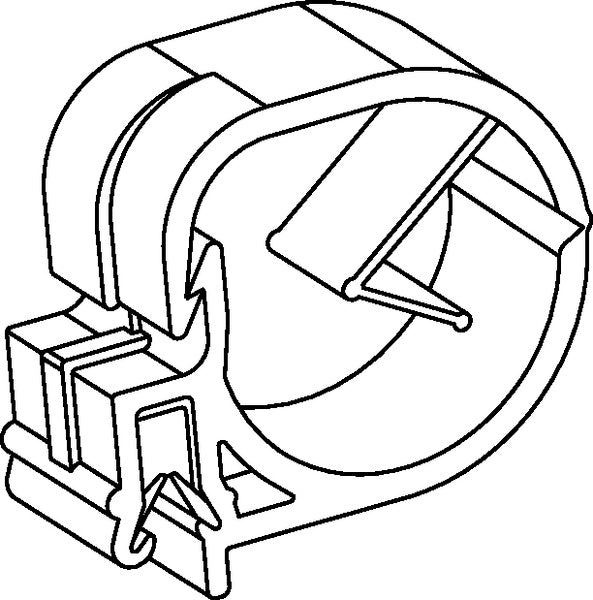

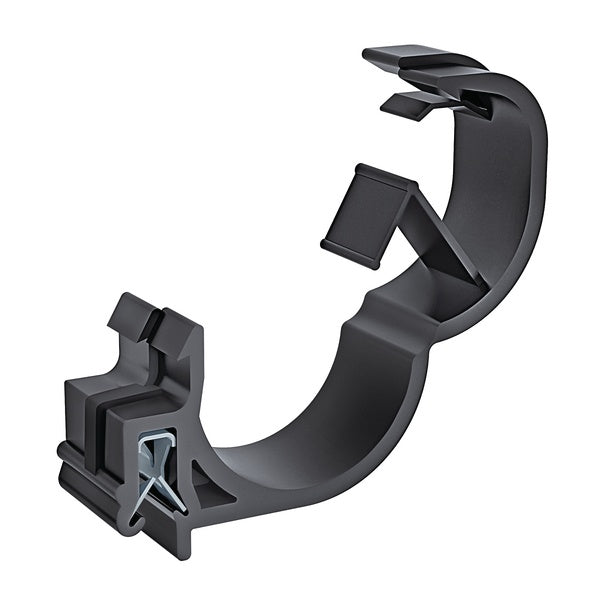

HellermannTyton’s edge clip and tape clip assembly is ideal for routing bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. The clip is easy to secure, and the extraction force is high due to the integ rated metal clamp that holds the edge clip in place. These edge clips include a tape bar, which can be secured to cables with cable ties or tape.
HellermannTyton's edge clip and tape clip assembly is ideal for routing bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. The clip is easy to secure, and the extraction force is high due to the integrated metal clamp that holds the edge clip in place. These edge clips include a tape bar, which can be secured to cables with cable ties or tape.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-00161 - Features
- Attaches easily to plastic and metal sheets without the need for a mounting hole.
- Edge clip provides low insertion force and high extraction force - ideal for assembly environments.
- Combination edge clip and tape bar reduces parts required to mount and bundle wires.
Specifications
Specifications
HellermannTyton - 151-00161 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-affixing Clips
- Edge Clips
HellermannTyton - 151-00161 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cable Tie - Clip Push Mount |
| UNSPSC Code | 39121703 |
HellermannTyton - 151-00161 - Base Data
| Article Number | 151-00161 |
|---|---|
| Type | EC27 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Edge Clip, EC27, Panel Thickness 0.04 - 0.12", PA66HIRHS, Black, 500/pkg |
| Global Part Name | EC27-PA66HIRHS-BK |
HellermannTyton - 151-00161 - Product Dimensions
| Bundle Diameter Min (Imperial) | 0.59 |
|---|---|
| Bundle Diameter Min (Metric) | 15 |
| Bundle Diameter Max (Imperial) | 0.87 |
| Bundle Diameter Max (Metric) | 22 |
| Panel Thickness Min (Imperial) | 0.04 |
| Panel Thickness Max (Imperial) | 0.12 |
| Panel Thickness Min (Metric) | 1 |
| Panel Thickness Max (Metric) | 3 |
HellermannTyton - 151-00161 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-00161 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
