HellermannTyton 151-00378 | Automatic Harness Clip, Connectable, 1.1" Bundle Max, Pa66Hirhs, Black, 500/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-00378 | Automatic Harness Clip, Connectable, 1....
Description
Description

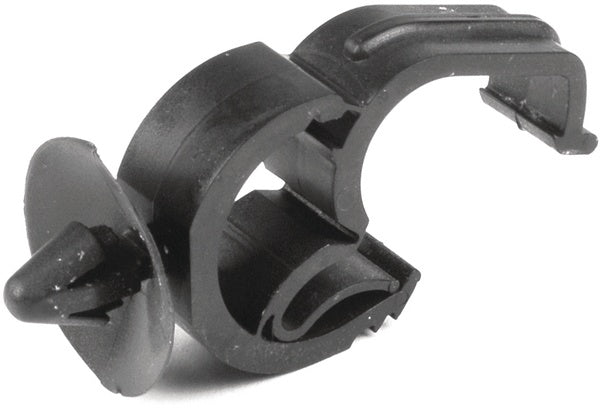

Automatic Harness Clips offer a simple and secure method of attaching cables to panels and other surfaces. When the cable is pushed inside, it automatically activates the locking features which causes it to close. These are also connectable which allow s for multiple cables to be positioned next to each other. These come in various sizes to fit different bundle diameters.
Automatic Harness Clips offer a simple and secure method of attaching cables to panels and other surfaces. When the cable is pushed inside, it automatically activates the locking features which causes it to close. These are also connectable which allows for multiple cables to be positioned next to each other. These come in various sizes to fit different bundle diameters.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-00378 - Features

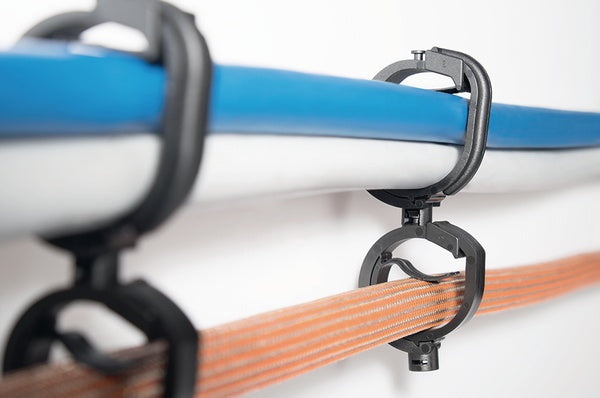

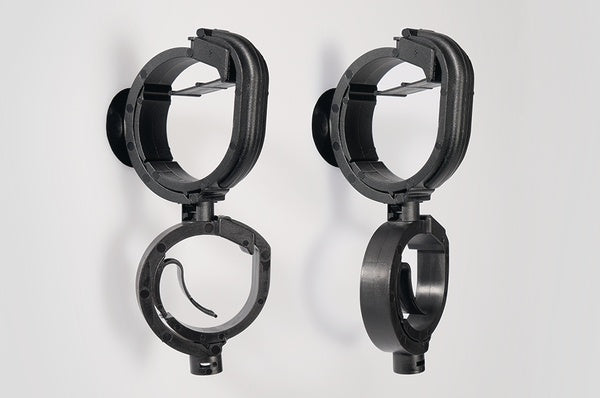

- Clips can be connected to each other to create a chain of cable harnesses.
- Secures firmly to surfaces to eliminate moisture and corrosion.
- Quick and easy installation ideal for the production environment.
- Fir tree design can be used with a wide variety of applications.
- Disc' on the top of the fir tree covers the hole and minimizes the ingress of water and dirt.
- Friction tab inside of fir tree allows tie to sit in mount without falling out prior to installation.
Specifications
Specifications
HellermannTyton - 151-00378 - Product Categories
- OEM
- MRO Equipment and Hardware
- Hardware and Ancillaries
- Bundling & Securing
- Self-affixing Clips
- Fir Tree Clips
HellermannTyton - 151-00378 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Clamps And Clips |
| UNSPSC Code | 31162900 |
HellermannTyton - 151-00378 - Base Data
| Article Number | 151-00378 |
|---|---|
| Type | IAHC3AH |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Automatic Harness Clip, Connectable, 1.1" Bundle Max, PA66HIRHS, Black, 500/pkg |
| Global Part Name | IAHC3AH-PA66HIRHS-BK |
HellermannTyton - 151-00378 - Product Dimensions
| Length L (Imperial) | 1.6 |
|---|---|
| Length L (Metric) | 40 |
| Width W (Imperial) | 0.4 |
| Width W (Metric) | 13.5 |
| Bundle Diameter Min (Metric) | 19 |
| Bundle Diameter Max (Metric) | 28 |
| Height H (Imperial) | 2.5 |
| Height H (Metric) | 64.5 |
| Panel Thickness Min (Imperial) | 0.04 |
| Panel Thickness Max (Imperial) | 0.03 |
| Panel Thickness Min (Metric) | 0.7 |
| Panel Thickness Max (Metric) | 2.7 |
| Mounting Hole Diameter D (Imperial) | 0.24 - 0.26 |
| Mounting Hole Diameter D (Metric) | 6.2 - 6.7 mm |
| Mounting Hole Diameter D Max (Metric) | 6.7 |
| Disc Diameter (Metric) | 24 |
| Disc Diameter (Imperial) | 0.94 |
HellermannTyton - 151-00378 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-00378 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
HellermannTyton - 151-00378 - Videos
| HellermannTyton 151-00378 Video URL | Click to View |
|---|---|
| HellermannTyton 151-00378 Video URL 2 | Click to View |
