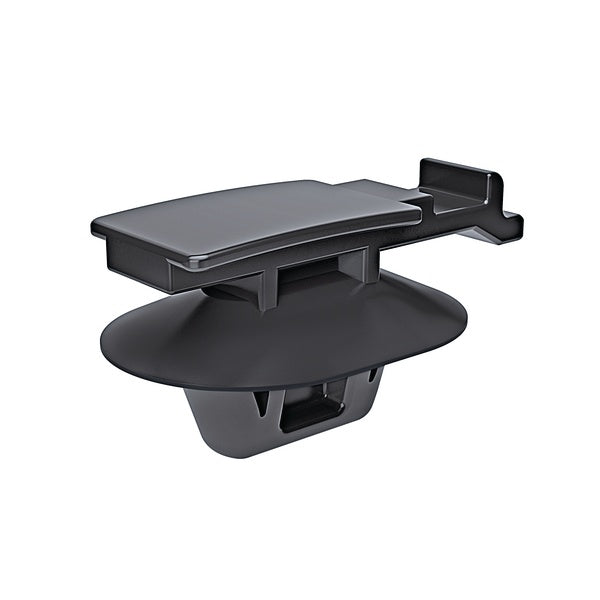

HellermannTyton 151-00513 | Connector Clip w/Oval Arrowhead, 0.6 - 1.0 mm Panel Thickness, 6.2 x 12.2 mm Hole Dia, PA66HIRHS, Black, 500/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-00513 | Connector Clip w/Oval Arrowhead, 0.6 - ...
Description
Description
Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so m any configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-00513 - Features
- Head design contains clamping rails to provide full circumferential compression around bundles.
- Bent tail allows for quick insertion into head.
Specifications
Specifications
HellermannTyton - 151-00513 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Fir Tree Clips
HellermannTyton - 151-00513 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-00513 - Base Data
| Article Number | 151-00513 |
|---|---|
| Type | YCCSFT62122 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Conn. Clip w/Oval Arrowhead, 0.6-1.0mm Panel Thick, 6.2x12.2 mm Hole Dia, PA66HIRHS, Black, 500/pkg |
| Global Part Name | YCCSFT62122-PA66HIRHS-BK |
HellermannTyton - 151-00513 - Product Dimensions
| Length L (Metric) | 27.5 |
|---|---|
| Fixation Method | Arrowhead for oval holes |
| Width W (Metric) | 16 |
| Height H (Metric) | 14.1 |
| Panel Thickness Min (Imperial) | 0.02 |
| Panel Thickness Max (Imperial) | 0.04 |
| Panel Thickness Min (Metric) | 0.6 |
| Panel Thickness Max (Metric) | 1 |
| Mounting Hole Diameter D (Imperial) | 0.24 - 0.48 |
| Mounting Hole Diameter D (Metric) | 6.2 x 12.2 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.24 |
| Mounting Hole Diameter D Max (Imperial) | 0.48 |
| Mounting Hole Diameter D Max (Metric) | 12.2 |
| Disc Diameter (Metric) | 22 |
| Disc Diameter (Imperial) | 0.87 |
HellermannTyton - 151-00513 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-00513 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
