Brand: HellermannTyton | SKU: 151-00621

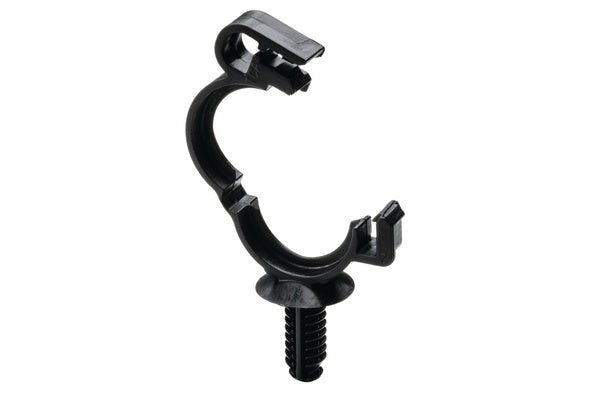

HellermannTyton 151-00621 | Convoluted Tubing Clip, 0.06" Max Bundle Diameter, .02"-.50" Panel Thick, PA66HIRHS, Black, 1500/box

Regular price $400.52
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

HellermannTyton 151-00621 | Convoluted Tubing Clip, 0.06" Max Bundle Diameter, 0.02" - 0.50" Panel Thick, Pa66Hirhsuv, Black, 1500/Box

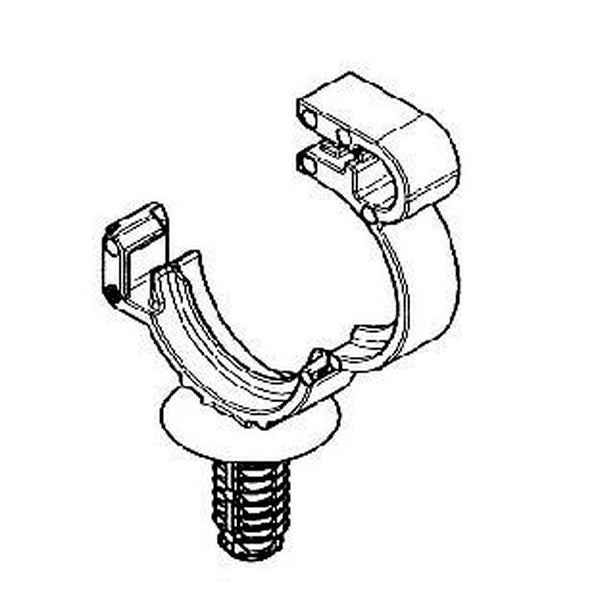

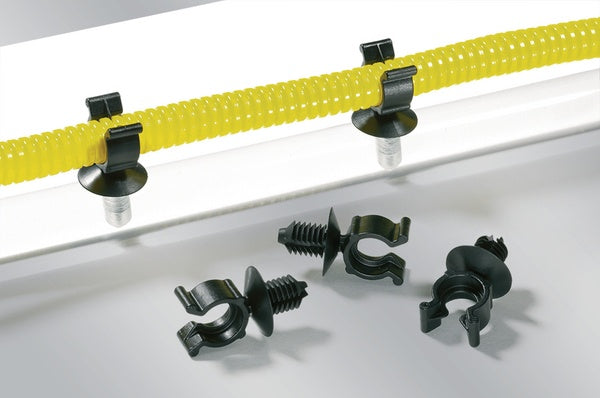

HellermannTyton’s Clamping Convoluted Tube Clip provides a more robust securing solution than traditional convoluted tube clips. Once clamped down, the internal locking feature engages to provide extra strong retention force which is important for appl ications where both direct vertical and side to side load forces are a concern. Also, an internal rib feature spans the diameter of the clip which provides a secure fit around the indent found on convoluted tubing.

HellermannTyton's Clamping Convoluted Tube Clip provides a more robust securing solution than traditional convoluted tube clips. Once clamped down, the internal locking feature engages to provide extra strong retention force which is important for applications where both direct vertical and side to side load forces are a concern. Also, an internal rib feature spans the diameter of the clip which provides a secure fit around the indent found on convoluted tubing.

About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.

HellermannTyton - 151-00621 - Features

  • Extended fir tree allows for a wide range of panel thicknesses.
  • Staggered fir tree branch design provides low insertion forces and high extraction forces.
  • Initial fir tree serves as a locating feature for assistance in blind assembly applications.

Specifications

HellermannTyton - 151-00621 - Product Categories

  • Hardware
  • Cable Management
  • Tubing
  • Bundling & Securing
  • Self-affixing Clips
  • Fir Tree Clips

HellermannTyton - 151-00621 - Specifications

Brand NameHellermannTyton
Decimal.200 Inch
DualNo
Heat ShrinkNo Is Not Shrink Tubing
UNSPSC Code39130000

HellermannTyton - 151-00621 - Base Data

Article Number151-00621
TypeCTCL16FT6LG
ColorBlack (BK)
Quantity Perbox
Short DescriptionConvoluted Tubing Clip, 0.06" Max Bundle Diameter, 0.02" - 0.50" Panel Thick, PA66HIRHSUV, Black, 1500/box
Global Part NameCTCL16FT6LG-PA66HIRHSUV-BK

HellermannTyton - 151-00621 - Product Dimensions

Fixation MethodFir Tree
VariantClips
Width W (Imperial)1.7
Width W (Metric)43.9
Bundle Diameter Max (Imperial)0.63
Bundle Diameter Max (Metric)16
Height H (Imperial)2.6
Height H (Metric)47.96
Nominal Diameter (Imperial)0.63
Nominal Diameter (Metric)16
Panel Thickness Min (Imperial)0.03
Panel Thickness Max (Imperial)0.51
Panel Thickness Min (Metric)0.7
Panel Thickness Max (Metric)13
Mounting Hole Diameter D (Imperial)0.25 - 0.28
Mounting Hole Diameter D (Metric)6.3 - 7.0 mm
Mounting Hole Diameter D Min (Imperial)0.25
Mounting Hole Diameter D Max (Imperial)0.275
Mounting Hole Diameter D Max (Metric)7

HellermannTyton - 151-00621 - Logistic & Packaging

Package Quantity (Imperial)1500
Package Quantity (Metric)1500
Customs Number3.93E+09

HellermannTyton - 151-00621 - Materials & Specifications

MaterialPolyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material ShortcutPA66HIRHSUV
UV Resistant (Yes/No)Yes
Operating Temperature-40°F to +221°F (-40°C to +105°C)
Reach Compliant (Article 33)No
ROHS CompliantYes
