HellermannTyton 151-00646 | High Bond Acrylic Adh Cable Tie Mount, ...
Description
Description

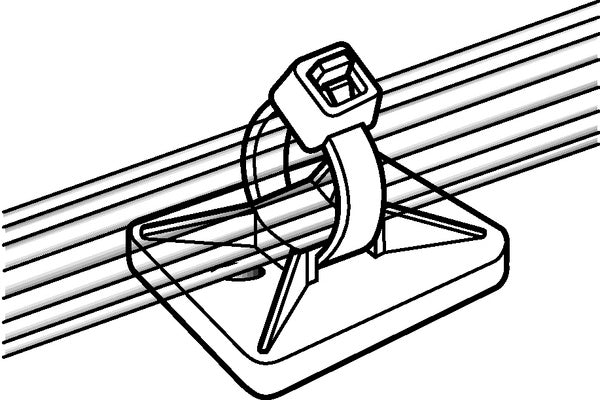

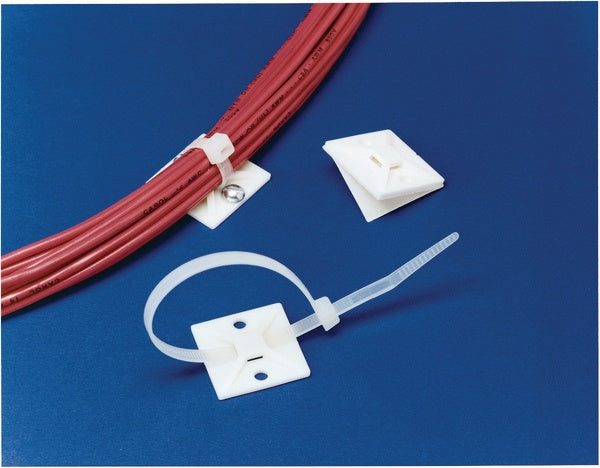

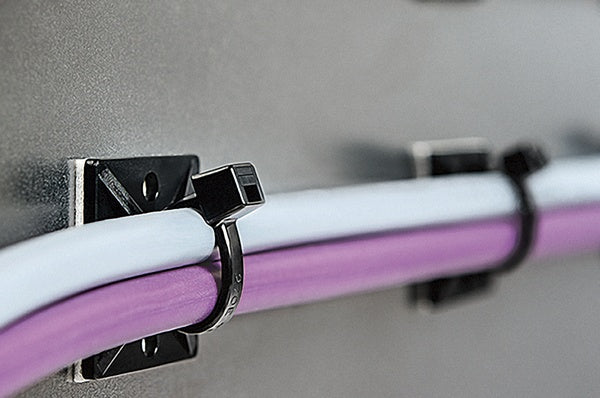

HellermannTyton adhesive fastened mounting bases are used with 18 through 150 pound cable ties to provide stability when securing bundles. The mounts are installed using the adhesive backing and/or by securing two or four screws. The 4 way opening allo ws the cable ties to be inserted parallel or perpendicular to the wire bundles.

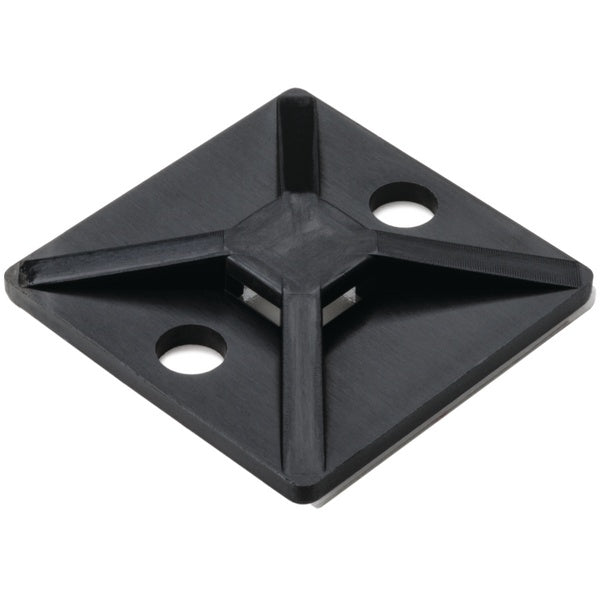

MB4A adhesive mounts are for use with HellermannTyton T18 - T50 Series cable ties to provide stability when securing bundles. The high-bond acrylic adhesive-backed mounts can be used to secure a bundle and have two predrilled holes to extend mounting options.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-00646 - Features
- For use with 18 and 30 pound cable ties to provide stability when securing bundles.
- Secures with rubber based adhesive backing and/or two or four screws.
- 4 way opening allows cable ties to be installed parallel or perpendicular to wire bundles.
- All-in-one bundling and fastening solution reduces costs and assembly time.
- Anti-rotational oval fastener forces bundle to travel in intended direction.
- High-spec materials and superior design deliver excellent performance and value.
Specifications
Specifications
HellermannTyton - 151-00646 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Cable Tie Mounts
- Adhesive Mounting Bases
HellermannTyton - 151-00646 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-00646 - Base Data
| Article Number | 151-00646 |
|---|---|
| Type | MB4A |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | High Bond Acrylic Adh Cable Tie Mount, 1.12" x 1.12", Use T18-T50 Cable Tie, PA66UV, Black, 500/pkg |
| Global Part Name | MB4A-PA66UV-BK |
HellermannTyton - 151-00646 - Product Dimensions
| Length L (Imperial) | 1.12 |
|---|---|
| Length L (Metric) | 28.5 |
| Fixation Method | Screw Mounting and Adhesive |
| Width W (Imperial) | 1.12 |
| Width W (Metric) | 28.5 |
| Cable Ties | T18 - T50 |
| Height H (Imperial) | 0.23 |
| Height H (Metric) | 5.8 |
| Cable Tie Width Max (Imperial) | 0.18 |
| Cable Tie Width Max (Metric) | 4.6 |
| Mounting Hole Diameter D (Imperial) | 0.18 |
| Mounting Hole Diameter D (Metric) | 4.6 mm |
| Mounting Hole Diameter D Max (Metric) | 4.6 |
| Mounting Hole Centers (Imperial) | 0.8 |
HellermannTyton - 151-00646 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-00646 - Materials & Specifications
| Material | Polyamide 6.6 UV-resistant (PA66UV) |
|---|---|
| Material Shortcut | PA66UV |
| Adhesive | Acrylate with base of acrylic foam |
| Flammability | UL 94 V-2 (excluding adhesive) |
| UV Resistant (Yes/No) | Yes |
| Adhesive Operating Temperature | -31°F to +158°F (-35 °C to +70 °C) |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
