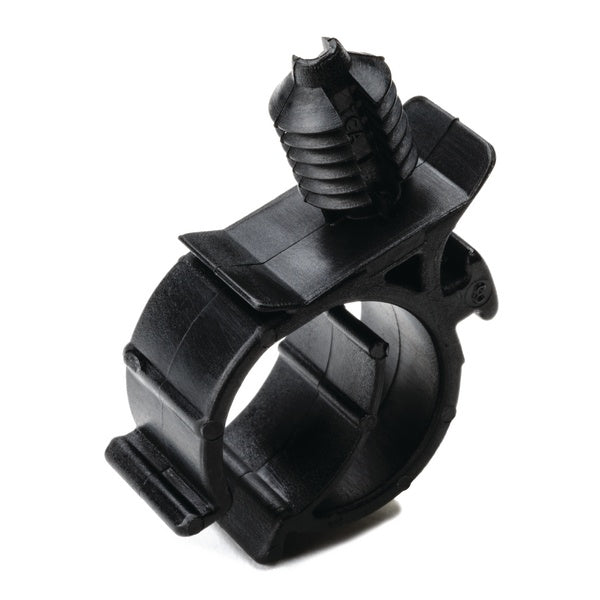

HellermannTyton 151-00783 | Side Convoluted Tubing Clip, Max Bundle Diameter .6", Pa66Hirhs, Black, 5000/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-00783 | Side Convoluted Tubing Clip, Max Bundle...
Description
Description

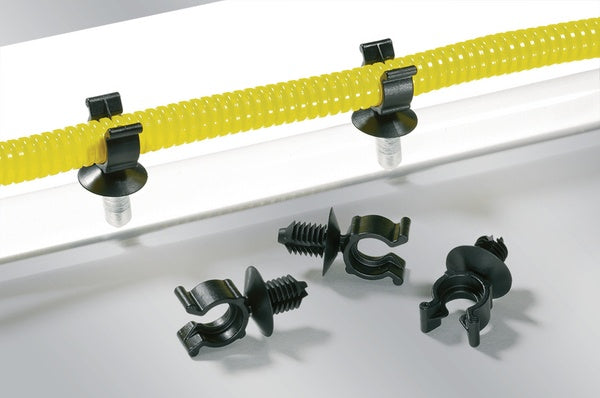

Convoluted Tube Clips provide a quick and easy method for firmly securing corrugated covered cables and wires to a surface. Applications such as this can be found in a wide variety of industries such as the wire harness, automotive, trucking, and heavy equipment manufacturing industries.
Convoluted Tube Clips provide a quick and easy method for firmly securing corrugated covered cables and wires to a surface. Applications such as this can be found in a wide variety of industries such as the wire harness, automotive, trucking, and heavy equipment manufacturing industries.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-00783 - Features

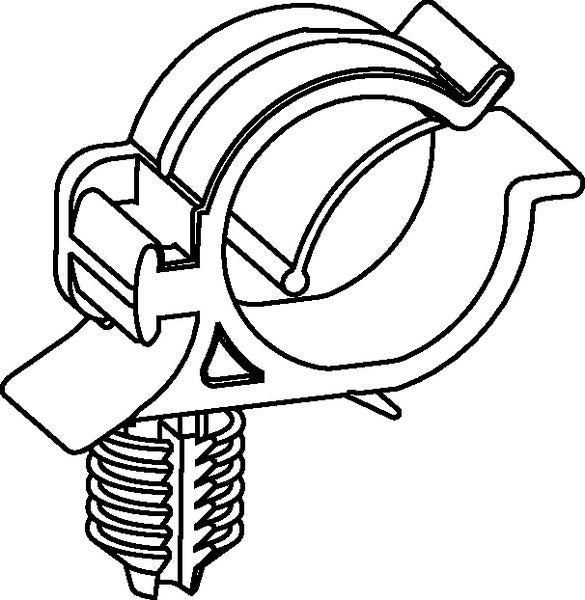

- Clip includes an internal rib that spans the inside of the bracket to fit securely into the profile of the tubing to prevent lateral movement and slipping of the tubing.
- Extended fir tree allows for a wide range of panel thicknesses.
- Fir tree design provides low insertion forces and high extraction forces.
- One-piece ratchet closure allows for easy installation during pre- or final assembly.
- Easy release feature simplifies quick adjustments and maintenance.
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
- Stainless steel mounting plate tolerates high torque and provides superior corrosion resistance against chemicals, salt spray and contact with dissimilar metals.
- Straight, 180° mounting plate is ideal for applications requiring a flush mount set off from the mounting hole.
Specifications
Specifications
HellermannTyton - 151-00783 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Fir Tree Clips
HellermannTyton - 151-00783 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Mounting Hole/Thread Dia | 0.6 |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-00783 - Base Data
| Article Number | 151-00783 |
|---|---|
| Type | CTCFT6 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Side Convoluted Tubing Clip, Max Bundle Diameter .6", PA66HIRHS, Black, 5000/pkg |
| Global Part Name | CTCFT6-PA66HIRHS-BK |
HellermannTyton - 151-00783 - Product Dimensions
| Length L (Imperial) | 0.43 |
|---|---|
| Length L (Metric) | 11 |
| Fixation Method | Fir Tree |
| Variant | Clips |
| Width W (Imperial) | 0.43 |
| Width W (Metric) | 11 |
| Bundle Diameter Min (Imperial) | 0.43 |
| Bundle Diameter Min (Metric) | 11 |
| Bundle Diameter Max (Imperial) | 0.59 |
| Bundle Diameter Max (Metric) | 15 |
| Height H (Imperial) | 0.73 |
| Height H (Metric) | 18.5 |
| Nominal Diameter (Imperial) | 1.56 |
| Nominal Diameter (Metric) | 15 |
| Panel Thickness Min (Imperial) | 0.03 |
| Panel Thickness Max (Imperial) | 0.18 |
| Panel Thickness Min (Metric) | 0.7 |
| Panel Thickness Max (Metric) | 4.5 |
| Mounting Hole Diameter D (Imperial) | 0.25 - 0.28 |
| Mounting Hole Diameter D (Metric) | 6.3 - 6.7 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.25 |
| Mounting Hole Diameter D Max (Imperial) | 0.26 |
| Mounting Hole Diameter D Max (Metric) | 6.7 |
HellermannTyton - 151-00783 - Logistic & Packaging
| Package Quantity (Imperial) | 5003 |
|---|---|
| Package Quantity (Metric) | 5000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-00783 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
