HellermannTyton 151-00814 | H-Mount For 0.75" Standard Bolts A...
Description
Description

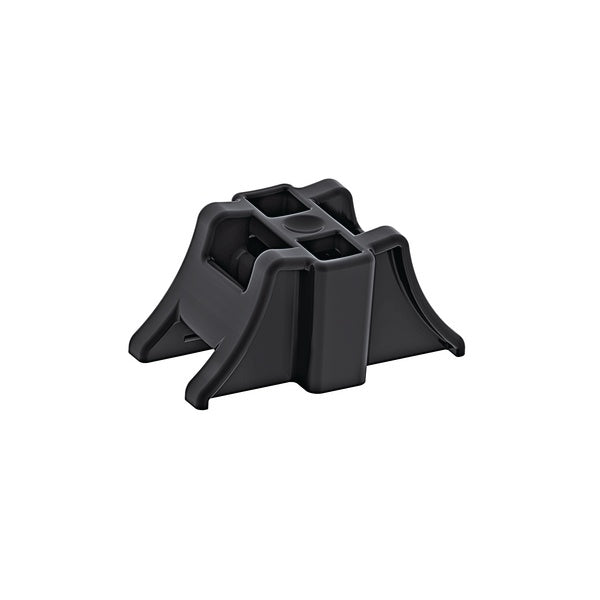

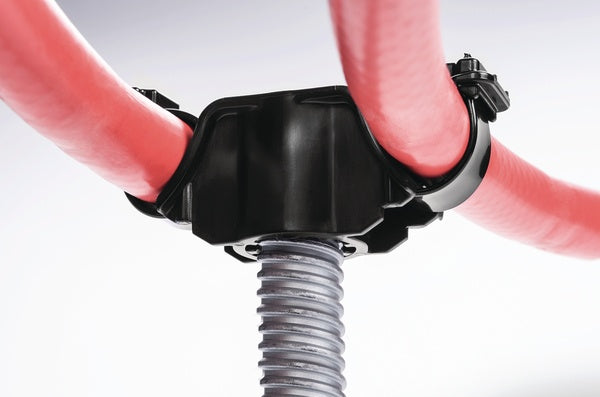

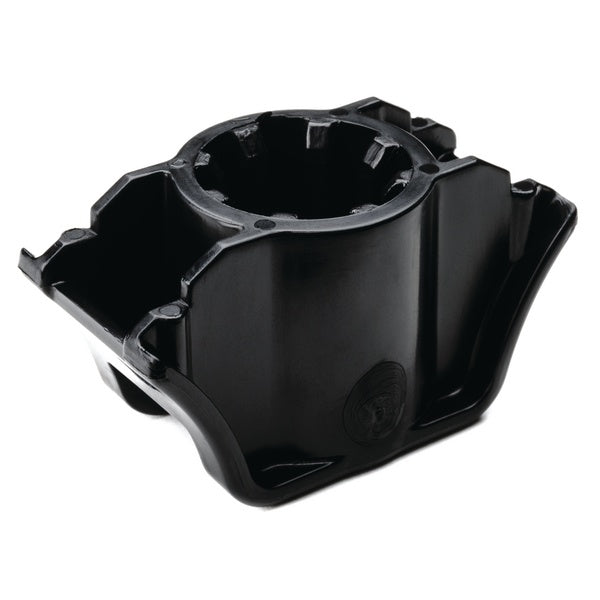

HellermannTyton H-Mounts offer a secure bundling solution that utilizes existing frame rail bolts which reduces component costs and improves installation time. The H-mounts have three bundle mounting locations each accommodating ties up to 1/2" wide. H -Mounts fasten with three bolt sizes: 1/2", 5/8", and 3/4". The top tie slot allows the bundle to be positioned directly over the bolt. The two curved tie slots on the sides position the bundles adjacent to the bolt yet away from the frame.
HellermannTyton H-Mounts offer a secure bundling solution that utilizes existing frame rail bolts which reduces component costs and improves installation time. The H-mounts have three bundle mounting locations each accommodating ties up to 1/2" wide. H-Mounts fasten with three bolt sizes: 1/2", 5/8", and 3/4". The top tie slot allows the bundle to be positioned directly over the bolt. The two curved tie slots on the sides position the bundles adjacent to the bolt yet away from the frame.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-00814 - Features
- H-Mounts utilize existing frame rail bolts eliminating the need for additional fasteners.
- When used with cable ties, the H-Mounts eliminate the need to carry multiple sizes of fixed bundle diameter clamps which reduces inventory and purchasing costs.
- Top tie slot allows bundles to be positioned in up to three locations, to provide multiple use options.
- Side tie slots are are curved to minimize bundle abrasion and position the bundles adjacent to the bolt yet away from the frame.
- External NPT thread provides a secure connection.
- Twist-on installation makes future access fast and easy.
- Internal spigot design helps ease threading of fitting onto conduit.
- All-around “teeth” attach firmly to conduit and deliver a high extraction force.
- Durable nylon material has high resistance to salts, oils, weak acids and solvents.
- IP65 rating for protection against wind, dirt and low pressure jets of water from all directions.
Specifications
Specifications
HellermannTyton - 151-00814 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Heavy Duty Cable Tie Mounts
- Stud Bolt Mounts
HellermannTyton - 151-00814 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .750 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-00814 - Base Data
| Article Number | 151-00814 |
|---|---|
| Type | HM7 |
| Color | Black (BK) |
| Quantity Per | box |
| Short Description | H-Mount for 0.75" standard bolts and Huck-Spin bolts, PA66HIRHSUV, Black, 900/pkg |
| Global Part Name | HM7-PA66HIRHSUV-BK |
HellermannTyton - 151-00814 - Product Dimensions
| Length L (Imperial) | 1.97 |
|---|---|
| Length L (Metric) | 50 |
| Fixation Method | thread-bolt |
| Width W (Imperial) | 1.02 |
| Width W (Metric) | 25.98 |
| Height H (Imperial) | 1.1 |
| Height H (Metric) | 28 |
| Cable Tie Width Max (Imperial) | 0.052 |
| Cable Tie Width Max (Metric) | 13.2 |
| Bolt Size | 3/4 " |
| Stud Diameter (Metric) | 19.05 mm |
| Stud Diamater (Imperial) | 0.75 |
HellermannTyton - 151-00814 - Logistic & Packaging
| Package Quantity (Imperial) | 900 |
|---|---|
| Package Quantity (Metric) | 900 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-00814 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
