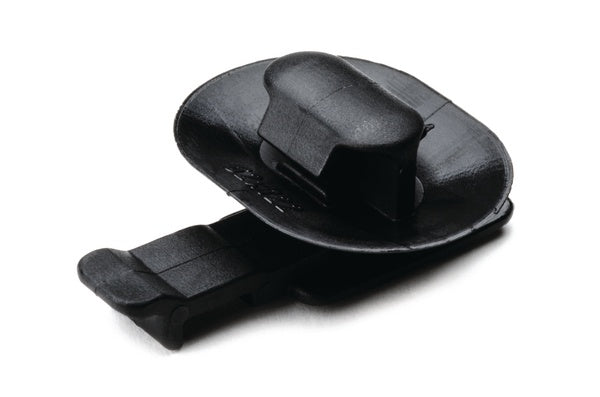

HellermannTyton 151-00835 | Connector Clip, 0.7 - 1.3 mm Panel Thickness, 6.2 x 12.2 mm Hole Dia, PA66HIRHS, Black, 10,000/box
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-00835 | Connector Clip, 0.7 - 1.3 mm Panel Thic...
Description
Description

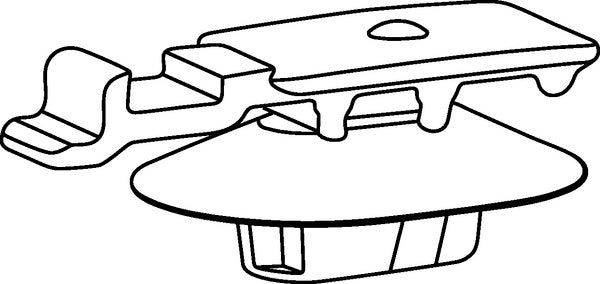

Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so m any configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-00835 - Features
- Head design contains clamping rails to provide full circumferential compression around bundles.
- Bent tail allows for quick insertion into head.
- Premium-quality TT4030 printer is designed for medium- and heavy-duty industrial applications.
- Print accuracy, consistency, speed, and power are best in class.
- 300 dpi print head fulfills all standard requirements for printing bar codes, warning signs, logos, and written information.
- Easily prints high-definition graphics such as 2D barcodes, standard bar codes, numbers, and text on adhesive labels, thermo plastics such as heat shrink and Tiptags.
- Print speeds up to 300 mm per second are possible dependent on the material you wish to print.
- Standard adjustments are carried out with the on-board tool and this ensures operator down time is kept to a minimum.
- The exceptionally durable print head is of the highest quality and as such has a warranty of 24 months or 50 km (whichever comes first) in thermal transfer mode.
- Optional premium quality accessories are designed to work seamlessly with the printer and will suit the most demanding needs.
Specifications
Specifications
HellermannTyton - 151-00835 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Fir Tree Clips
HellermannTyton - 151-00835 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-00835 - Base Data
| Article Number | 151-00835 |
|---|---|
| Type | YCCKSFT62x122PT0.7-1.3 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Connector Clip, 0.7 - 1.3 mm Panel Thickness, 6.2 x 12.2 mm Hole Dia., PA66HIRHS, Black, 10,000/box |
| Global Part Name | YCCKSFT62x122PT0.7-1.3-PA66HIRHS-BK |
HellermannTyton - 151-00835 - Product Dimensions
| Length L (Metric) | 27 |
|---|---|
| Width W (Metric) | 16 |
| Height H (Metric) | 11.4 |
| Panel Thickness Min (Imperial) | 0.028 |
| Panel Thickness Max (Imperial) | 0.05 |
| Panel Thickness Min (Metric) | 0.7 |
| Panel Thickness Max (Metric) | 1.3 |
| Mounting Hole Diameter D (Imperial) | 0.24 - 0.48 |
| Mounting Hole Diameter D (Metric) | 6.2 x 12.2 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.24 |
| Mounting Hole Diameter D Max (Imperial) | 0.48 |
| Mounting Hole Diameter D Max (Metric) | 12.2 |
HellermannTyton - 151-00835 - Logistic & Packaging
| Package Quantity (Imperial) | 10000 |
|---|---|
| Package Quantity (Metric) | 10000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-00835 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
