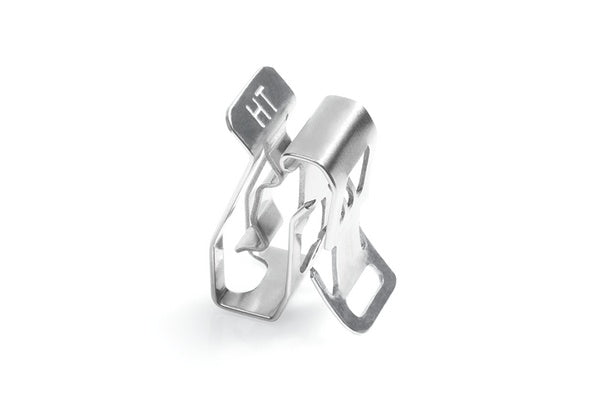

HellermannTyton 151-00982 | Heavy Duty Metal Edge Clip, 1–3Mm Panel Thickness, 5–7.6Mm Cable Range, Ss304, 100/Bg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description

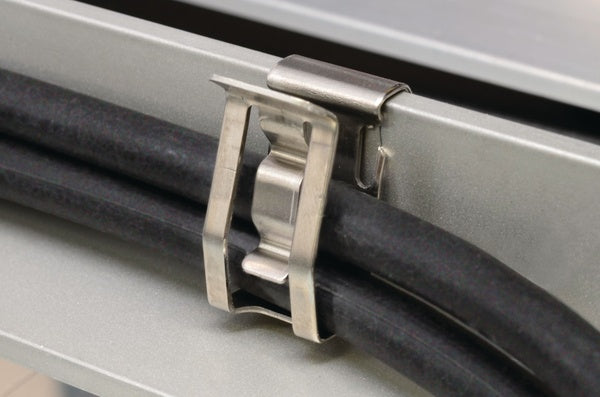

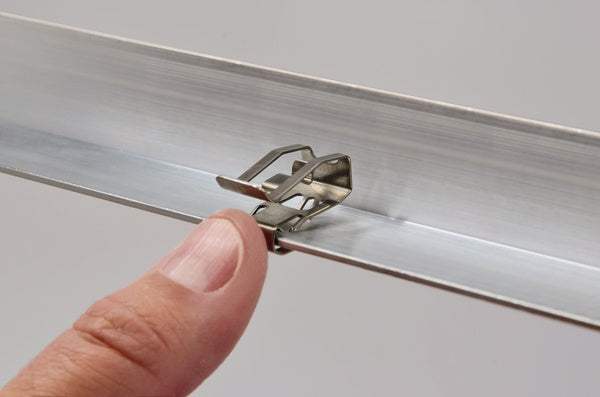

HellermannTyton’s Heavy Duty Metal Edge Clip provides an excellent alternative to managing wire and PV cables where plastic fasteners are not the preferred method. Designed for effortless insertion, the Heavy Duty Edge Clip has a high extraction force that tolerates extreme environments and provides assurance that the cables are secure on a panel. This Metal Edge Clip is simple to install and can easily be removed with a flathead screwdriver.
HellermannTyton's Heavy Duty Metal Edge Clip provides an excellent alternative to managing up to 2 wire and PV cables where plastic fasteners are not the preferred method. Designed for effortless insertion, the Heavy Duty Edge Clip has a high extraction force that tolerates extreme environments and provides assurance that the cables are secure on a panel. This Metal Edge Clip is simple to install and can easily be removed with a flathead screwdriver.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-00982 - Features
- Integrated design allows for easy insertion by hand.
- 1-3mm panel thickness range allows for multiple applications.
- Double-compression design that accommodates various sizes of wire and cable.
- Presents a high extraction force for withstanding extreme cnditions.
- Tamper resistant covers with hidden latch provide security while allowing quick entry for cable maintenance.
- PVC construction is lightweight, durable and more affordable than metallic raceway systems.
- Flexible hinge is designed to reduce stress cracking and discoloration from repeated opening and closing.
- Systems and fittings are available in white, office white and ivory to coordinate with a variety of décor.
- Fittings incorporate a minimum 1" bend radius to meet TIA/EIA 568-B and 569-A standards.
Specifications
Specifications
HellermannTyton - 151-00982 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Edge Clips
HellermannTyton - 151-00982 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Material | Plastic |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-00982 - Base Data
| Article Number | 151-00982 |
|---|---|
| Type | MSC2 |
| Color | Metal (ML) |
| Quantity Per | bag |
| Short Description | Heavy Duty Metal Edge Clip, 1–3mm Panel Thickness, 5–7.6mm Cable Range, SS304, 100/bg |
| Global Part Name | MSC2-SS304-ML |
HellermannTyton - 151-00982 - Product Dimensions
| Length L (Imperial) | 0.95 |
|---|---|
| Length L (Metric) | 24.1 |
| Width W (Imperial) | 0.5 |
| Width W (Metric) | 13 |
| Bundle Diameter Min (Imperial) | 0.2 |
| Bundle Diameter Min (Metric) | 5 |
| Bundle Diameter Max (Imperial) | 0.3 |
| Bundle Diameter Max (Metric) | 7.6 |
| Depth D (Imperial) | 0.861 |
| Depth D (Metric) | 21.9 |
| Panel Thickness Min (Imperial) | 0.04 |
| Panel Thickness Max (Imperial) | 0.12 |
| Panel Thickness Min (Metric) | 1 |
| Panel Thickness Max (Metric) | 3 |
HellermannTyton - 151-00982 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 7.33E+09 |
HellermannTyton - 151-00982 - Materials & Specifications
| Material | Stainless Steel (SS304) |
|---|---|
| Material Shortcut | SS304 |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -112°F to +1000°F (-80°C to +538°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| UL Recognized (US) | Yes |
| UL Listed (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Listed (US) | Yes |
