Description
Description

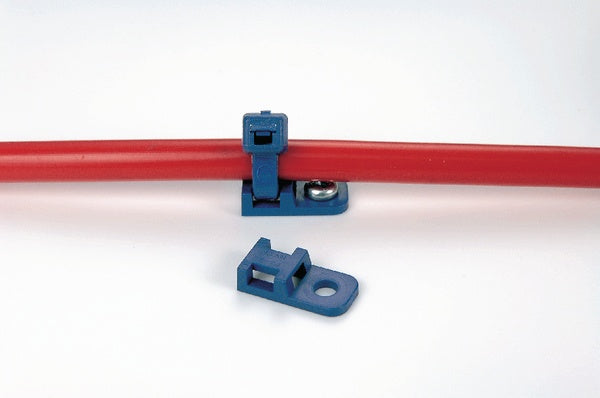

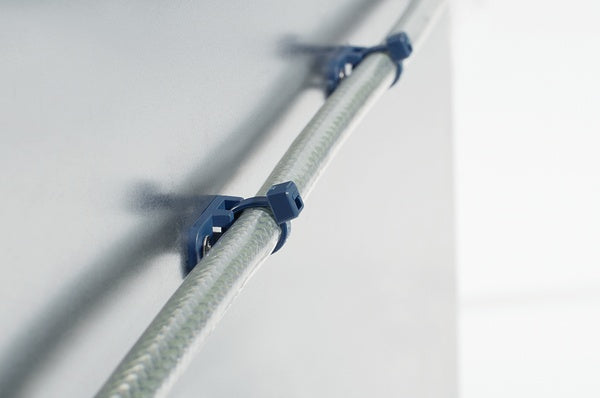

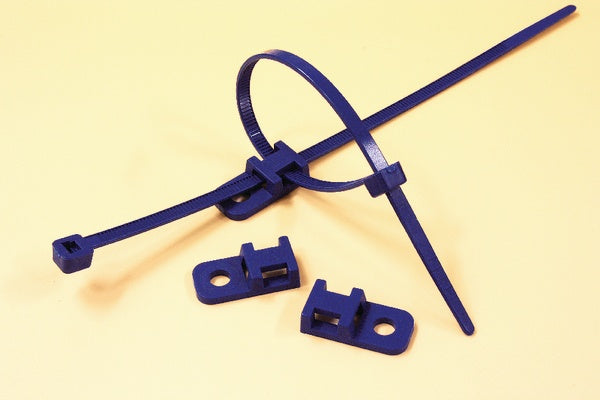

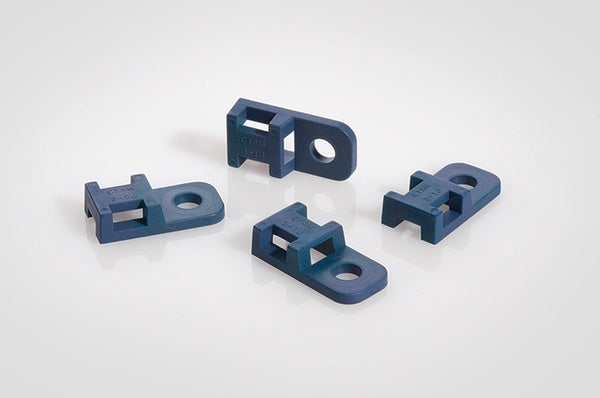

Anchor mounts for cable ties are suitable for applications with minimal space. The four-way entry design allows cable ties to be used either inline or perpendicular to the cable run. The blue color and metal content allow for visual, metal and X-ray de tection in industries that are sensitive to contamination.
The MCCTAM1 anchor mounts are for use with HellermannTyton MCT18 - MCT50 Series cable ties to provide stability when securing bundles. The Metal Content Mount is specifically designed for the food, beverage and pharmaceutical processing industries to meet the safety standards set by the Hazardous Analysis of Critical Control Point (HACCP). The mount is nylon-based with metal content dispersed throughout allowing for the part to be identified by metal detectors or X-ray inspections, reducing the risk of contamination.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-00997 - Features
- Suitable for applications with minimal space.
- Designed for use with MCT18 - MCT50 Series Cable Ties.
- 4-way entry design for use inline or at 90 angle to cable run.
- Secures with a single screw providing quick installation.
- Metal content dispersed thrghout the mount helps improve identification when using metal detectors and X-ray machines.
Specifications
Specifications
HellermannTyton - 151-00997 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Cable Tie Mounts
- Screw Mounting Bases
HellermannTyton - 151-00997 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cable Tie - Mount, Self Adhesive |
| UNSPSC Code | 39121703 |
HellermannTyton - 151-00997 - Base Data
| Article Number | 151-00997 |
|---|---|
| Type | MCCTAM1 |
| Color | Blue (BU) |
| Quantity Per | bag |
| Short Description | Metal Content Cable Tie Anchor Mount, 0.81" Hole Dia., 0.20" Max Tie Width, PA66MP+, Blue, 100/pkg |
| Global Part Name | MCCTAM1-PA66MP+-BU |
HellermannTyton - 151-00997 - Product Dimensions
| Length L (Imperial) | 0.81 |
|---|---|
| Length L (Metric) | 20.7 |
| Fixation Method | Screw Mounting and Rivet |
| Width W (Imperial) | 0.41 |
| Width W (Metric) | 10.3 |
| Cable Ties | MCT18 - MCT50 |
| Height H (Imperial) | 0.2 |
| Height H (Metric) | 5.1 |
| Cable Tie Width Max (Imperial) | 0.2 |
| Cable Tie Width Max (Metric) | 5.2 |
| Mounting Hole Diameter D (Imperial) | 0.17 |
| Mounting Hole Diameter D (Metric) | 4.3 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.17 |
| Mounting Hole Diameter D Max (Imperial) | 0.17 |
| Mounting Hole Diameter D Max (Metric) | 4.3 |
HellermannTyton - 151-00997 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-00997 - Materials & Specifications
| Material | Polyamide 6.6, with metal particles (PA66MP+) |
|---|---|
| Material Shortcut | PA66MP+ |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
