HellermannTyton 151-01020 | Cable Tie Anchor Mount, 0.98" x 0.47", .20" Hole Dia, 0.33" Max Tie Width, PA66MP, Blue, 100/Package
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-01020 | Cable Tie Anchor Mount, 0.98" x 0....
Description
Description

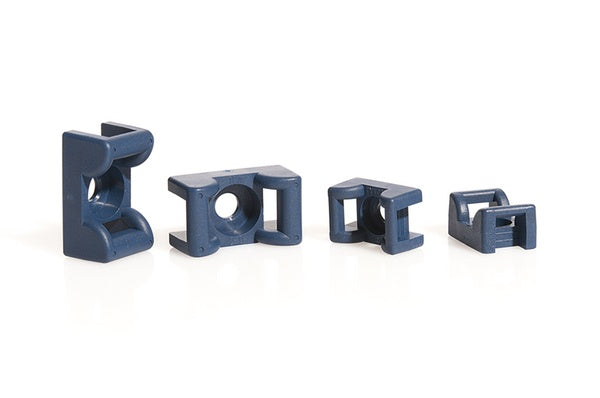

Anchor mounts for cable ties are suitable for applications with minimal space. They secure with a single screw for quick installation. The blue color and metal content allow for visual, metal and X-ray detection in industries that are sensitive to cont amination.

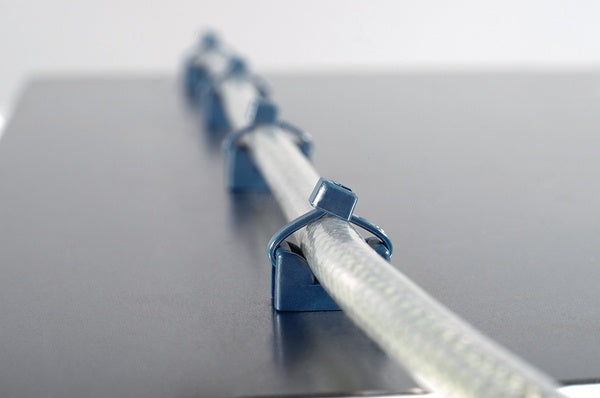

Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacture. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm width.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01020 - Features
- Designed for use with MCT18 - MCT120 Series Cable Ties.
- Secures with a single screw providing quick installation.
- Metal content dispersed throughout the mount helps improve identification when using metal detectors and X-ray machines.
- KR/CTM series are designed to provide stability to wire bundles.
- These mounts can accommodate miniature, intermediate, or standard cross-section cable ties.
- Each mount is secured with a single screw.
Specifications
Specifications
HellermannTyton - 151-01020 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Cable Tie Mounts
- Screw Mounting Bases
HellermannTyton - 151-01020 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cable Tie - Mount, Self Adhesive |
| UNSPSC Code | 39121703 |
HellermannTyton - 151-01020 - Base Data
| Article Number | 151-01020 |
|---|---|
| Type | MCKR8G5-5 |
| Color | Blue (BU) |
| Quantity Per | bag |
| Short Description | Metal Cnt Cable Tie Anchor Mnt, 0.98"x.57", 0.2" Hole Dia, 0.33" Max Tie Width, PA66MP+, Blue, 100/pkg |
| Global Part Name | MCKR8G5-5-PA66MP+-BU |

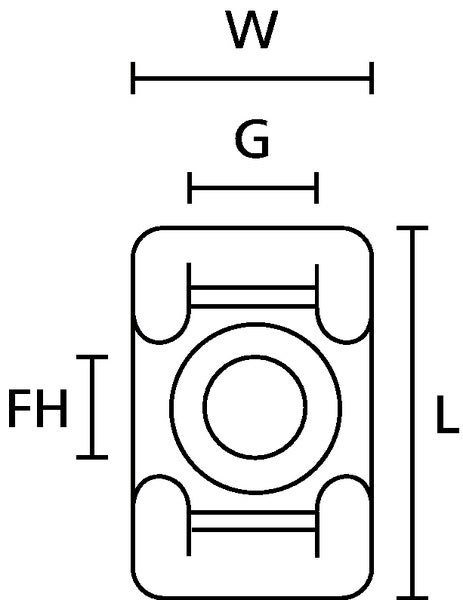

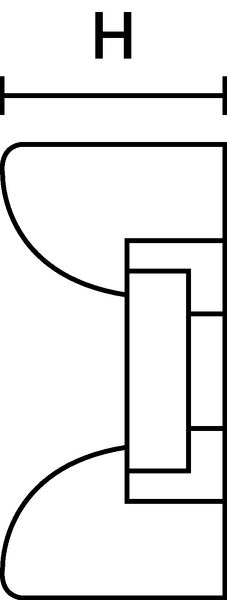

HellermannTyton - 151-01020 - Product Dimensions
| Length L (Imperial) | 0.98 |
|---|---|
| Length L (Metric) | 25 |
| Fixation Method | Screw Mounting and Rivet |
| Width W (Imperial) | 0.57 |
| Width W (Metric) | 14.5 |
| Cable Ties | MCT18 - MCT120 |
| Height H (Imperial) | 0.47 |
| Height H (Metric) | 12 |
| Cable Tie Width Max (Imperial) | 0.33 |
| Cable Tie Width Max (Metric) | 8.3 |
| Mounting Hole Diameter D (Imperial) | 0.2 |
| Mounting Hole Diameter D (Metric) | 5.1 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.2 |
| Mounting Hole Diameter D Max (Imperial) | 0.2 |
| Mounting Hole Diameter D Max (Metric) | 5.1 |
HellermannTyton - 151-01020 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-01020 - Materials & Specifications
| Material | Polyamide 6.6, with metal particles (PA66MP+) |
|---|---|
| Material Shortcut | PA66MP+ |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
