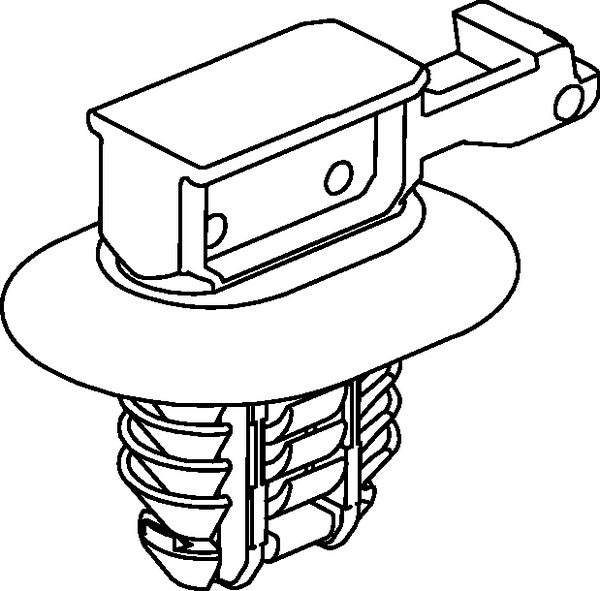

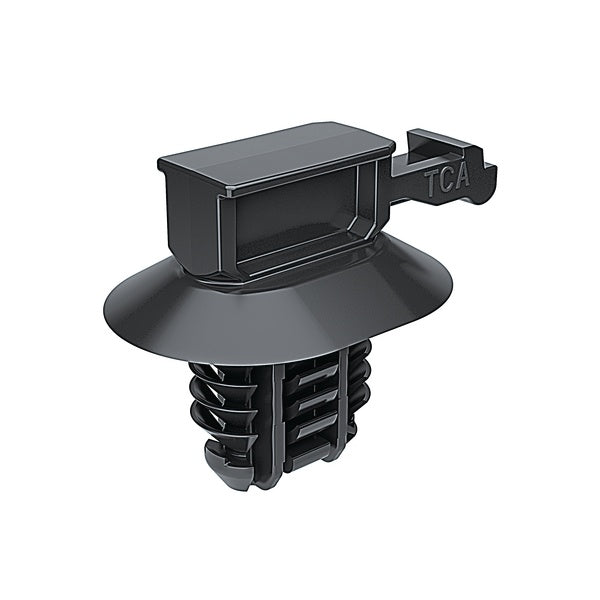

HellermannTyton 151-01108 | Conn. Clip With Oval Fir Tree, 0.6-6.0Mm Panel Thick, 6.2–13.0Mm Hole Dia, Pa66Hirhsuv, Black, 5000/Ctn
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-01108 | Conn. Clip With Oval Fir Tree, 0.6-6.0M...
Description
Description
Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so m any configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01108 - Features
- Head design contains clamping rails to provide full circumferential compression around bundles.
- Bent tail allows for quick insertion into head.
- One-piece ratchet closure allows for easy installation during pre- or final assembly.
- Easy release feature simplifies quick adjustments and maintenance.
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
- Stainless steel mounting plate tolerates high torque and provides superior corrosion resistance against chemicals, salt spray and contact with dissimilar metals.
- Straight, 180° mounting plate is ideal for applications requiring a flush mount set off from the mounting hole.
Specifications
Specifications
HellermannTyton - 151-01108 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Connector Clips
HellermannTyton - 151-01108 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-01108 - Base Data
| Article Number | 151-01108 |
|---|---|
| Type | CCOVAL2 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Conn. Clip w/Oval Fir Tree, 0.6-6.0mm Panel Thick, 6.2–13.0mm Hole Dia, PA66HIRHSUV, Black, 5000/ctn |
| Global Part Name | CCOVAL2-PA66HIRHSUV-BK |
HellermannTyton - 151-01108 - Product Dimensions
| Length L (Imperial) | 1.14 |
|---|---|
| Length L (Metric) | 29 |
| Fixation Method | Fir Tree for oval holes |
| Variant | 6.2 x 12.2 mm6.5 x 12.5 mm6.5 x 13.0 mm7.0 x 12.0 mm |
| Width W (Imperial) | 0.69 |
| Width W (Metric) | 17.6 |
| Height H (Imperial) | 0.8 |
| Height H (Metric) | 22.35 |
| Panel Thickness Min (Imperial) | 0.02 |
| Panel Thickness Max (Imperial) | 0.24 |
| Panel Thickness Min (Metric) | 0.6 |
| Panel Thickness Max (Metric) | 6 |
| Mounting Hole Diameter D (Imperial) | 0.24 x 0.48 "0.25 x 0.50 "0.25 x 0.50 "0.27 x 0.47 |
| Mounting Hole Diameter D (Metric) | 6.5 x 12.5 mm7.0 x 12.0 mm6.2 x 12.2 mm6.5 x 13.0 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.24 |
| Mounting Hole Diameter D Max (Imperial) | 0.51 |
| Mounting Hole Diameter D Max (Metric) | 13 |
HellermannTyton - 151-01108 - Logistic & Packaging
| Package Quantity (Imperial) | 5000 |
|---|---|
| Package Quantity (Metric) | 5000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-01108 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
