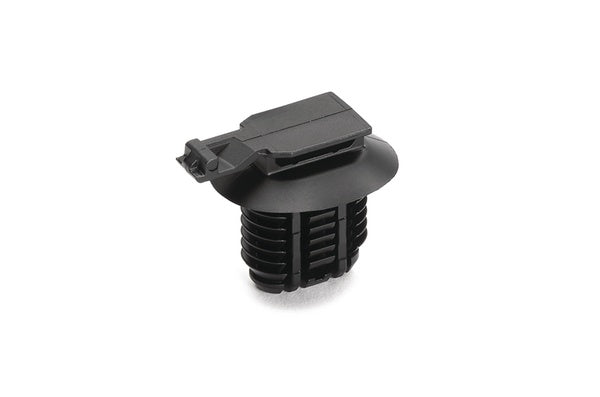

HellermannTyton 151-01296 | Connector Clip, Mounting Hole Dia. 9.0-17.0mm, PA66HIRHS, Black, 3000/carton
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-01296 | Connector Clip, Mounting Hole Dia. 9.0-...
Description
Description
Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so m any configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01296 - Features
- HellermannTyton connector clips provide a simple and easy method for mounting connectors to a mounting surface in a variety of applications.
- Detailed designs include anti-rattle disc features, anti-rotation oval fir trees, and clamps for mounting on e dges.
- HellermannTyton offers an assortment of connector clips that are available for a variety of connector slot designs found on most of the largest global connector manufacturers.
Specifications
Specifications
HellermannTyton - 151-01296 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Connector Clips
HellermannTyton - 151-01296 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Rohs Compliant | Not Declared |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-01296 - Base Data
| Article Number | 151-01296 |
|---|---|
| Type | CC18 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Connector Clip, 9.0–17.0mm Hole Dia., PA66HIRHSUV, Black, 3000/carton |
| Global Part Name | CC18-PA66HIRHSUV-BK |
HellermannTyton - 151-01296 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 35 |
|---|---|
| Minimum Tensile Strength (Metric) | 155 |
| Length L (Imperial) | 1.19 |
| Length L (Metric) | 30.29 |
| Fixation Method | Fir Tree |
| Width W (Imperial) | 0.8 |
| Width W (Metric) | 20.32 |
| Height H (Imperial) | 0.93 |
| Height H (Metric) | 23.57 |
| Panel Thickness Min (Imperial) | 0.02 |
| Panel Thickness Max (Imperial) | 0.37 |
| Panel Thickness Min (Metric) | 0.51 |
| Panel Thickness Max (Metric) | 9.5 |
| Mounting Hole Diameter D (Imperial) | 0.35 x 0.67 |
| Mounting Hole Diameter D (Metric) | 9.0 x 17.0 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.35 |
| Mounting Hole Diameter D Max (Imperial) | 0.67 |
| Mounting Hole Diameter D Max (Metric) | 17 |
HellermannTyton - 151-01296 - Logistic & Packaging
| Package Quantity (Imperial) | 3000 |
|---|---|
| Package Quantity (Metric) | 3000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-01296 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
