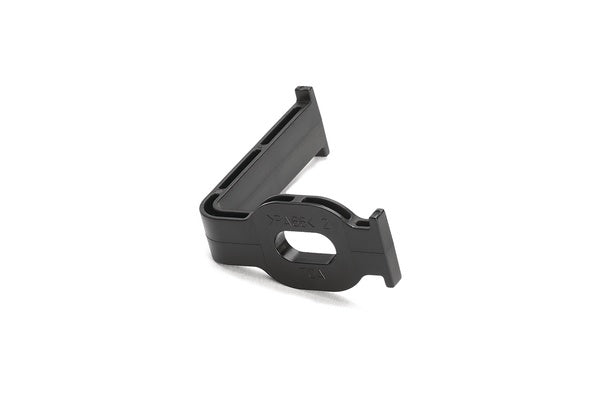

HellermannTyton 151-01311 | Bundling Clip, 90 Deg with 6.5x12.5 Oval Hole, 40mm Long, PA66HIRHSUV, Black, 4000/ctn
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-01311 | Bundling Clip, 90 Deg with 6.5x12.5 Ova...
Description
Description
HellermannTyton’s bundling clips allow a harness to be routed around a corner and attached to the panel at this location.
HellermannTyton's bundling clips allow a harness to be routed around a corner and attached to the panel at this location.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01311 - Features
- Bundling clip allows bundle to be parallel, perpendicular or offset from the panel and mounting hole for routing versatility.
- Compact I-beam design provides a robust solution for all bundles, small to large.
- Used in conjunction with HellermannTyton’s 4x oval push pins, bundling clip prevents rotation of the bundle.
- Oval hole can also be used as a portable hole joining two routings together.
Specifications
Specifications
HellermannTyton - 151-01311 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Bundling Clips
HellermannTyton - 151-01311 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-01311 - Base Data
| Article Number | 151-01311 |
|---|---|
| Type | TC90OVAL |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Bundling Clip, 90 Deg with 6.5x12.5 Oval Hole, 40mm Long, PA66HIRHSUV, Black, 4000/ctn |
| Global Part Name | TC90OVAL-PA66HIRHSUV-BK |

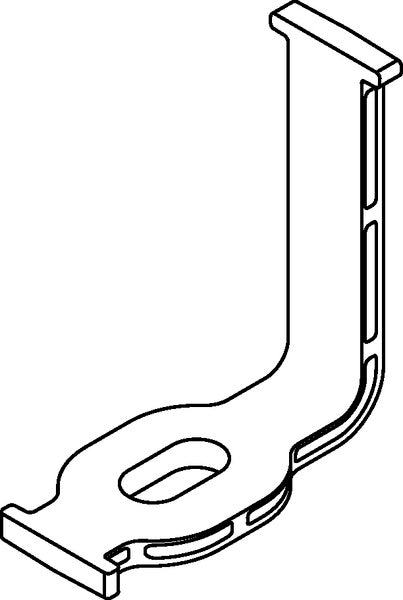

HellermannTyton - 151-01311 - Product Dimensions
| Length L (Imperial) | 1.47 |
|---|---|
| Length L (Metric) | 37.3 |
| Fixation Method | Bolt |
| Width W (Imperial) | 0.59 |
| Width W (Metric) | 15 |
| Height H (Imperial) | 1.66 |
| Height H (Metric) | 40.8 |
| Mounting Hole Diameter D (Imperial) | 0.27 x 0.51 |
| Mounting Hole Diameter D (Metric) | 6.5 x 12.5 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.27 |
| Mounting Hole Diameter D Max (Imperial) | 0.51 |
| Mounting Hole Diameter D Max (Metric) | 12.5 |
HellermannTyton - 151-01311 - Logistic & Packaging
| Package Quantity (Imperial) | 4000 |
|---|---|
| Package Quantity (Metric) | 4000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-01311 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
