HellermannTyton 151-01455 | Clamp, Bundle Diameter - Minimum 19.5 m...
Description
Description

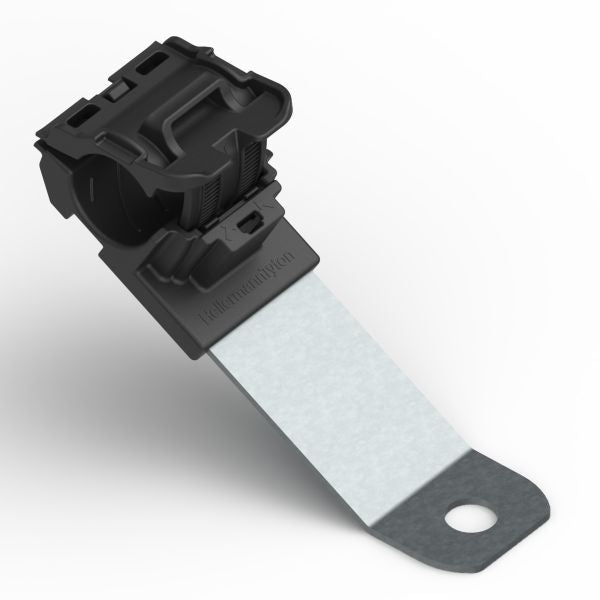

The Ratchet P-clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy-duty applications, both indoors and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws.
Specifications
Specifications
HellermannTyton - 151-01455 - Product Categories
- Enclosures and Cable Routing
- Conduit and Cable Support
- Cable and Conduit Fasteners
- Cable Clips and Clamps
HellermannTyton - 151-01455 - Specifications
| Manufacturer Name | HellermannTyton |
|---|---|
| Manufacturer Part Number | 151-01455 |
| Item Description | Clamp, Bundle Diameter - Minimum 19.5 mm, Bundle Diameter - Maximum 12.7 mm |
| APPROVALS | NONE |
| Angle | 30 Degree |
| Bundle Diameter - Maximum | 12.7 mm |
| Bundle Diameter - Minimum | 19.5 mm |
| Bundle Diameter Max | 19.5mm |
| Bundle Diameter Min | 12.7mm |
| CATEGORY | CLIPS AND CLAMPS |
| Color | Black |
| Length | 103.2 mm |
| Material | Polyamide 6.6 |
| Mounting Hole Diameter | 10.29mm |
| Outdoor Use | Yes |
| Product Type | Clamp |
| QUALITY STANDARD | COMMERCIAL RELEASE |
| ROHS COMPLIANT | NOT DECLARED |
| Special Rating | ELV compliant (Article 4 - 2); Flammability UL 94 HB; Halogen-free; HF; Plenum Rating AH-2; cULUS; UV-Stabilised; ; UL Listed (US and Canada); UL-File Number E64139 |
| Strap Width (G) - Maximum | 0.52 in. |
| Temperature Max | 105 C |
| Temperature Min | -40 C |
| Temperature Rating - Maximum | 105° C |
| Temperature Rating - Minimum | -40° C |
| Tensile Strength - Minimum | 445 N |
| Tie Width (G) - Maximum | 13.2 mm |
| Width | 1.181 in. (30.0mm) |
