HellermannTyton 151-01529 | Ratchet P-Clamp Tension Tab, Pa66Hirhsu...
Description
Description

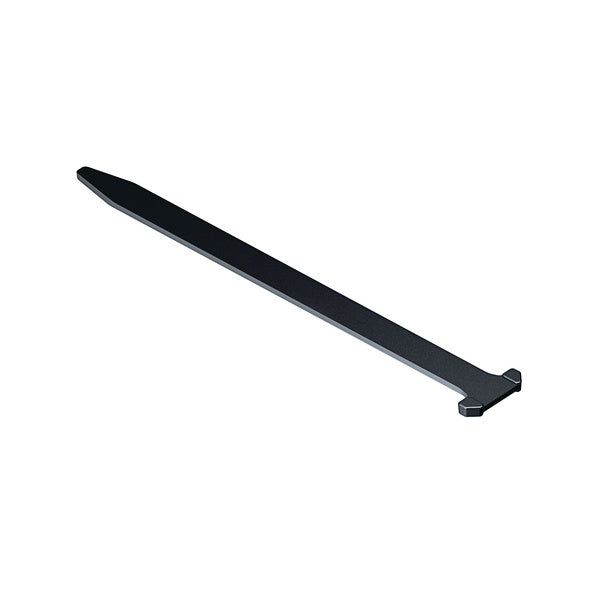

The Ratchet P-Clamp family offers optional accessories for different user needs. The Tension Tab provides a specified tension when clamping around the bundle when used with EVO Series hand tools.
The Ratchet P-Clamp family offers optional accessories for different user needs. The Tension Tab provides a specified tension when clamping around the bundle when used with EVO® Series hand tools.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01529 - Features

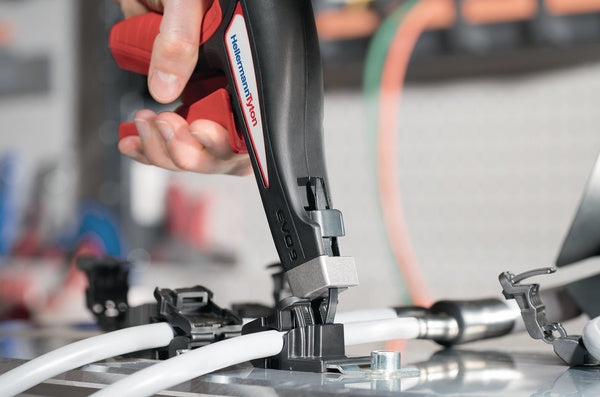

- For pre-determined clamp pressure, a tension tab is available for use with our EVO series hand tools.

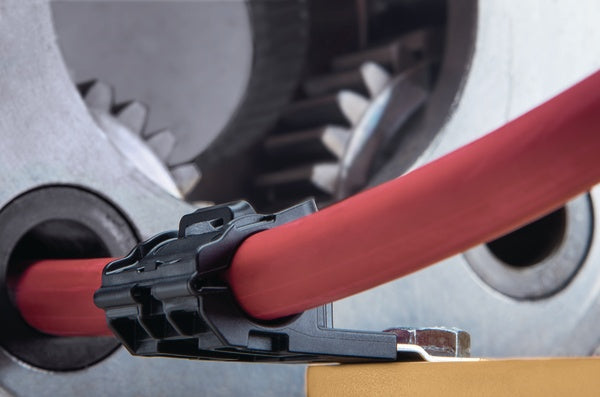

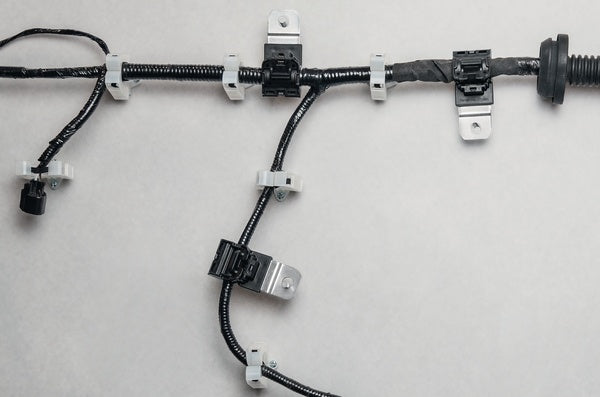

- The 360 degree enclosure ensures the entire bundle is secure when being routed by this clip.
- Locking tab on this clip is small enough that it will not interfere with any other portion of the wire routing, but is significant enough to allow for manual disengagement if service is needed.
- Disc around the fir tree eliminates potential debris and water to enter the panel hole.
Specifications
Specifications
HellermannTyton - 151-01529 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Ratchet Clamps
- Ratchet P-Clamps
HellermannTyton - 151-01529 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| Type | Cable Clamp - P Form |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-01529 - Base Data
| Article Number | 151-01529 |
|---|---|
| Type | RCTT |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Ratchet P-Clamp Tension Tab, PA66HIRHSUV, Black, 100/bg |
| Global Part Name | RCTT-PA66HIRHSUV-BK |
HellermannTyton - 151-01529 - Product Dimensions
| Fixation Method | Others |
|---|---|
| Variant | Not Serrated |
HellermannTyton - 151-01529 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-01529 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
HellermannTyton - 151-01529 - Videos
| HellermannTyton 151-01529 Video URL | Click to View |
|---|
