HellermannTyton 151-01630 | VHB Adhesive Base, .75" x .75", .14" Max Tie Width, .12" Hole Dia, PA66HIRHSUV, Black, 500/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-01630 | VHB Adhesive Base, .75" x .75"...
Description
Description

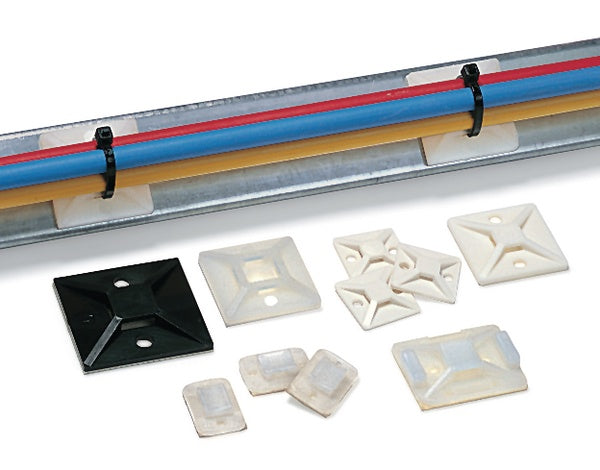

HellermannTyton offers adhesive mounts in a variety of sizes to match your cable tie size and extreme-duty application needs. The mount features 3M VHB (Very High Bond) adhesive, which actually builds strength over time and holds securely to difficult materials such as aluminum, steel, plastics and painted and powder-coated surfaces.

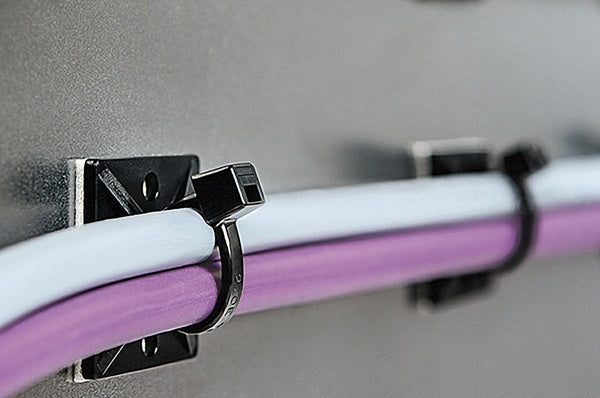

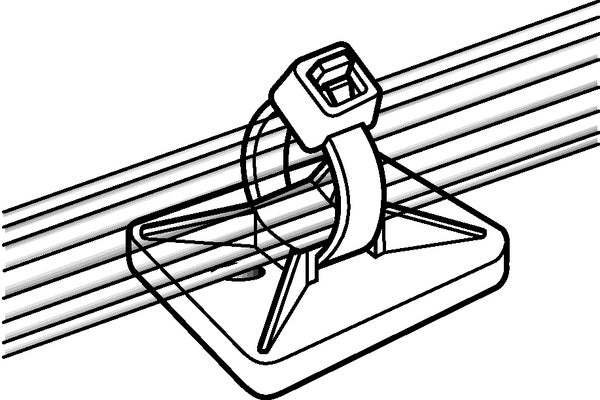

MB3A4 adhesive mounts are for use with HellermannTyton T18 - T30 Series cable ties to provide stability when securing bundles. The high-heat, high-bond acrylic adhesive-backed mounts can be used to secure a bundle and have two predrilled holes to extend mounting options.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01630 - Features
- For use with 18 and 30 pound HellermannTyton cable ties
- Extremely durable adhesive achieves high pull-off force and is unaffected by vibration.
- Multiple sizes accommodate a range of cable ties.
- 4-way opening allows cable ties to be installed parallel r perpendicular to wire bundles.
- Predrilled holes extend mounting options and security.
- Mount made of proprietary, impact-modified PA66 material for extraordinary durability, and is heat stabilized and UV resistant for extended life outdoors.
- Peel andstick for quick, convenient use in extreme-duty applications.
Specifications
Specifications
HellermannTyton - 151-01630 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Cable Tie Mounts
- Adhesive Mounting Bases
HellermannTyton - 151-01630 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .140 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-01630 - Base Data
| Article Number | 151-01630 |
|---|---|
| Type | MB3A4 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | High Heat High Bond Acrylic Adh Base, 0.75" x 0.75", Use T18-T30 Tie, PA66HIRHSUV, Black, 500/pkg |
| Global Part Name | MB3A4-PA66HIRHSUV-BK |

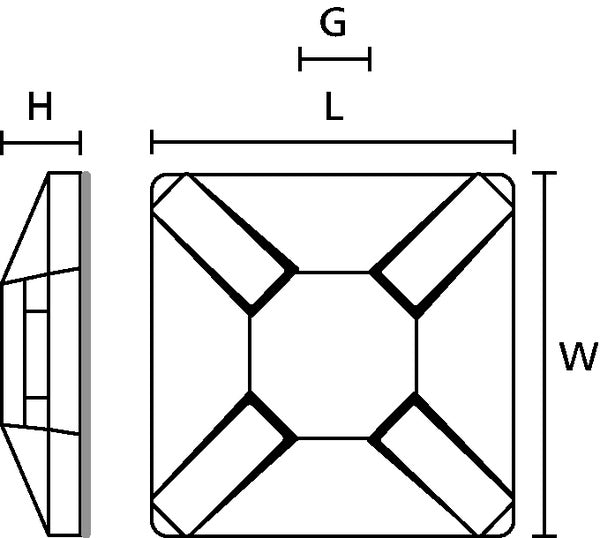

HellermannTyton - 151-01630 - Product Dimensions
| Length L (Imperial) | 0.75 |
|---|---|
| Length L (Metric) | 19 |
| Fixation Method | Screw Mounting and Adhesive |
| Width W (Imperial) | 0.75 |
| Width W (Metric) | 19 |
| Cable Ties | T18 - T30 |
| Height H (Imperial) | 0.19 |
| Height H (Metric) | 4.8 |
| Cable Tie Width Max (Imperial) | 0.14 |
| Cable Tie Width Max (Metric) | 3.6 |
| Mounting Hole Diameter D (Imperial) | 0.12 |
| Mounting Hole Diameter D (Metric) | 3.0 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.12 |
| Mounting Hole Diameter D Max (Imperial) | 0.12 |
| Mounting Hole Diameter D Max (Metric) | 3 |
| Mounting Hole Centers (Imperial) | 0.52 |
HellermannTyton - 151-01630 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-01630 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Adhesive | Acrylic foam |
| Flammability | UL 94 HB (excluding adhesive) |
| UV Resistant (Yes/No) | Yes |
| Adhesive Operating Temperature | -40°F to +176°F (-40°C to +80°C) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
