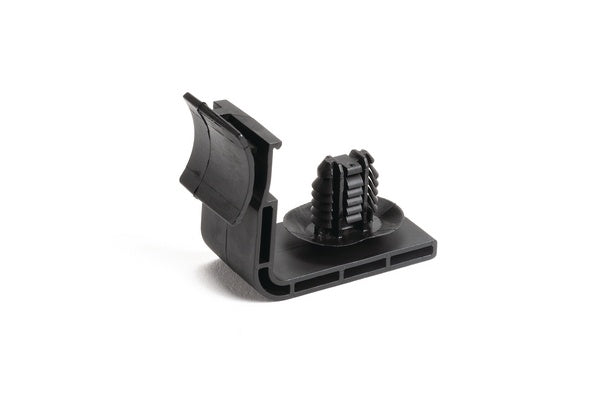

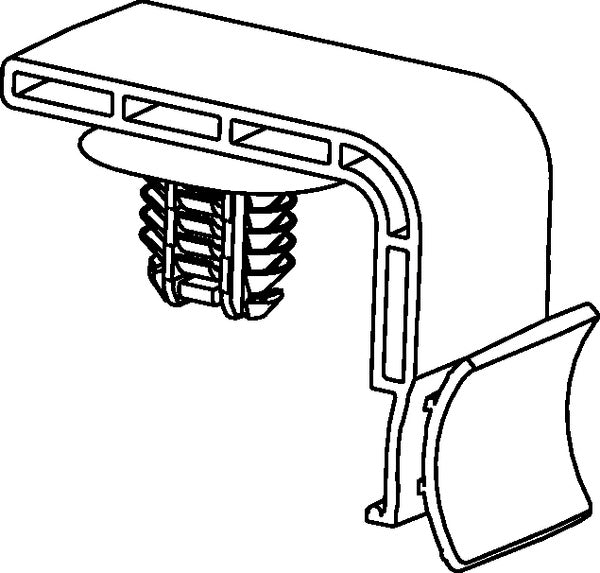

HellermannTyton 151-01681 | 2-Piece 90 Deg Bundling Clip & Tie, w/4x Oval, 50lb Tensile Strength, PA66HS/PA66HIRHS, BK, 1000/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-01681 | 2-Piece 90 Deg Bundling Clip & Tie,...
Description
Description
HellermannTyton’s bundling clips allow a harness to be routed around a corner and attached to the panel at this location.
HellermannTyton's bundling clips allow a harness to be routed around a corner and attached to the panel at this location.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01681 - Features
- The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.
- All-in-one bundling and fastening solution reduces costs and assembly time.
- Anti-rotational oval fastener forces bundle to travel in intended direction.
- High-spec materials and superior design deliver excellent performance and value.
Specifications
Specifications
HellermannTyton - 151-01681 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Bundling Clips
HellermannTyton - 151-01681 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-01681 - Base Data
| Article Number | 151-01681 |
|---|---|
| Type | BCFTOVALAPILLAR |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | 2-Piece 90 Deg Bundling Clip & Tie, w/4x Oval, 50lb Tensile Strength, PA66HIRHSUV, Black, 1000/pkg |
| Global Part Name | BCFTOVALAPILLAR-PA66HIRHSUV-BK |
HellermannTyton - 151-01681 - Product Dimensions
| Length L (Metric) | 45.7 |
|---|---|
| Offset Length (Metric) | 32 |
| Panel Thickness Min (Imperial) | 0.023 |
| Panel Thickness Max (Imperial) | 0.27 |
| Panel Thickness Min (Metric) | 0.6 |
| Panel Thickness Max (Metric) | 6.75 |
| Mounting Hole Diameter D (Metric) | 6.2 x 12.2 mm6.5 x 12.5 mm7.0 x 12.0 mm6.5 x 13.0 mm |
HellermannTyton - 151-01681 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-01681 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
