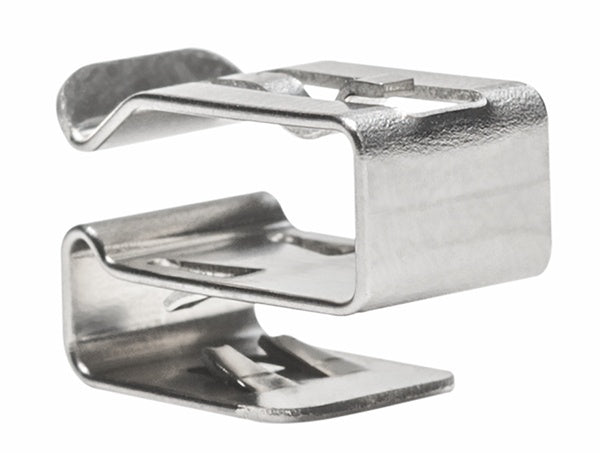

HellermannTyton 151-01699 | Low Profile Metal Edge Clip, 1.5-2.0mm Panel Thickness, 4.1-7mm Cable Range, SS304, 100/bag
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description

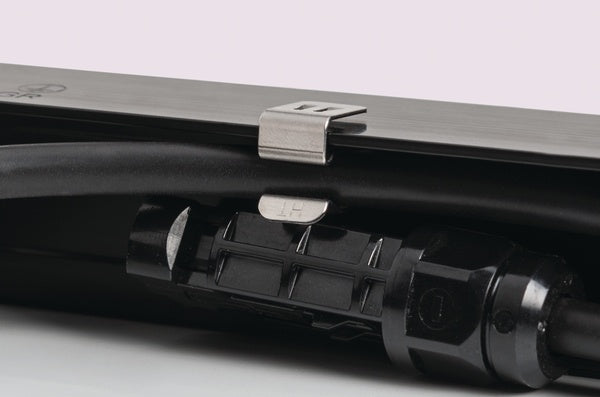

Designed for more confined areas, HellermannTyton’s Low Profile Metal Edge Clip provides an excellent alternative to managing wire and PV cables where plastic fasteners are not the preferred method. Designed for effortless insertion, the Metal Edge Cli p has a high extraction force that tolerates extreme environments and provides assurance that the cables are secure on a panel. The Metal Edge Clip is simple to install and can easily be removed with a flathead screwdriver.
Designed for more confined areas, HellermannTyton's Low Profile Metal Edge Clip provides an excellent alternative to managing wire and PV cables where plastic fasteners are not the preferred method. Designed for effortless insertion, the Metal Edge Clip has a high extraction force that tolerates extreme environments and provides assurance that the cables are secure on a panel. The Metal Edge Clip is simple to install and can easily be removed with a flathead screwdriver.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01699 - Features
- Integrated design allows for easy insertion by hand.
- 1.5-2.0mm panel thickness range allows for multiple applications.
- Double-compression design that accommodates various sizes of wire and cable.
- Presents a high extraction force for withstanding extree conditions.
- Strong fingers prevent unwanted breaking.
- Restricted opening prevents unintended removal of wires and permits any individual wire to be traced without disconnection.
- Supplied with mounting holes to streamline installation.
- Optional covers enhance protection and appearance.
Specifications
Specifications
HellermannTyton - 151-01699 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Edge Clips
HellermannTyton - 151-01699 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Material | Plastic |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-01699 - Base Data
| Article Number | 151-01699 |
|---|---|
| Type | MSC2LP |
| Color | Metal (ML) |
| Quantity Per | bag |
| Short Description | Low Profile Metal Edge Clip, 1.5 - 2.0mm Panel Thickness, 4.1 - 7mm Cable Range, SS304, 100/bg |
| Global Part Name | MSC2LP-SS304-ML |
HellermannTyton - 151-01699 - Product Dimensions
| Length L (Imperial) | 0.67 |
|---|---|
| Length L (Metric) | 17 |
| Width W (Imperial) | 0.375 |
| Width W (Metric) | 9.5 |
| Bundle Diameter Min (Imperial) | 0.161 |
| Bundle Diameter Min (Metric) | 4.1 |
| Bundle Diameter Max (Imperial) | 0.276 |
| Bundle Diameter Max (Metric) | 7 |
| Depth D (Imperial) | 0.649 |
| Depth D (Metric) | 16.48 |
| Panel Thickness Min (Imperial) | 0.06 |
| Panel Thickness Max (Imperial) | 0.078 |
| Panel Thickness Min (Metric) | 1.5 |
| Panel Thickness Max (Metric) | 2 |
HellermannTyton - 151-01699 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 7.33E+09 |
HellermannTyton - 151-01699 - Materials & Specifications
| Material | Stainless Steel (SS304) |
|---|---|
| Material Shortcut | SS304 |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -112°F to +1000°F (-80°C to +538°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| UL Recognized (US) | Yes |
| UL Listed (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Listed (US) | Yes |
