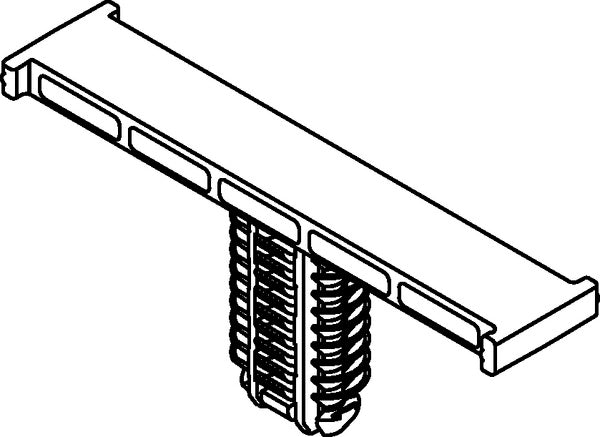

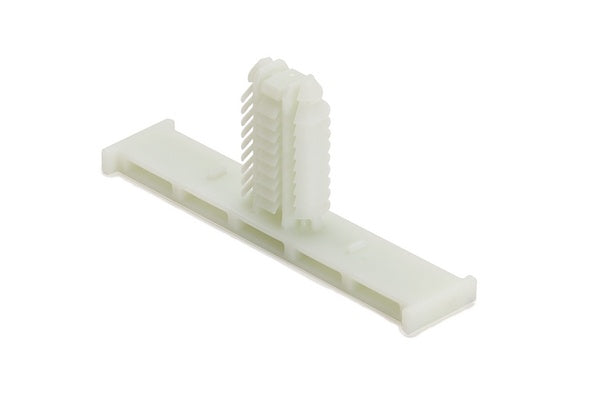

HellermannTyton 151-01888 | Bundling Clip w/Oval Fir Tree, 2.28" L, 0.02 - 0.43" Panel Thickness, PA66HIRHS, Natural, 3000/ctn
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-01888 | Bundling Clip w/Oval Fir Tree, 2.28&quo...
Description
Description
HellermannTyton Bundling Clips are designed to provide simple and easy methods for securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using tape or cable ties.
HellermannTyton's bundling clips allow a harness to be routed around a corner and attached to the panel at this location.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01888 - Features
- The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.
Specifications
Specifications
HellermannTyton - 151-01888 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-affixing Clips
- Bundling Clips
HellermannTyton - 151-01888 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Spiral Wrap | No |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-01888 - Base Data
| Article Number | 151-01888 |
|---|---|
| Type | BCFTOVALXL |
| Color | Natural (NA) |
| Quantity Per | carton |
| Short Description | Bundling Clip w/Oval Fir Tree, 2.28" L, 0.02 - 0.43" Panel Thickness, PA66HIRHS, Natural, 3000/ctn |
| Global Part Name | BCFTOVALXL-PA66HIRHS-NA |
HellermannTyton - 151-01888 - Product Dimensions
| Length L (Imperial) | 0.53 |
|---|---|
| Length L (Metric) | 13.4 |
| Fixation Method | Fir Tree for oval holes |
| Width W (Imperial) | 0.38 |
| Width W (Metric) | 9.6 |
| Height H (Imperial) | 0.97 |
| Height H (Metric) | 24.58 |
| Panel Thickness Min (Imperial) | 0.02 |
| Panel Thickness Max (Imperial) | 0.43 |
| Panel Thickness Min (Metric) | 0.6 |
| Panel Thickness Max (Metric) | 11 |
| Mounting Hole Diameter D (Imperial) | 0.24 x 0.48 "0.25 x 0.50 "0.25 x 0.50 "0.27 x 0.47 |
| Mounting Hole Diameter D (Metric) | 6.5 x 13.0 mm7.0 x 12.0 mm6.2 x 12.2 mm6.5 x 12.5 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.24 |
| Mounting Hole Diameter D Max (Imperial) | 0.51 |
| Mounting Hole Diameter D Max (Metric) | 13 |
HellermannTyton - 151-01888 - Logistic & Packaging
| Package Quantity (Imperial) | 3000 |
|---|---|
| Package Quantity (Metric) | 3000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-01888 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
