HellermannTyton 151-01917 | Ratchet P-Clamp, .24"-.54" Bu...
Description
Description

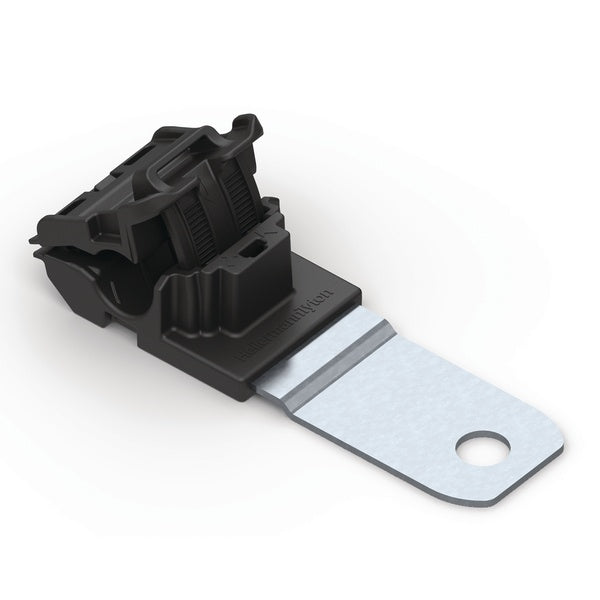

The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The one-piece adjustable clamp can be closed by hand to the de sired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-C lamp is offered in four sizes and multiple mounting configurations.
The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01917 - Features
- One-piece ratchet closure design allows for easy installation during pre- or final assembly.

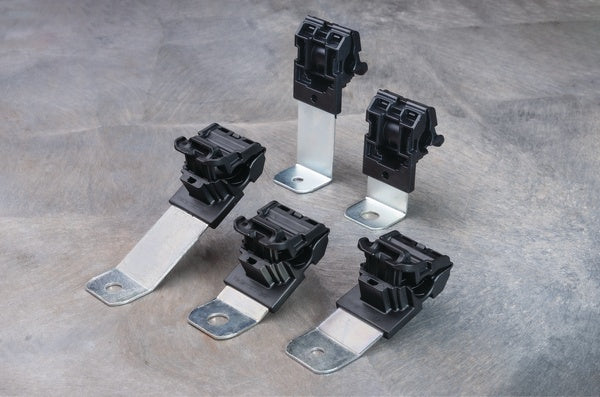

- Four sizes and multiple configurations handle a wide range of diameters and applications, reducing part inventory.
- Clamp interior is designed to guide and center bundle to reduce pinching.

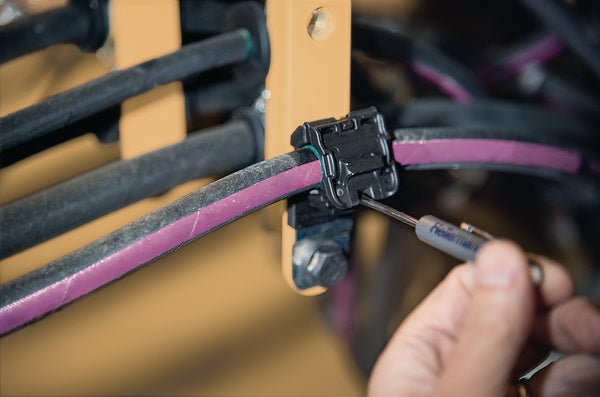

- Easy release feature allows for quick adjustments and maintenance.
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
- Stainless steel mounting plate tolerates high torque mounting resists galvanic corrosion with dissimilar metals, and harsh chemicals.
- One-piece ratchet closure allows for easy installation during pre- or final assembly.
- Easy release feature simplifies quick adjustments and maintenance.
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
- Zinc-plated steel mounting plate tolerates high torque and is treated to resist chemicals and salt spray.
- Straight, 180° mounting plate is ideal for applications requiring a flush mount set off from the mounting hole.
Specifications
Specifications
HellermannTyton - 151-01917 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Ratchet Clamps
- Ratchet P-Clamps
HellermannTyton - 151-01917 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| Type | Cable Clamp - P Form |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-01917 - Base Data
| Article Number | 151-01917 |
|---|---|
| Type | RCA180MM10SS |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Ratchet P-Clamp, 0.24 - 0.54" Bundle Dia, 180° Medium, 0.41" Hole Dia, PA66HIRHSUV/SS304, Black, 200/ctn |
| Global Part Name | RCA180MM10SS-PA66HIRHSUV/SS304-BK |
HellermannTyton - 151-01917 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 100 |
|---|---|
| Minimum Tensile Strength (Metric) | 445 |
| Length L (Imperial) | 5.44 |
| Length L (Metric) | 138.2 |
| Fixation Method | Screw Mounting |
| Variant | Medium |
| Width W (Imperial) | 1.37 |
| Width W (Metric) | 34.9 |
| Bundle Diameter Min (Imperial) | 0.24 |
| Bundle Diameter Min (Metric) | 6.2 |
| Bundle Diameter Max (Imperial) | 0.54 |
| Bundle Diameter Max (Metric) | 13.7 |
| Cable Tie Width Max (Imperial) | 0.52 |
| Cable Tie Width Max (Metric) | 13.2 |
| Mounting Hole Diameter D (Imperial) | 0.405 |
| Mounting Hole Diameter D (Metric) | 10.29 mm |
| Mounting Hole Diameter D Max (Metric) | 10.29 |
| Stud Diameter (Metric) | M10 |
| Mounting Hole Centers (Imperial) | 2.85 |
HellermannTyton - 151-01917 - Logistic & Packaging
| Package Quantity (Imperial) | 200 |
|---|---|
| Package Quantity (Metric) | 200 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-01917 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)Stainless Steel (SS304) |
|---|---|
| Material Shortcut | SS304PA66HIRHSUV |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | Yes |
| UL Listed (US) | Yes |
HellermannTyton - 151-01917 - Videos
| HellermannTyton 151-01917 Video URL | Click to View |
|---|
