Brand: HellermannTyton | SKU: 9954270

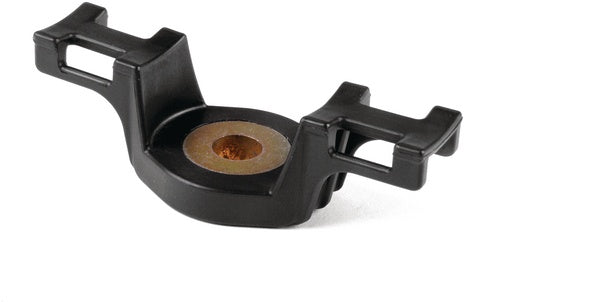

HellermannTyton 151-02097 | High Torque Mount, Mounting Hole Dia. 0.5", Max Torque 114.0 lb - ft, PA66HIRHSUV, Black, 100/pkg

Regular price $4.06
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

HellermannTyton 151-02097 | High Torque Mount, Mounting Hole Dia. 0.5", Max Torque 114.0 Lb - Ft, Pa66Hirhsuv, Black, 100/Pkg

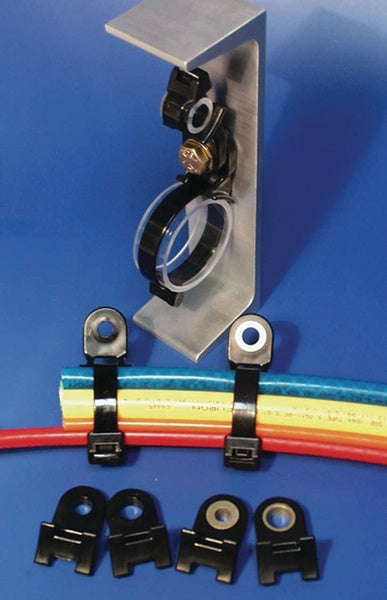

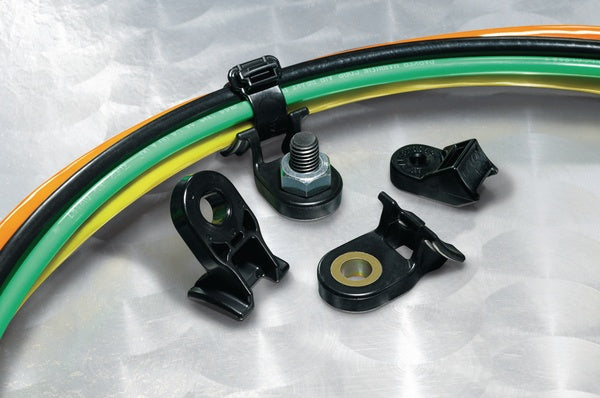

The high-torque mount is designed for use with power-assisted impact wrenches and is molded with a heavy bushing to withstand the forces required to tighten grade 8 bolts. The arched H-profile of the saddle surface allows for a broad surface contact wi th the bundle, minimizing pinching and crushing of the bundles, and adjusts to a wide variety of bundle diameters when used with HellermannTyton heavy duty T120, T250, T255 and Wide Strap Cable Ties.

The high-torque mount is designed for use with power-assisted impact wrenches and is molded with a heavy bushing to withstand the forces required to tighten grade 8 bolts. The arched H-profile of the saddle surface allows for a broad surface contact with the bundle, minimizing pinching and crushing of the bundles, and adjusts to a wide variety of bundle diameters when used with HellermannTyton heavy duty T120, T250, T255 and Wide Strap Cable Ties.

About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.

HellermannTyton - 151-02097 - Features

  • Mount and tie combination makes it easy to service bundles in the field.
  • Made from impact modified, heat stabilized, UV resistant material, ideal for heavy duty environments.
  • Eliminates the needs for multiple sized fix diameter clamps.
  • Oval fir tree design allows for this bundling clip to be used in 4 different hole sizes, and various panel thicknesses without compromising performance.
  • The unique design of the fir tree grips onto the panel due to the branches on all four sides of the mount.

Specifications

HellermannTyton - 151-02097 - Product Categories

  • Hardware
  • Cable Management
  • Tubing
  • Bundling & Securing
  • Heavy Duty Cable Tie Mounts
  • Mounts Secured with Mechanical Fasteners - Single Bundle

HellermannTyton - 151-02097 - Specifications

Brand NameHellermannTyton
Decimal.500 Inch
DualNo
Heat ShrinkNo Is Not Shrink Tubing
Spiral WrapNo
UNSPSC Code39130000

HellermannTyton - 151-02097 - Base Data

Article Number151-02097
TypeHDM500
ColorBlack (BK)
Quantity Percarton
Short DescriptionHigh Torque Mount, Mounting Hole Dia. 0.5", Max Torque 114.0 lb - ft, PA66HIRHSUV, Black, 100/pkg
Global Part NameHDM500-PA66HIRHSUV-BK

HellermannTyton - 151-02097 - Product Dimensions

Length L (Imperial)1.85
Length L (Metric)47
Fixation MethodScrew Mounting and Rivet
Width W (Imperial)1
Width W (Metric)25
Height H (Imperial)0.81
Height H (Metric)20.7
Cable Tie Width Max (Imperial)0.5
Cable Tie Width Max (Metric)12.7
Mounting Hole Diameter D (Imperial)0.5
Mounting Hole Diameter D (Metric)12.7 mm
Mounting Hole Diameter D Min (Imperial)0.5
Mounting Hole Diameter D Max (Imperial)0.5
Mounting Hole Diameter D Max (Metric)12.7
Stud Diameter (Metric)12.0 mm
Stud Diamater (Imperial)0.47

HellermannTyton - 151-02097 - Logistic & Packaging

Package Quantity (Imperial)100
Package Quantity (Metric)100
Customs Number3.93E+09

HellermannTyton - 151-02097 - Materials & Specifications

MaterialPolyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material ShortcutPA66HIRHSUV
FlammabilityUL 94 HB
UV Resistant (Yes/No)Yes
Operating Temperature-40°F to +221°F (-40°C to +105°C)
Maximum Torque (kgf-cm)1576
Maximum Torque (lbf-ft)114
Reach Compliant (Article 33)Yes
ROHS CompliantYes
