HellermannTyton 151-02103 | High Torque Axial Mount, Bolt Hole Dia....
Description
Description

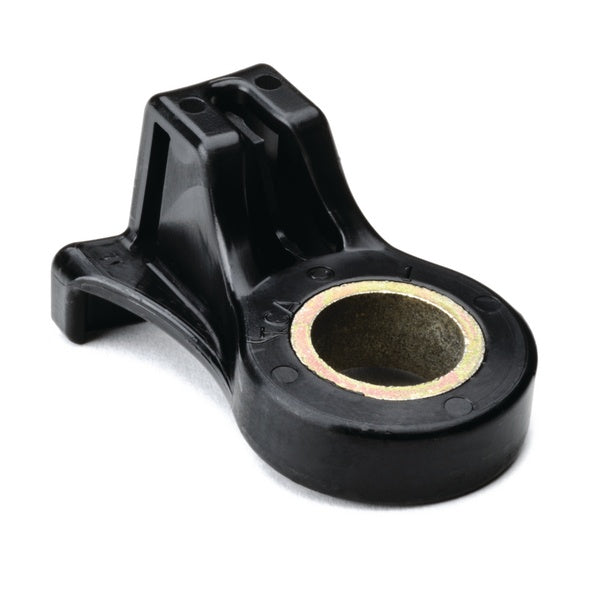

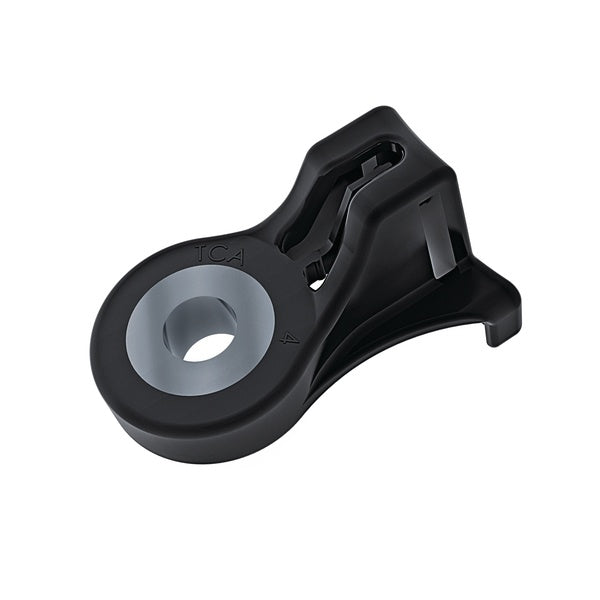

HellermannTyton’s axial oval mount stands off bundles from frame rails and cross members to prevent them from rubbing and chafing. The axial oval mount accommodates cable ties up to 0.5" wide. The hole on the mount was designed to fit a 5/16" bolt.
HellermannTyton’s axial oval mount stands off bundles from frame rails and cross members to prevent them from rubbing and chafing. The axial oval mount accommodates cable ties up to 0.5” wide. The hole on the mount was designed to fit a 5/16" bolt.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-02103 - Features

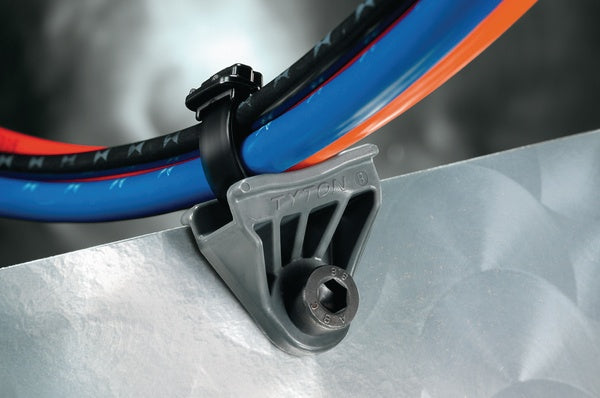

- Positions bundles off cross members and frame rails to prevent abrasion and chafing.
- Metal insert bushing accommodates high-torque installation.
- Made with high-impact, heat stabilized, and UV material ideal for trucking and heavy equipment environments.
Specifications
Specifications
HellermannTyton - 151-02103 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Heavy Duty Cable Tie Mounts
- Mounts Secured with Mechanical Fasteners - Single Bundle
HellermannTyton - 151-02103 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Spiral Wrap | No |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-02103 - Base Data
| Article Number | 151-02103 |
|---|---|
| Type | SAM500B-R |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | High Torque Axial Mount, Bolt Hole Dia. 0.510", PA66HIRHSUV, Black, 500/pkg |
| Global Part Name | SAM500B-R-PA66HIRHSUV-BK |
HellermannTyton - 151-02103 - Product Dimensions
| Length L (Imperial) | 1.18 |
|---|---|
| Length L (Metric) | 29.9 |
| Fixation Method | Screw Mounting and Rivet |
| Width W (Imperial) | 1 |
| Width W (Metric) | 25 |
| Height H (Imperial) | 1.77 |
| Height H (Metric) | 44.9 |
| Cable Tie Width Max (Metric) | 12.7 |
| Mounting Hole Diameter D (Imperial) | 0.51 |
| Mounting Hole Diameter D (Metric) | 12.95 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.51 |
| Mounting Hole Diameter D Max (Imperial) | 0.51 |
| Mounting Hole Diameter D Max (Metric) | 12.95 |
| Stud Diameter (Metric) | 12.0 mm |
HellermannTyton - 151-02103 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-02103 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
