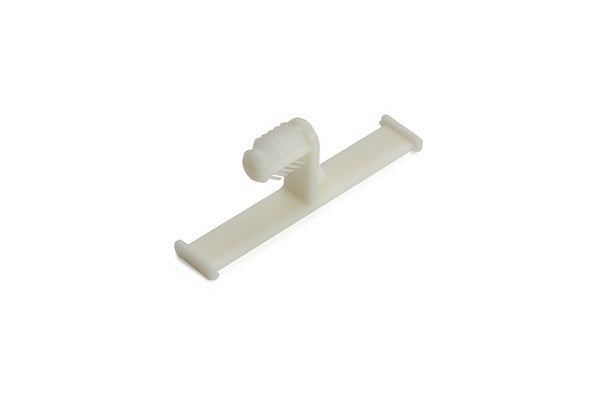

HellermannTyton 151-02432 | Standoff Bundling Clip, 2.4" Long, Panel Thickness 0.02-0.22", PA66HIRHS, Natural, 2,500/carton
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-02432 | Standoff Bundling Clip, 2.4" Long,...
Description
Description
151-02432 Tape clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes.
Tape clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
Specifications
Specifications
HellermannTyton - 151-02432 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Bundling Clips
HellermannTyton - 151-02432 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Flammability Rating | Not Rated |
| Material | Steel |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| Type | Cable Clip - Push Mount |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-02432 - Base Data
| Article Number | 151-02432 |
|---|---|
| Type | SOC8FT8 |
| Color | Natural (NA) |
| Quantity Per | bag |
| Short Description | Standoff Bundling Clip, 2.4" Long, 0.03 - 0.22" Panel Thickness, PA66HIRHS, Natural, 2500/carton |
| Global Part Name | SOC8FT8-PA66HIRHS-NA |

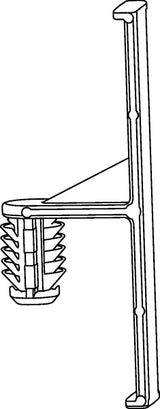

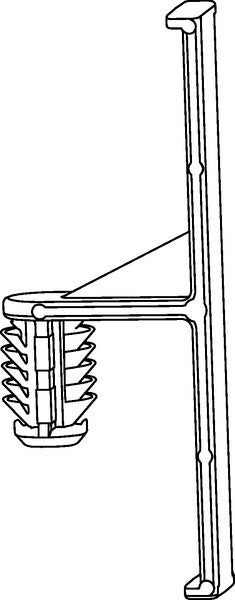

HellermannTyton - 151-02432 - Product Dimensions
| Length L (Imperial) | 2.4 |
|---|---|
| Length L (Metric) | 61 |
| Offset Length (Imperial) | 0.625 |
| Offset Length (Metric) | 15.9 |
| Width W (Imperial) | 0.47 |
| Width W (Metric) | 12 |
| Height H (Imperial) | 0.88 |
| Height H (Metric) | 22.4 |
| Panel Thickness Min (Imperial) | 0.02 |
| Panel Thickness Max (Imperial) | 0.21 |
| Panel Thickness Min (Metric) | 0.6 |
| Panel Thickness Max (Metric) | 5.5 |
| Mounting Hole Diameter D (Imperial) | 0.31 |
| Mounting Hole Diameter D (Metric) | 8.0 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.29 |
| Mounting Hole Diameter D Max (Imperial) | 0.32 |
| Mounting Hole Diameter D Max (Metric) | 8.2 |
HellermannTyton - 151-02432 - Logistic & Packaging
| Package Quantity (Imperial) | 2500 |
|---|---|
| Package Quantity (Metric) | 2500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-02432 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
