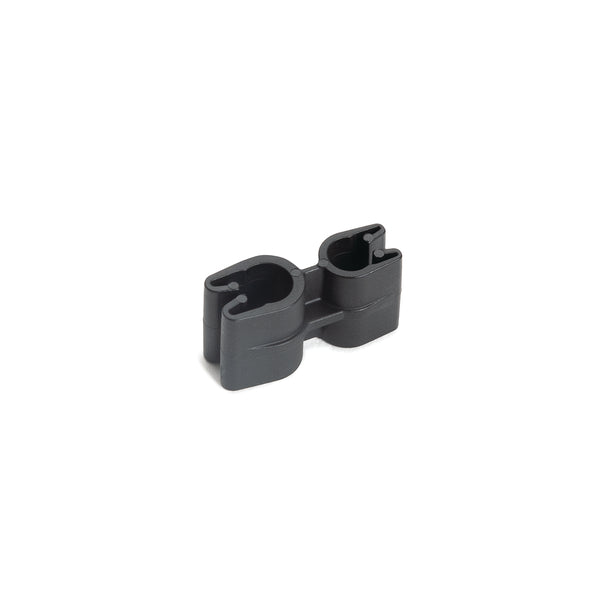

HellermannTyton 151-02451 | Tube and Pipe Clip 1x4 and 1x5mm Diameter, PA66HIRHSUV, Black, 10,000/ctn
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-02451 | Tube and Pipe Clip 1x4 and 1x5mm Diamet...
Description
Description
This clip features a modular design that can be used individually or lined together to secure multiple pipes or hoses.
An ultra-secure routing clip connected to a round or oval fixing for easy insertion into an existing panel hole.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-02451 - Features
- Dual pipe clip secures two routings together while keeping them separated, to prevent chafing or heat transfer.
- Inverted retaining legs and narrow opening prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- 4x Pipe Clip secures four routings together while keeping them separated, to prevent chafing or heat transfer
- Inverted retaining legs and narrow opening prevent inadvertent disengagement
- Controlled flex and angled entry promote easy installation
Specifications
Specifications
HellermannTyton - 151-02451 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Clips
- Tube and Pipe Clips
HellermannTyton - 151-02451 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-02451 - Base Data
| Article Number | 151-02451 |
|---|---|
| Type | PC4X1-5X1 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Tube and Pipe Clip 1x4 and 1x5mm Diameter, PA66HIRHSUV, Black, 10,000/ctn |
| Global Part Name | PC4X1-5X1-PA66HIRHSUV-BK |
HellermannTyton - 151-02451 - Product Dimensions
| Length L (Imperial) | 0.32 |
|---|---|
| Length L (Metric) | 8.2 |
| Height H (Imperial) | 0.72 |
| Height H (Metric) | 18.2 |
| Depth D (Imperial) | 0.39 |
| Depth D (Metric) | 10 |
| Diameter D (Imperial) | 0.185 |
| Diameter D (Metric) | 4.7 |
HellermannTyton - 151-02451 - Logistic & Packaging
| Package Quantity (Imperial) | 10000 |
|---|---|
| Package Quantity (Metric) | 10000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-02451 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
