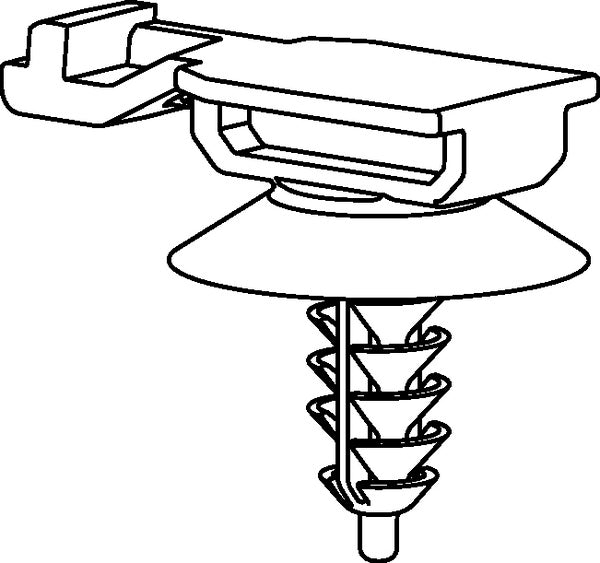

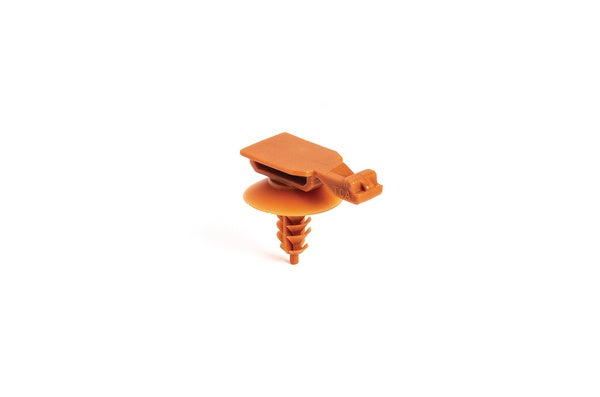

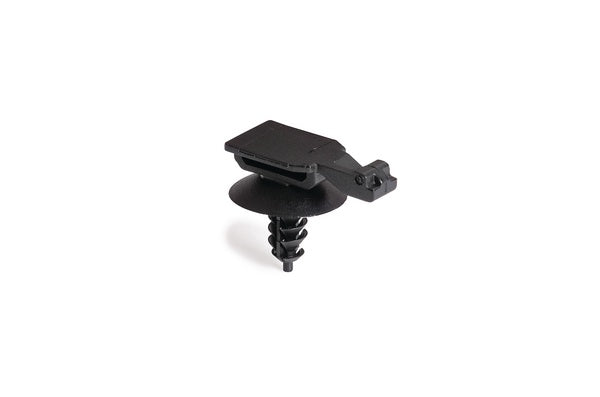

HellermannTyton 151-02459 | USCAR Conn Clip with Fir Tree, 11mm, 5.0 mm Dia and M6 Threaded Hole, PA66HIRHSUV, Black, 5000/ctn
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-02459 | USCAR Conn Clip with Fir Tree, 11mm, 5....
Description
Description

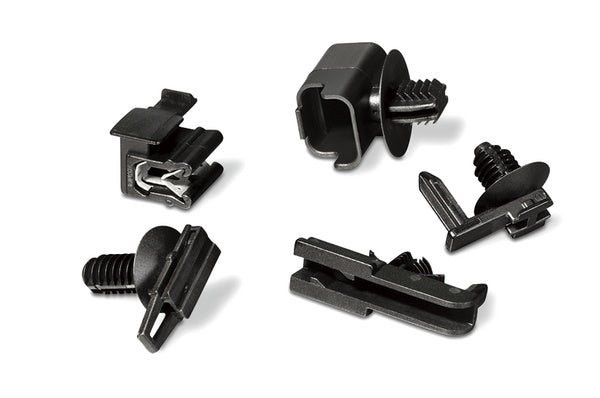

Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so m any configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-02459 - Features
- Designs include anti-rattle disc features, anti-rotation oval fir trees and edge clips for versatile application use.
- Versatile and robust fir tree design provides low insertion effort yet delivers exceptional retention strenght in a 5 mm hole and M6 t hreaded hole.
- Connector clip design meets USCAR EWCAP-005-23 clip slot specifications for added assurance.
- 10 mm connector clip offset allows for clearance from obstructions.
- 4x oval fir tree design fits panels between 0.6 mm to 6.75 mm in thickness, preventing rotation.
- Provides best-in-class installation and extraction resistance for four common oval sizes, reducing part inventory.
Specifications
Specifications
HellermannTyton - 151-02459 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Connector Clips
HellermannTyton - 151-02459 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Cable/Tube/Bundle Dia | 5 |
| Color | Black |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-02459 - Base Data
| Article Number | 151-02459 |
|---|---|
| Type | CC11FTM6 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | USCAR Conn. Clip with Fir Tree, 11mm, 5.0 mm Dia and M6 Threaded Hole, PA66HIRHSUV, Black, 5000/ctn |
| Global Part Name | CC11FTM6-PA66HIRHSUV-BK |
HellermannTyton - 151-02459 - Product Dimensions
| Length L (Imperial) | 0.98 |
|---|---|
| Length L (Metric) | 24.9 |
| Fixation Method | Fir Tree |
| Variant | M6 Threaded Hole |
| Width W (Imperial) | 0.622 |
| Width W (Metric) | 15.8 |
| Height H (Imperial) | 0.814 |
| Height H (Metric) | 20.7 |
| Panel Thickness Min (Imperial) | 0.05 |
| Panel Thickness Max (Imperial) | 0.18 |
| Panel Thickness Min (Metric) | 1.3 |
| Panel Thickness Max (Metric) | 4.5 |
| Mounting Hole Diameter D (Imperial) | 0.2362 |
| Mounting Hole Diameter D (Metric) | M6 |
| Mounting Hole Diameter D Min (Imperial) | 0.256 |
| Mounting Hole Diameter D Max (Imperial) | 0.276 |
| Disc Diameter (Metric) | 17.5 |
HellermannTyton - 151-02459 - Logistic & Packaging
| Package Quantity (Imperial) | 5008 |
|---|---|
| Package Quantity (Metric) | 5000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-02459 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
