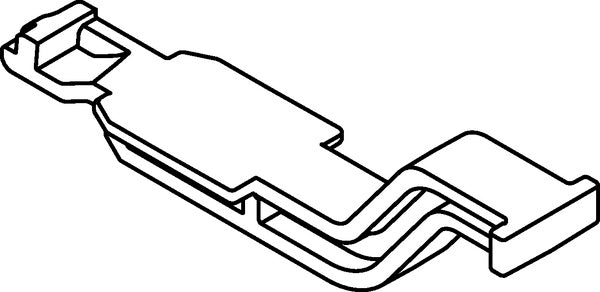

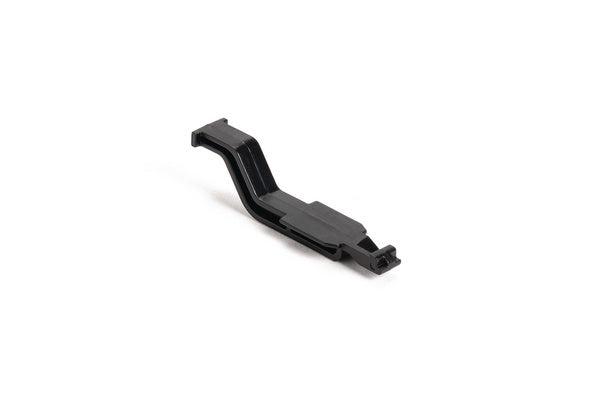

HellermannTyton 151-02551 | USCAR Connector Clip with I-beam Bundling Clip, 11mm, POM, Black, 7000/ctn
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-02551 | USCAR Connector Clip with I-beam Bundli...
Description
Description
Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so m any configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-02551 - Features
- Connector Clip with tape bar secures connectors with USCAR 11 mm slot and provides strain relief for the connector and wiring assembly.
- Compact I-beam design provides a robust solution for all bundles, small to large.
- Dog bone ends help secure tape or tie, preventing bundling clip from slipping off bundle.
- Connector clip design meets USCAR EWCAP-005-11 clip slot specifications, assuring compliance.
- Meets installation and extraction requirements of SAE/USCAR-2, for easy insertion and reliable performance.
Specifications
Specifications
HellermannTyton - 151-02551 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Connector Clips
HellermannTyton - 151-02551 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-02551 - Base Data
| Article Number | 151-02551 |
|---|---|
| Type | SOC25SO9CC11 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | USCAR Connector Clip with I-beam Bundling Clip, 11mm, POM, Black, 5000/ctn |
| Global Part Name | SOC25SO9CC11-POM-BK |
HellermannTyton - 151-02551 - Product Dimensions
| Length L (Imperial) | 1.96 |
|---|---|
| Length L (Metric) | 50 |
| Width W (Imperial) | 0.427 |
| Width W (Metric) | 10.85 |
| Height H (Imperial) | 0.539 |
| Height H (Metric) | 13.7 |
HellermannTyton - 151-02551 - Logistic & Packaging
| Package Quantity (Imperial) | 5009 |
|---|---|
| Package Quantity (Metric) | 5000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-02551 - Materials & Specifications
| Material | Polyacetal (POM) |
|---|---|
| Material Shortcut | POM |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +194°F (-40°C to +90°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
