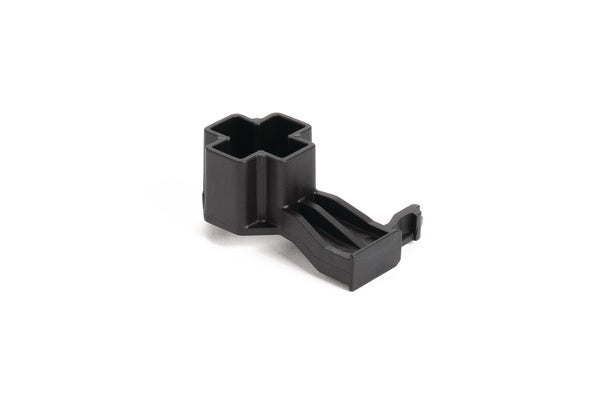

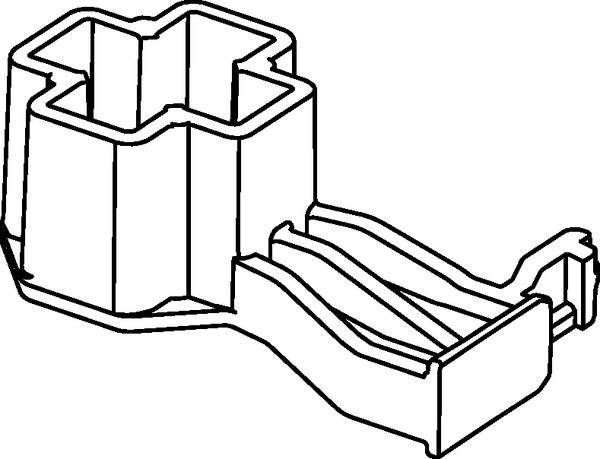

HellermannTyton 151-02802 | Offset Stud Mnt Conn Clip, 28mm offset, M10 thread Stud, 7mm Conn Clip, PA66HIRHSUV, Black, 2000/ctn
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-02802 | Offset Stud Mnt Conn Clip, 28mm offset,...
Description
Description
151-02802 Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-02802 - Features
- The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.
- Clip can be installed by hand – no need for hardware or tools.
- Design provides low insertion and high extraction force, for simple, secure performance.
- Clip keeps bundle away from areas that could cause damage due to rubbing.
Specifications
Specifications
HellermannTyton - 151-02802 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Connector Clips
HellermannTyton - 151-02802 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Natural |
| Flammability Rating | Not Rated |
| Material | Plastic |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| Type | Cable Clip - Push Mount |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-02802 - Base Data
| Article Number | 151-02802 |
|---|---|
| Type | CCM10SO28R |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Conn. Clip w/Offset M10 Thread Stud Mount, 28mm Offset, 7mm Conn Clip, PA66HIRHSUV, BK, 2000/ctn |
| Global Part Name | CCM10SO28R-PA66HIRHSUV-BK |
HellermannTyton - 151-02802 - Product Dimensions
| Length L (Imperial) | 1.53 |
|---|---|
| Length L (Metric) | 38.9 |
| Offset Length (Imperial) | 1.102 |
| Offset Length (Metric) | 28 |
| Variant | M10 Threaded Stud 28 mm Offset |
| Height H (Imperial) | 0.736 |
| Height H (Metric) | 18.7 |
| Stud Diameter (Metric) | M10 |
| Stud Diamater (Imperial) | 0.3937 |
HellermannTyton - 151-02802 - Logistic & Packaging
| Package Quantity (Imperial) | 2000 |
|---|---|
| Package Quantity (Metric) | 2000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-02802 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
