HellermannTyton 151-02875 | Series 6 RPC Hanger, 0.5 - 0.77" Dia, 0.22" Mounting Hole Dia, PA66HIRHSUV/ST/ZN, Black, 280/ctn
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-02875 | Series 6 RPC Hanger, 0.5 - 0.77" D...
Description
Description

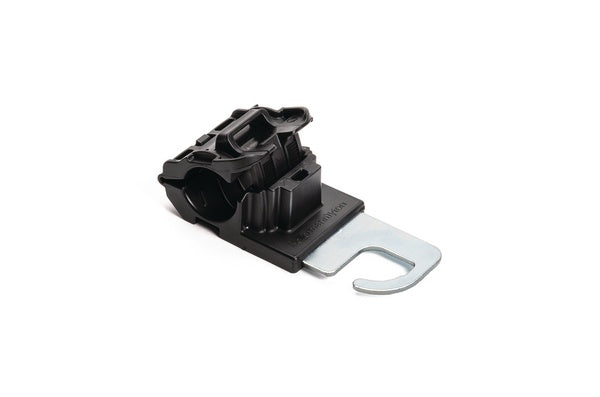

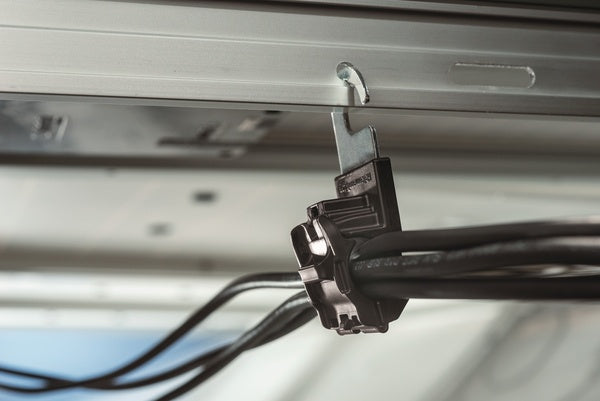

The Series 6 Ratchet P-Clamp Solar Hanger offers one-handed, toolless simplicity and size versatility for managing wires and cables on First Solar modules. The robust design and solar-optimized materials make it ideal for heavy duty, outdoor applicatio ns. The one-piece adjustable clamp can be closed by hand to the desired diameter, replacing multiple sizes of fixed diameter fasteners. The integrated release feature enables easy and nondestructive removal of cables by inserting a flat-head screwdrive r. This allows the clamp to be reused without removing it. Four sizes accommodate bundles from 1/4" to 2" in diameter.
The Series 6 Ratchet P-Clamp Solar Hanger offers one-handed, toolless simplicity and size versatility for managing wires and cables on First Solar modules. The robust design and solar-optimized materials make it ideal for heavy duty, outdoor applications. The one-piece adjustable clamp can be closed by hand to the desired diameter, replacing multiple sizes of fixed diameter fasteners. The integrated release feature enables easy and nondestructive removal of cables by inserting a flat-head screwdriver. This allows the clamp to be reused without removing it.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-02875 - Features
- Impact modified, heat and UV stabilized PA66 provides long-term durability in solar applications.
- One-piece ratchet closure design allows for easy installation during pre- or final assembly.
- Four sizes handle a wide range of diameters, reducing part inventory.
- Release feature allows for quick adjustments and maintenance.
- First Solar specific steel mounting hanger tolerates high torque and is treated to resist chemicals.
- HellermannTyton Connector Clips provide a single method to mount connectors to various surfaces in a variety of applications.
- Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
- An assortment of Connector Cips is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
Specifications
Specifications
HellermannTyton - 151-02875 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Ratchet Clamps
- Ratchet P-Clamps
HellermannTyton - 151-02875 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Rohs Compliant | Yes |
| Type | Cable Clamp - P Form |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-02875 - Base Data
| Article Number | 151-02875 |
|---|---|
| Type | RCBHANGER |
| Color | Black (BK) |
| Quantity Per | box |
| Short Description | Series 6 RPC Hanger, 0.5 - 0.77" Bundle Dia, 0.81" x 1.81" Hook, PA66HIRHSUV/ZN, Black, 280/ctn |
| Global Part Name | RCBHANGER-PA66HIRHSUV/ZN-BK |
HellermannTyton - 151-02875 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 100 |
|---|---|
| Minimum Tensile Strength (Metric) | 445 |
| Length L (Imperial) | 4.54 |
| Length L (Metric) | 115.4 |
| Fixation Method | Screw Mounting |
| Variant | Short |
| Width W (Imperial) | 1.37 |
| Width W (Metric) | 34.9 |
| Bundle Diameter Min (Imperial) | 0.5 |
| Bundle Diameter Min (Metric) | 12.7 |
| Bundle Diameter Max (Imperial) | 0.77 |
| Bundle Diameter Max (Metric) | 19.5 |
| Height H (Imperial) | 0.98 |
| Height H (Metric) | 24.8 |
| Mounting Hole Diameter D (Imperial) | 0.22 |
| Mounting Hole Diameter D (Metric) | 5.6 mm |
HellermannTyton - 151-02875 - Logistic & Packaging
| Package Quantity (Imperial) | 280 |
|---|---|
| Package Quantity (Metric) | 280 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-02875 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)Zinc plated (ZN) |
|---|---|
| Material Shortcut | PA66HIRHSUVZN |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | Yes |
| UL Listed (US) | Yes |
HellermannTyton - 151-02875 - Videos
| HellermannTyton 151-02875 Video URL | Click to View |
|---|
