HellermannTyton 151-02985 | Conduit Clamps, Size 19, Attach Hole Di...
Description
Description

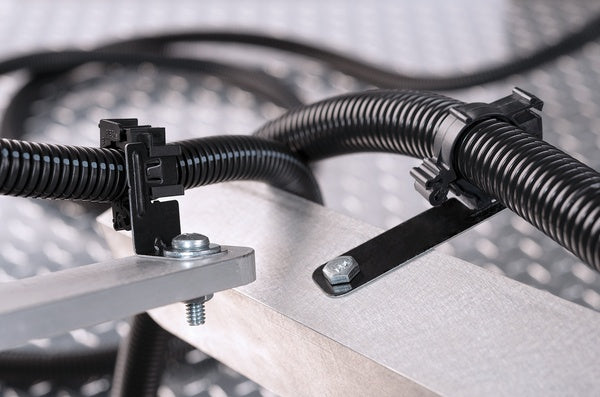

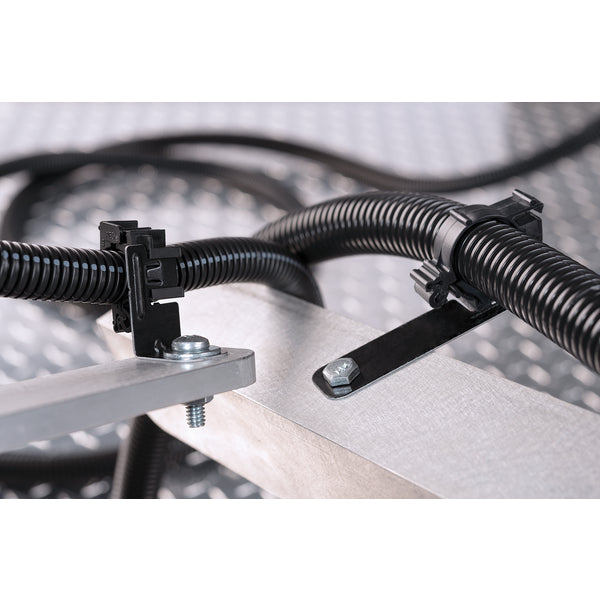

151-02985 The Convoluted Tubing Clamp provides a quick method for securing and routing convoluted tubing. The clamp has an internal rib that prevents movement of the tubing and rattling. Living hinge allows placement and positioning of tubing before lo cking in place. Convoluted tubing clamps are available in various tubing diameters. Choose from arrowhead, fir tree, bundling clip, bracket and dual clamp configurations.
The Convoluted Tubing Clamp provides a quick method for securing and routing convoluted tubing. The clamp has an internal rib that prevents movement of the tubing and rattling. Living hinge allows placement and positioning of tubing before locking in place. Convoluted tubing clamps are available in various tubing diameters. Choose from arrowhead, fir tree, bundling clip, bracket and dual clamp configurations.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
Specifications
Specifications
HellermannTyton - 151-02985 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Routing, Protection and Insulation
- Convoluted Tubing and Accessories
- Convoluted Tubing - Accessories
HellermannTyton - 151-02985 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Flammability Rating | Not Rated |
| Material | Steel |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| Type | Cable Clamp |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-02985 - Base Data
| Article Number | 151-02985 |
|---|---|
| Type | CDC19B90OS50M10 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Conduit Clamps, Size 19, Mounting Hole 10.6 mm, Offset 50.0 mm, PA66HIRHS, Black, 50/pkg |
| Global Part Name | CDC19B90OS50M10-PA66HIRHS-BK |
HellermannTyton - 151-02985 - Product Dimensions
| Length L (Imperial) | 2.77 |
|---|---|
| Length L (Metric) | 70.3 |
| Variant | Clamps |
| Width W (Imperial) | 1.3 |
| Width W (Metric) | 32 |
| Bundle Diameter Max (Imperial) | 0.75 |
| Bundle Diameter Max (Metric) | 19 |
| Height H (Imperial) | 3.53 |
| Height H (Metric) | 89.6 |
| Inner Diameter D (Imperial) | 1.08 |
| Inner Diameter D (Metric) | 27.4 |
| Diameter D (Imperial) | 0.81 |
| Diameter D (Metric) | 20.6 |
| Nominal Diameter (Imperial) | 0.75 |
| Nominal Diameter (Metric) | 19 |
| Mounting Hole Diameter D (Imperial) | 0.42 |
| Mounting Hole Diameter D (Metric) | 10.6 mm |
HellermannTyton - 151-02985 - Logistic & Packaging
| Package Quantity (Imperial) | 50 |
|---|---|
| Package Quantity (Metric) | 50 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-02985 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| Flammability | UL 94 HB |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
