Brand: HellermannTyton | SKU: 10057225

HellermannTyton 151-03123 | Ratchet P-Clamp, 2.48 - 3.15" Bundle Dia, 180° Short, 0.41" Hole Dia, Pa66Hirhsuv/Ss304, Black,90/Ctn

Regular price $6.63
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

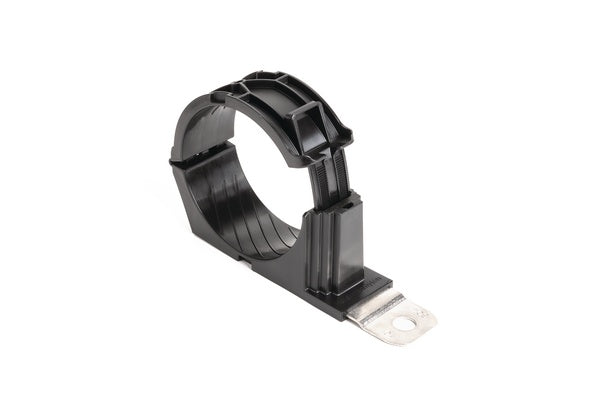

HellermannTyton 151-03123 | Ratchet P-Clamp, 2.48 - 3.15" Bundle Dia, 180° Short, 0.41" Hole Dia, Pa66Hirhsuv/Ss304, Black,90/Ctn

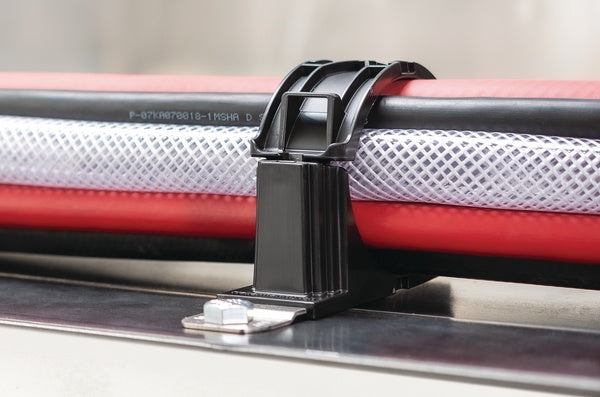

The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The one-piece adjustable clamp can be closed by hand to the de sired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws.

The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws.

About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.

HellermannTyton - 151-03123 - Features

  • One-piece ratchet closure allows for easy installation during pre- or final assembly.

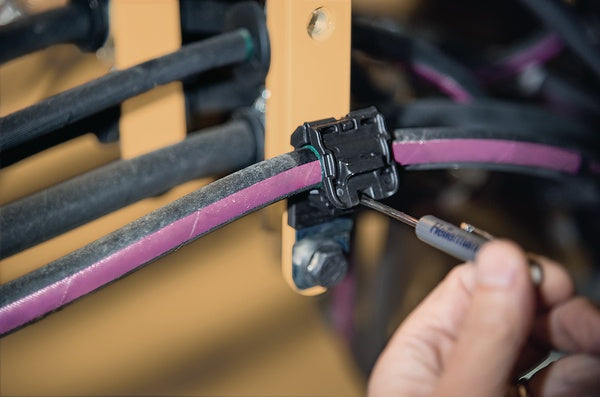

  • Easy release feature simplifies quick adjustments and maintenance.
  • Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
  • Stinless-steel mounting plate tolerates high torque and provides superior corrosion resistance against chemicals, salt spray and contact with dissimilar metals.

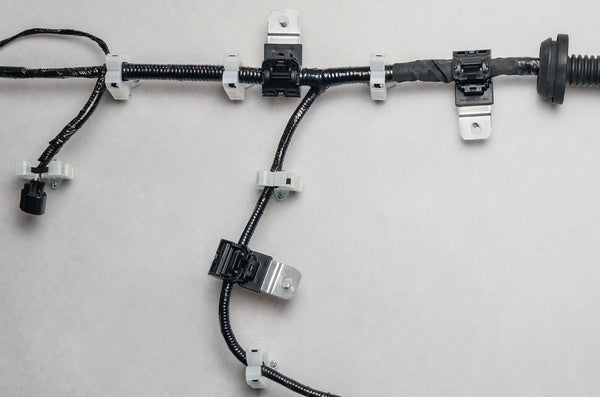

  • All-in-one bundling and fastening solution reduces costs and assembly time.
  • Disc feature provides anti-rattle protection in high-vibration applications.

Specifications

HellermannTyton - 151-03123 - Product Categories

  • OEM
  • Cable Management and Electrical
  • Cable Management
  • Bundling & Securing
  • Ratchet Clamps
  • Ratchet P-Clamps

HellermannTyton - 151-03123 - Specifications

Brand NameHellermannTyton
ApprovalsNone
CategoryClips And Clamps
ColorBlack
MaterialNylon 6
Quality StandardCommercial Release
Rohs CompliantNot Declared
TypeCable Clamp - P Form
UNSPSC Code39121700

HellermannTyton - 151-03123 - Base Data

Article Number151-03123
TypeRCF180SM10SS
ColorBlack (BK)
Quantity Percarton
Short DescriptionRatchet P-Clamp, 2.48 - 3.15" Bundle Dia, 180° Short, 0.41" Hole Dia, PA66HIRHSUV/SS304, Black,90/ctn
Global Part NameRCF180SM10SS-PA66HIRHSUV/SS304-BK

HellermannTyton - 151-03123 - Product Dimensions

Minimum Tensile Strength (Imperial)100
Minimum Tensile Strength (Metric)445
Length L (Imperial)9.57
Length L (Metric)243
Fixation MethodScrew Mounting
VariantShort
Width W (Imperial)1.37
Width W (Metric)34.9
Bundle Diameter Min (Imperial)2.48
Bundle Diameter Min (Metric)63
Bundle Diameter Max (Imperial)3.15
Bundle Diameter Max (Metric)80
Cable Tie Width Max (Imperial)0.52
Cable Tie Width Max (Metric)13.2
Mounting Hole Diameter D (Imperial)0.405
Mounting Hole Diameter D (Metric)10.29 mm
Stud Diameter (Metric)M10
Mounting Hole Centers (Imperial)3.46

HellermannTyton - 151-03123 - Logistic & Packaging

Package Quantity (Imperial)90
Package Quantity (Metric)90
Customs Number3.93E+09

HellermannTyton - 151-03123 - Materials & Specifications

MaterialStainless Steel (SS304)Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material ShortcutPA66HIRHSUVSS304
FlammabilityUL 94 HB
Halogen FreeYes
UV Resistant (Yes/No)Yes
Operating Temperature-40°F to +221°F (-40°C to +105°C)
Reach Compliant (Article 33)Yes
ROHS CompliantYes

HellermannTyton - 151-03123 - Videos

HellermannTyton 151-03123 Video URLClick to View
