HellermannTyton 151-03821 | The MOC with Round Fir Tree features HellermannTyton’s unique retention clip with an integrated fir tree to fit securely in a 6.5 (+/-0.4) mm hole.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-03821 | The MOC with Round Fir Tree features He...
Description
Description

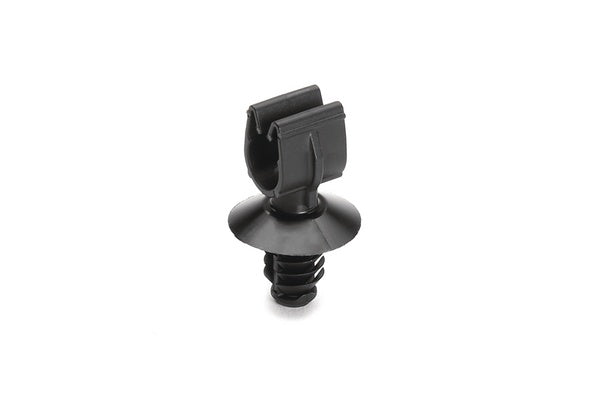

The MOC with Round Fir Tree features HellermannTyton’s unique retention clip with an integrated fir tree to fit securely in a 6.5 (+/-0.4) mm hole. The mount delivers a low insertion force while exhibiting high extraction resistance for a secure mounti ng point against a panel.
The MOC with Round Fir Tree features HellermannTyton's unique retention clip with an integrated fir tree to fit securely in a 6.5 (+/-0.4) mm hole. The mount delivers a low insertion force while exhibiting high extraction resistance for a secure mounting point against a panel.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-03821 - Features
- Patented retention design on clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Independent rotation allows for adjustable routing orientation.
- Cable tie accommodates wide range of secondary bundle sizes.
Specifications
Specifications
HellermannTyton - 151-03821 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-affixing Clips
- MOC Clips with Fir Tree
HellermannTyton - 151-03821 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cable Tie - C/W Christmas Tree Mounting |
| UNSPSC Code | 39121703 |
HellermannTyton - 151-03821 - Base Data
| Article Number | 151-03821 |
|---|---|
| Type | MOC7FT6.5 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | MOC Clip, 7 mm, with 6.5mm Fir Tree, PA66HIRHSUV, Black, 100/bg |
| Global Part Name | MOC7FT6.5-PA66HIRHSUV-BK |
HellermannTyton - 151-03821 - Product Dimensions
| Length L (Imperial) | 0.67 |
|---|---|
| Length L (Metric) | 17 |
| Fixation Method | Fir Tree |
| Bundle Diameter Min (Imperial) | 0.24 |
| Bundle Diameter Min (Metric) | 6 |
| Bundle Diameter Max (Imperial) | 0.31 |
| Bundle Diameter Max (Metric) | 8 |
| Height H (Imperial) | 1.15 |
| Height H (Metric) | 29.1 |
| Depth D (Imperial) | 0.39 |
| Depth D (Metric) | 10 |
| Panel Thickness Min (Imperial) | 0.02 |
| Panel Thickness Max (Imperial) | 0.22 |
| Panel Thickness Min (Metric) | 0.6 |
| Panel Thickness Max (Metric) | 5.5 |
| Mounting Hole Diameter D (Imperial) | 0.25 " HEX; 0.26 |
| Mounting Hole Diameter D (Metric) | 6.5 mm (+/- 0.4 mm)6.35 mm (hexagonal) |
HellermannTyton - 151-03821 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-03821 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
