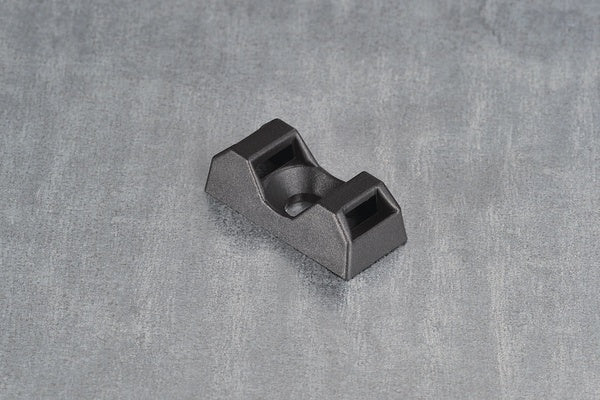

HellermannTyton 151-10930 | Q Tie Mount, M4 Screw, 0.83" X 0.3...
Description
Description

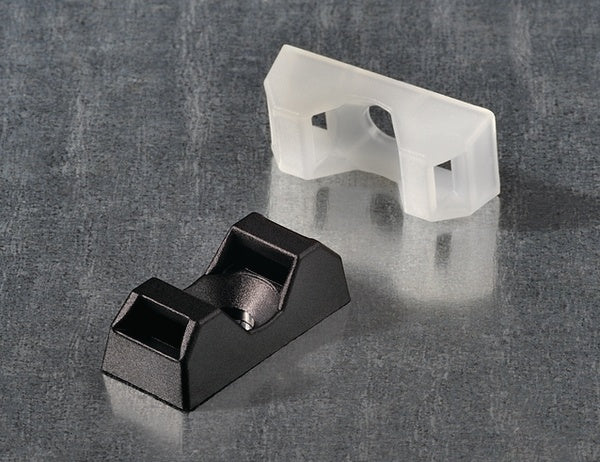

Q-Series mounting bases are designed to work exclusively with the Q-Tie cable tie series. This mounting component can be secured with screws. The Q-Mount allows either a two- or four-way entry for the Q-Tie, providing a quick and simple insertion into the mount. Once in place, the Q-Tie will not slip out, even in vertical mounting applications.
Q-Series mounting bases are designed to work exclusively with the Q-Tie cable tie series. This mounting component can be secured with screws. The Q-Mount allows either a two- or four-way entry for the Q-Tie, providing a quick and simple insertion into the mount. Once in place, the Q-Tie will not slip out, even in vertical mounting applications.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-10930 - Features
- 2- or 4-way entry options for the Q-Tie, offering flexibility and stability
- Designed for use with 18- through 120-pound cable ties to provide stability when securing bundles.
- Secures with a single screw, providing quick installation.
Specifications
Specifications
HellermannTyton - 151-10930 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Cable Tie Mounts
- Screw Mounting Bases
HellermannTyton - 151-10930 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-10930 - Base Data
| Article Number | 151-10930 |
|---|---|
| Type | CTQM5 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Q Tie Mount, M4 Screw, 0.83" x 0.38" x 0.26", For Q18–Q50 ties, PA66, Black, 100/bg |
| Global Part Name | CTQM5-PA66-BK |

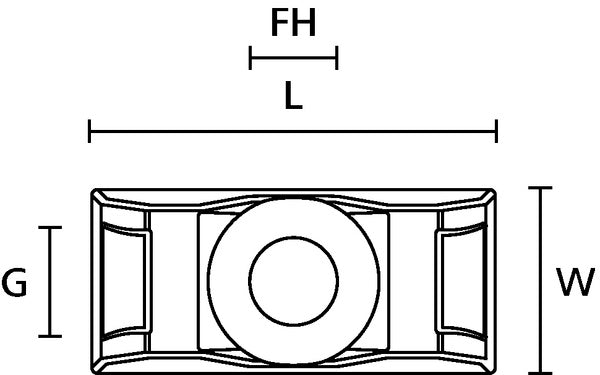

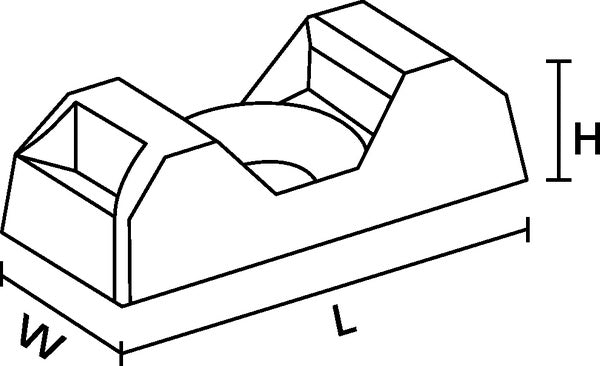

HellermannTyton - 151-10930 - Product Dimensions
| Length L (Imperial) | 0.83 |
|---|---|
| Length L (Metric) | 21 |
| Fixation Method | Screw Mounting and Rivet |
| Width W (Imperial) | 0.38 |
| Width W (Metric) | 9.5 |
| Cable Ties | Q-Ties |
| Height H (Imperial) | 0.26 |
| Height H (Metric) | 6.7 |
| Cable Tie Width Max (Imperial) | 0.2 |
| Cable Tie Width Max (Metric) | 5 |
| Mounting Hole Diameter D (Imperial) | 0.175 |
| Mounting Hole Diameter D (Metric) | 4.5 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.18 |
| Mounting Hole Diameter D Max (Metric) | 4.5 |
HellermannTyton - 151-10930 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-10930 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | UL | ANSI/UL 746BUL | ANSI/UL 62275UL | ANSI/UL 1565 |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
