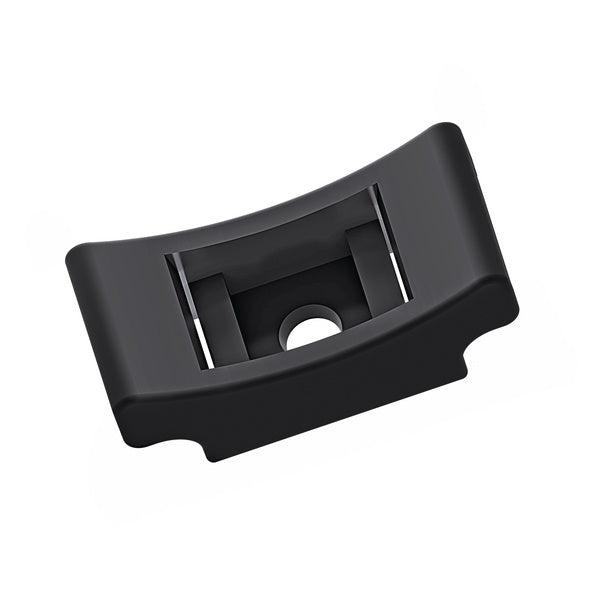

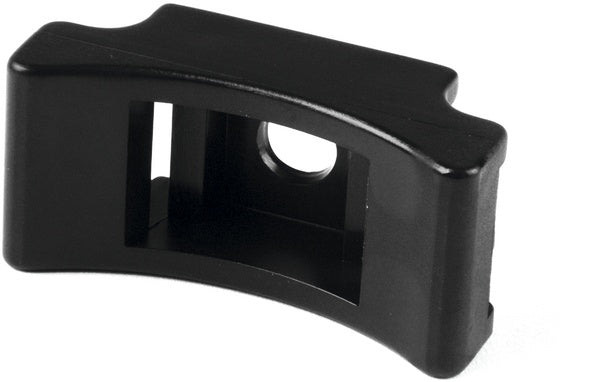

HellermannTyton 151-27202 | Mounting Cradle for Cable Tie Series T50-T250 Max Bun Dia 3" Length 1.6" PA66, Black 100/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-27202 | Mounting Cradle for Cable Tie Series T5...
Description
Description

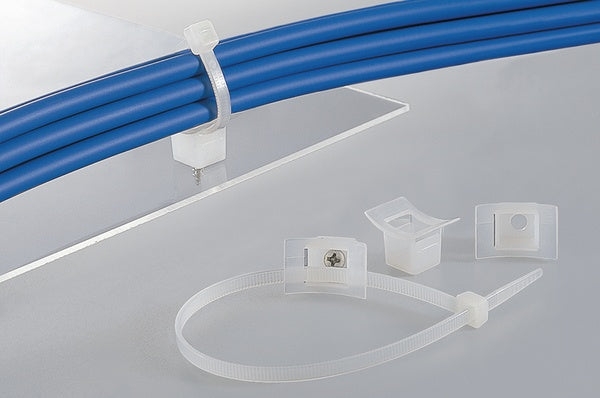

Mounting Cradles hold cables and harnesses securely and clear of the panel surface. These are designed with the ability to hold heavier bundles, and can support cable ties up to .5" wide.
Mounting Cradles hold cables and harnesses securely and clear of the panel surface. These are designed with the ability to hold heavier bundles, and can support cable ties up to .5" wide.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-27202 - Features
- Concave design ensures larger diameter cables and bundles are fully supported.
- Quickly installs with either a screw or bolt.
- Strong part design to allows for heavy bundles.
- Patented retention design of clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Clip and clamp both offer easy bundle installation.
- Independent rotation allows for adjustable routing orientation.
- Locking clamp dynamically fits a range of bundle sizes.
Specifications
Specifications
HellermannTyton - 151-27202 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Cable Tie Mounts
- Screw Mounting Bases
HellermannTyton - 151-27202 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | 3.00 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Spiral Wrap | No |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-27202 - Base Data
| Article Number | 151-27202 |
|---|---|
| Type | LKCSF1 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Mounting Cradle for Cable Tie Series T50-T250 Max Bun Dia 3" Length 1.6" PA66, Black 100/pkg |
| Global Part Name | LKCSF1-PA66-BK |
HellermannTyton - 151-27202 - Product Dimensions
| Length L (Imperial) | 1.6 |
|---|---|
| Length L (Metric) | 40 |
| Fixation Method | Screw Mounting and Rivet |
| Width W (Metric) | 19 |
| Height H (Imperial) | 0.66 |
| Height H (Metric) | 16.8 |
| Cable Tie Width Max (Metric) | 13 |
| Mounting Hole Diameter D (Imperial) | 0.23 |
| Mounting Hole Diameter D (Metric) | 6.0 mm |
| Mounting Hole Diameter D Max (Metric) | 6 |
HellermannTyton - 151-27202 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-27202 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
