HellermannTyton 156-00071 | 2-Pc Cable Tie/Fir Tree Mount, 15" L, 0.35" (9Mm), 0.04 - 0.62" Panel, Pa66Hirhsuv, Blk, 100/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 156-00071 | 2-Pc Cable Tie/Fir Tree Mount, 15"...
Description
Description

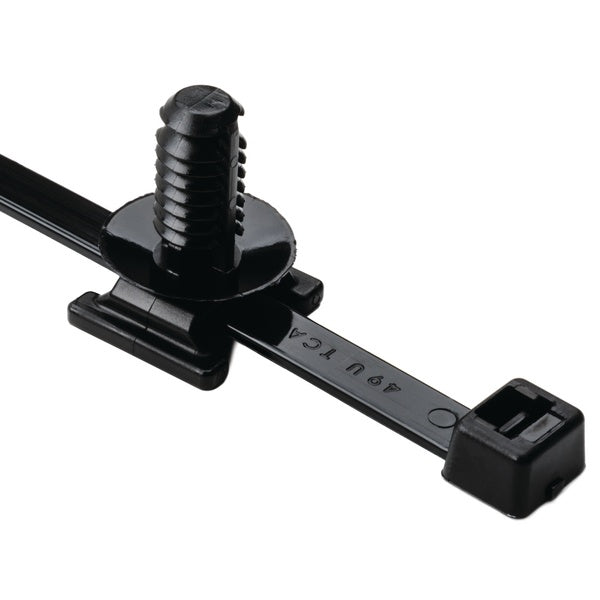

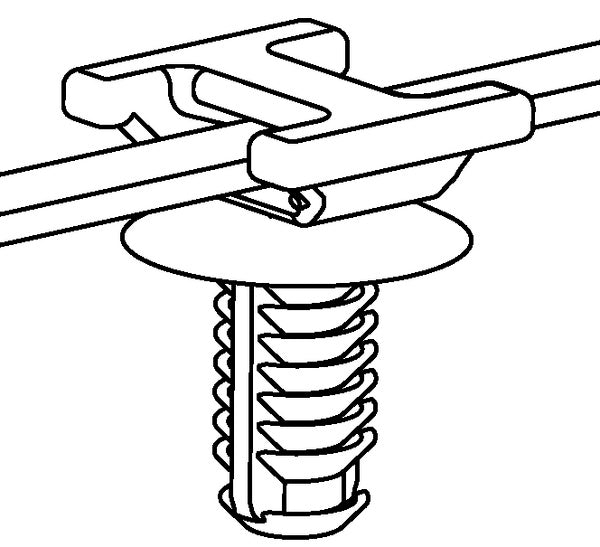

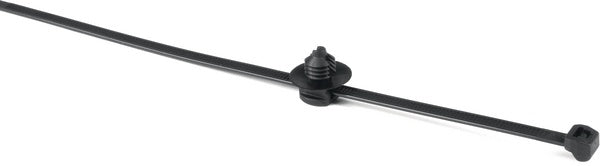

HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-00071 - Features
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
- Fir tree provides low insertion effort yet demonstrates high extraction resistance.
- Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
- Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance.
- Each finger is provided with a double restriction to hold wires in the bottom portion of the duct, allowing for easier installation.
- Mounting holes are uniform in size and are offered every 2 inches to accommodate compact designs and ease installation.
- Optional covers snap on and off easily, and are provided with a non-slip lining that insures the covers remain in place during vibration.
Specifications
Specifications
HellermannTyton - 156-00071 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Fir Tree Mount Cable Ties
HellermannTyton - 156-00071 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 156-00071 - Base Data
| Article Number | 156-00071 |
|---|---|
| Type | T120RFT9B |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | 2-Pc Cable Tie/Fir Tree Mount, 15" L, 0.35" (9mm), 0.04 - 0.62" Panel, PA66HIRHSUV, Blk, 100/pkg |
| Global Part Name | T120RFT9B-PA66HS/PA66HIRHSUV-BK |
HellermannTyton - 156-00071 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 120 |
|---|---|
| Minimum Tensile Strength (Metric) | 535 |
| Length L (Imperial) | 15 |
| Length L (Metric) | 380 |
| Fixation Method | Fir Tree |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Width W (Imperial) | 0.3 |
| Width W (Metric) | 7.6 |
| Bundle Diameter Min (Imperial) | 0.2 |
| Bundle Diameter Min (Metric) | 5 |
| Bundle Diameter Max (Imperial) | 4.13 |
| Bundle Diameter Max (Metric) | 105 |
| Thickness T (Imperial) | 0.07 |
| Thickness T (Metric) | 1.8 |
| Height H (Imperial) | 1.12 |
| Height H (Metric) | 28.5 |
| Panel Thickness Min (Imperial) | 0.04 |
| Panel Thickness Max (Imperial) | 0.622 |
| Panel Thickness Min (Metric) | 1 |
| Panel Thickness Max (Metric) | 15.8 |
| Mounting Hole Diameter D (Imperial) | 0.34 - 0.36 |
| Mounting Hole Diameter D (Metric) | 8.7 - 9.2 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.34 |
| Mounting Hole Diameter D Max (Imperial) | 0.36 |
| Mounting Hole Diameter D Max (Metric) | 9.2 |
| Disc Diameter (Metric) | 21.6 |
| Disc Diameter (Imperial) | 0.85 |
HellermannTyton - 156-00071 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-00071 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)Polyamide 6.6 heat stabilized (PA66HS) |
|---|---|
| Material Shortcut | PA66HIRHSUVPA66HS |
| Material Cable Tie | Polyamide 6.6 heat stabilized (PA66HS) |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
