HellermannTyton 156-00282 | Heavy Duty Cable Tie/Fir Tree Mount, 15...
Description
Description

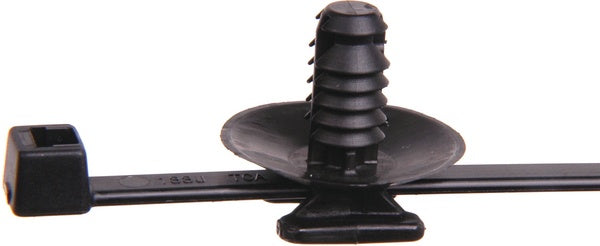

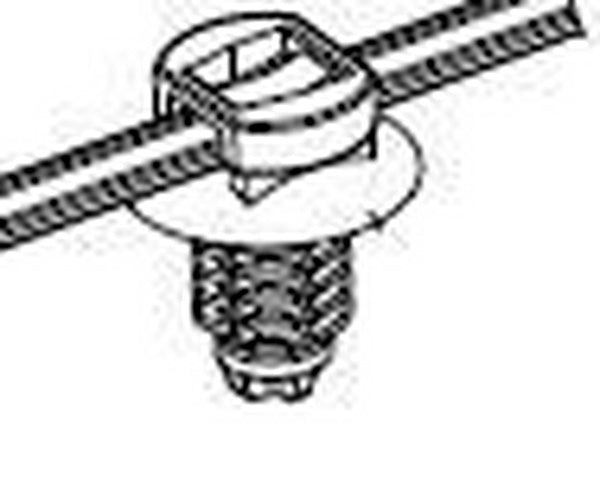

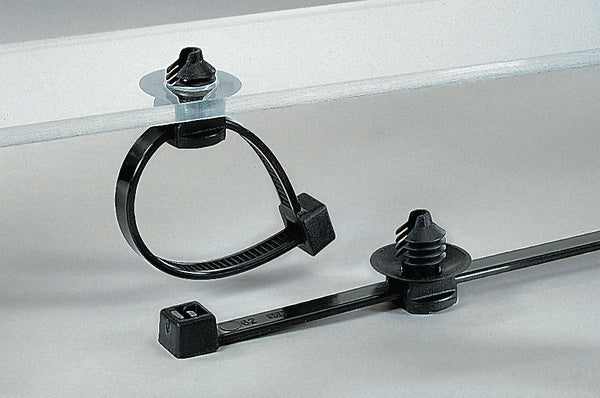

HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-00282 - Features
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
- Fir tree provides low insertion effort yet demonstrates high extraction resistance.
- Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
- One-piece ratchet closure allows for easy installation during pre- or final assembly
- Easy release feature simplifies quick adjustments and maintenance
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out
- Zinc-plated steel mounting plate tolerates high torque and is treated to resist chemicals and salt spray
- Straight, 180° mounting plate is ideal for applications requiring a flush mount set off from the mounting hole
Specifications
Specifications
HellermannTyton - 156-00282 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Fir Tree Mount Cable Ties
HellermannTyton - 156-00282 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Cable Tie Diameter | 15" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 156-00282 - Base Data
| Article Number | 156-00282 |
|---|---|
| Type | T50LFT7 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Heavy Duty Cable Tie/Fir Tree Mount, 15" x .5"L, 0.03 - 0.28" Panel Thick, 50lb, PA66HS/PA66HIRHS, Black, 500/pkg |
| Global Part Name | T50LFT7-PA66HS/PA66HIRHS-BK |

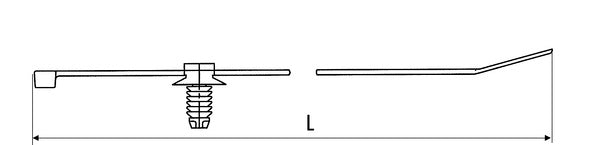

HellermannTyton - 156-00282 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 225 |
| Length L (Imperial) | 15 |
| Length L (Metric) | 380 |
| Fixation Method | Fir Tree |
| Identification Plate Position | none |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Width W (Imperial) | 0.18 |
| Width W (Metric) | 4.6 |
| Bundle Diameter Min (Imperial) | 0.16 |
| Bundle Diameter Min (Metric) | 4 |
| Bundle Diameter Max (Imperial) | 3.4 |
| Bundle Diameter Max (Metric) | 85 |
| Height H (Imperial) | 0.78 |
| Height H (Metric) | 19.8 |
| Panel Thickness Min (Imperial) | 0.031 |
| Panel Thickness Max (Imperial) | 0.276 |
| Panel Thickness Min (Metric) | 0.8 |
| Panel Thickness Max (Metric) | 7 |
| Mounting Hole Diameter D (Imperial) | 0.26 - 0.28 |
| Mounting Hole Diameter D (Metric) | 6.5 - 7.0 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.24 |
| Mounting Hole Diameter D Max (Imperial) | 0.8 |
| Disc Diameter (Metric) | 21.6 |
| Disc Diameter (Imperial) | 0.9 |
HellermannTyton - 156-00282 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-00282 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)Polyamide 6.6 heat stabilized (PA66HS) |
|---|---|
| Material Shortcut | PA66HSPA66HIRHS |
| Material Cable Tie | Polyamide 6.6 heat stabilized (PA66HS) |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
