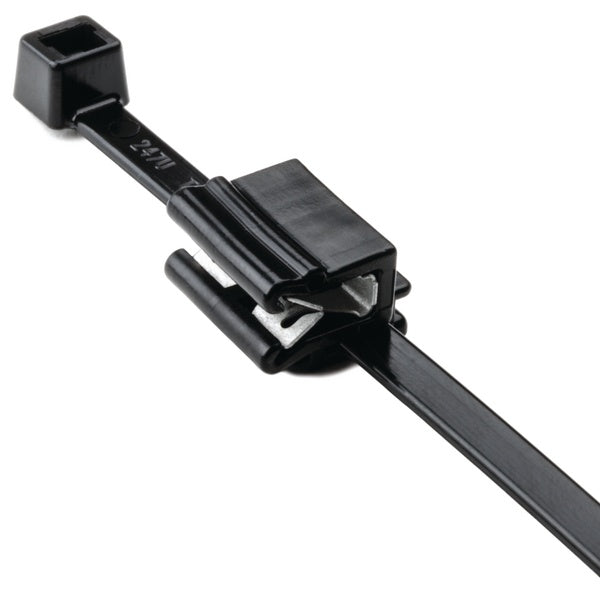

HellermannTyton 156-00468 | 2-Piece Cable Tie & Edge Clip, 8.0" Long, Ec5B, 1–3 Mm Panel, 50Lb, Pa66Uv/Pa66Hirhsuv, Black, 100/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 156-00468 | 2-Piece Cable Tie & Edge Clip, 8.0&...
Description
Description

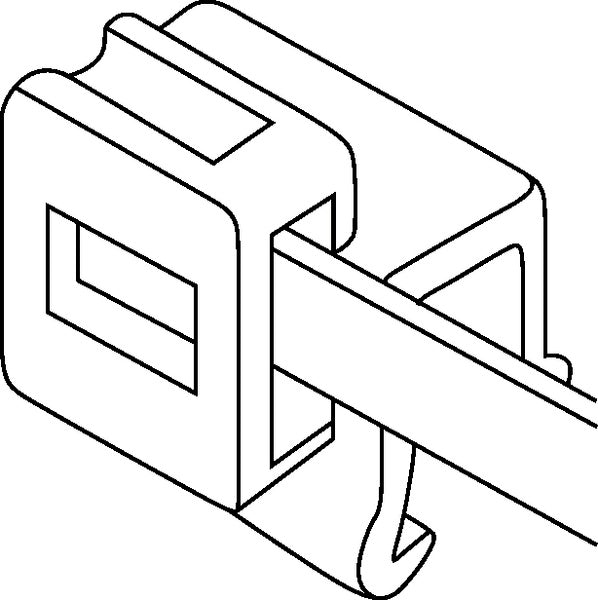

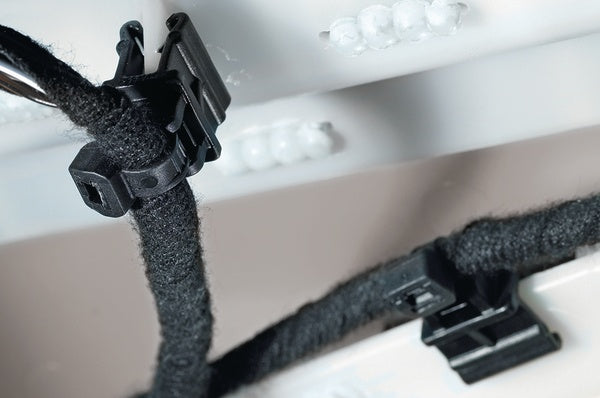

HellermannTyton’s Two Piece Edge Clip with Cable Tie Assemblies are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. The clip is easy to secure and the extraction forc e is high due to the integrated metal clamp that holds the edge clip in place.
HellermannTyton's Two-Piece Edge Clip with Cable Tie Assemblies are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. The clip is easy to secure and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-00468 - Features
- Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole.
- Edge Clip provides low insertion force and high extraction force ideal for assembly environments.
- An innovative coupling system allows for an unlimited number of bundling combinations.
- Clips can be easily released and reused.
- Clips swivel freely which reduces mechanical stress and eliminates pinch points.
- High Impact Polyamide 6.6 material provides firm fit even in rugged conditions.
- Consists of acrylate adhesive with base of polyurethane foam allowing it to adhere firmly and easily to nearly any surface.
Specifications
Specifications
HellermannTyton - 156-00468 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Edge Clip Cable Ties
HellermannTyton - 156-00468 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Cable Tie Diameter | 8" |
| Size | 8" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 156-00468 - Base Data
| Article Number | 156-00468 |
|---|---|
| Type | T50REC5B |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | 2-Piece Cable Tie & Edge Clip, 8.0" Long, EC5B, 1–3 mm Panel, 50lb, PA66UV/PA66HIRHSUV, Black, 100/pkg |
| Global Part Name | T50REC5B-PA66UV/PA66HIRHS-BK |
HellermannTyton - 156-00468 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 225 |
| Length L (Imperial) | 8 |
| Length L (Metric) | 202 |
| Fixation Method | EdgeClip, sideway, assembled, 2 piece |
| Identification Plate Position | none |
| Releasable Closure | No |
| Variant | Inside Serrated |
| Width W (Imperial) | 0.18 |
| Width W (Metric) | 4.6 |
| Bundle Diameter Min (Imperial) | 0.06 |
| Bundle Diameter Min (Metric) | 1.5 |
| Bundle Diameter Max (Imperial) | 1.97 |
| Bundle Diameter Max (Metric) | 50 |
| Thickness T (Imperial) | 0.05 |
| Thickness T (Metric) | 1.2 |
| Height H (Imperial) | 0.61 |
| Height H (Metric) | 15.5 |
| Panel Thickness Min (Imperial) | 0.04 |
| Panel Thickness Max (Imperial) | 0.12 |
| Panel Thickness Min (Metric) | 1 |
| Panel Thickness Max (Metric) | 3 |
HellermannTyton - 156-00468 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-00468 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)Polyamide 6.6 UV-stabilized (PA66UV) |
|---|---|
| Material Shortcut | PA66HIRHSPA66UV |
| Material Cable Tie | Polyamide 6.6 UV-stabilized (PA66UV) |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +257°F (-40°C to +125°C)-40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
HellermannTyton - 156-00468 - Videos
| HellermannTyton 156-00468 Video URL | Click to View |
|---|---|
| HellermannTyton 156-00468 Video URL 2 | Click to View |
