HellermannTyton 156-00799 | 2-Piece Cable Tie & Edge Clip, 6.0&...
Description
Description

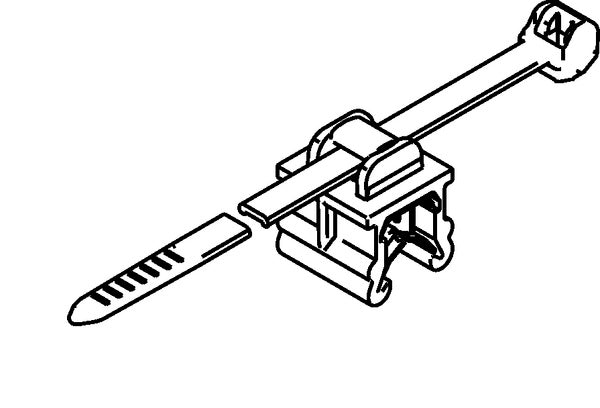

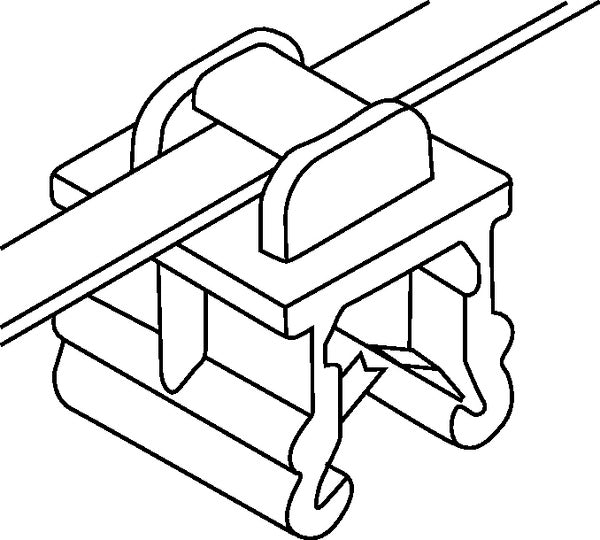

This cable tie and edge clip assembly is ideal for use where holes are not acceptable or where adhesives will fail due to temperature problems. Edge clips are widely used for fixing and bundling cables and wires within automotive, trucking, heavy equip ment, solar panel, wind power, and white goods equipment manufacturing.
This cable tie and edge clip assembly is ideal for use where holes are not acceptable or where adhesives will fail due to temperature problems. Edge clips are widely used for fixing and bundling cables and wires within automotive, trucking, heavy equipment, solar panel, wind power, and white goods equipment manufacturing.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-00799 - Features
- Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole.
- Edge Clip provides low insertion force and high extraction force ideal for assembly environments.
- Two piece assembly allows the mount to slide along the strap ensuring proper orientation.
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
- Fir tree provides low insertion effort yet demonstrates high extraction resistance.
- Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
Specifications
Specifications
HellermannTyton - 156-00799 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-Affixing Cable Ties
- Edge Clip Cable Ties
HellermannTyton - 156-00799 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | 6.00 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 156-00799 - Base Data
| Article Number | 156-00799 |
|---|---|
| Type | T30REC20 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | 2-Piece Cable Tie & Edge Clip, 5.8" Long, EC20, 3-6mm Panel, 30lb, PA66HS/PA66HIRHS, Black, 500/pkg |
| Global Part Name | T30REC20-PA66HS/PA66HIRHS-BK |
HellermannTyton - 156-00799 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 30 |
|---|---|
| Minimum Tensile Strength (Metric) | 135 |
| Length L (Imperial) | 6 |
| Length L (Metric) | 150 |
| Fixation Method | EdgeClip, top, assembled, 2 piece |
| Identification Plate Position | none |
| Variant | Inside Serrated |
| Width W (Imperial) | 0.14 |
| Width W (Metric) | 3.6 |
| Bundle Diameter Min (Imperial) | 0.2 |
| Bundle Diameter Min (Metric) | 1 |
| Bundle Diameter Max (Imperial) | 1.4 |
| Bundle Diameter Max (Metric) | 32 |
| Thickness T (Imperial) | 0.04 |
| Height H (Imperial) | 0.04 |
| Height H (Metric) | 1.1 |
| Panel Thickness Min (Imperial) | 0.12 |
| Panel Thickness Max (Imperial) | 0.24 |
| Panel Thickness Min (Metric) | 3 |
| Panel Thickness Max (Metric) | 6 |
HellermannTyton - 156-00799 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-00799 - Materials & Specifications
| Material | Polyamide 6.6 heat stabilized (PA66HS)Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHSPA66HS |
| UV Resistant (Yes/No) | No |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
HellermannTyton - 156-00799 - Videos
| HellermannTyton 156-00799 Video URL | Click to View |
|---|---|
| HellermannTyton 156-00799 Video URL 2 | Click to View |
