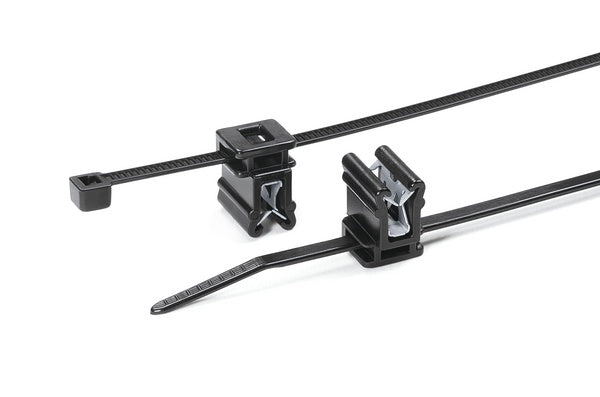

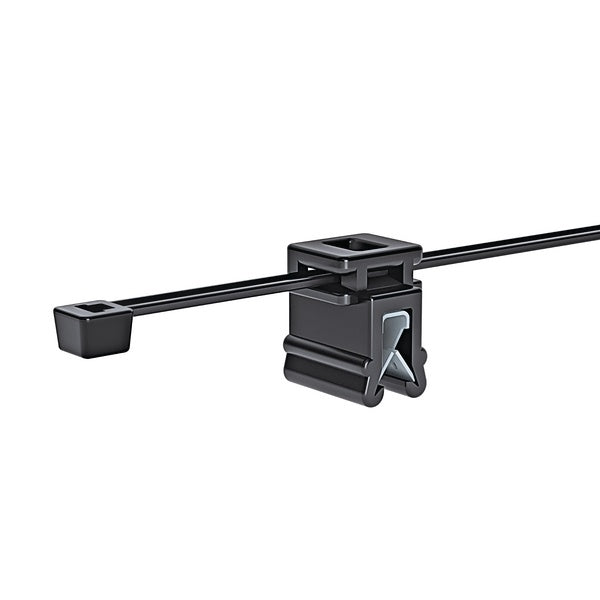

HellermannTyton 156-00813 | 2-Piece Cable Tie & Edge Clip, 6.0" Long, Ec4A, 1–3 Mm Panel, 30Lb, Pa66Hs, Black, 500/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 156-00813 | 2-Piece Cable Tie & Edge Clip, 6.0&...
Description
Description

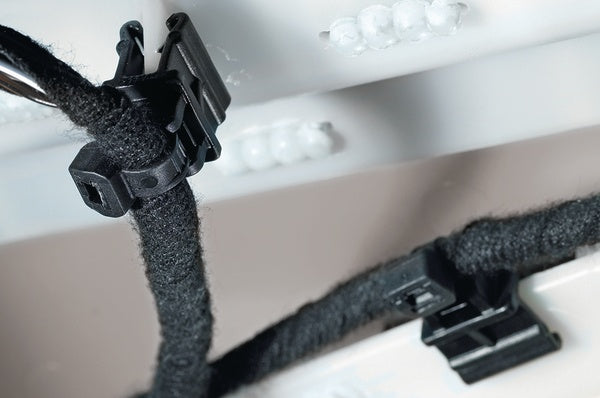

The cable tie and edge clip assembly is ideal for use where holes are not acceptable or where adhesives will fail due to temperature problems. Edge clips are widely used for fixing and bundling cables and wires within automotive, trucking, heavy equipm ent, solar panel, wind power, and white goods equipment manufacturing.
The cable tie and edge clip assembly is ideal for use where holes are not acceptable or where adhesives will fail due to temperature problems. Edge clips are widely used for fixing and bundling cables and wires within automotive, trucking, heavy equipment, solar panel, wind power, and white goods equipment manufacturing.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-00813 - Features
- Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole.
- Edge Clip provides low insertion force and high extraction force ideal for assembly environments.
- Two piece assembly allows the mount to slide along the strap ensuring proper orientation.
- A temporary film is applied to the covers to protect against scratches and is writable for identification during installation.
- Cover is flush with the side of the duct for increased wire capacity and allows for tight, side by side duct placement.
- Covers are provided with a non-slip lining, which insures the covers remain in place during vibration, yet they easily snap on and off. (Covers to be purchased separately)
Specifications
Specifications
HellermannTyton - 156-00813 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-Affixing Cable Ties
- Edge Clip Cable Ties
HellermannTyton - 156-00813 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | 6.00 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 156-00813 - Base Data
| Article Number | 156-00813 |
|---|---|
| Type | T30REC4A |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | 2-Piece Cable Tie & Edge Clip, 6.0" Long, EC4A, 1–3 mm Panel, 30lb, PA66HS, Black, 500/pkg |
| Global Part Name | T30REC4A-PA66HS/PA66HIRHS-BK |
HellermannTyton - 156-00813 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 30 |
|---|---|
| Minimum Tensile Strength (Metric) | 135 |
| Length L (Imperial) | 6 |
| Length L (Metric) | 150 |
| Fixation Method | EdgeClip, top, assembled, 2 piece |
| Identification Plate Position | none |
| Releasable Closure | No |
| Variant | Inside Serrated |
| Width W (Imperial) | 0.14 |
| Width W (Metric) | 3.6 |
| Bundle Diameter Min (Imperial) | 0.2 |
| Bundle Diameter Min (Metric) | 5 |
| Bundle Diameter Max (Imperial) | 1.4 |
| Bundle Diameter Max (Metric) | 35 |
| Thickness T (Imperial) | 0.04 |
| Thickness T (Metric) | 1.1 |
| Height H (Imperial) | 0.04 |
| Height H (Metric) | 1.1 |
| Panel Thickness Min (Imperial) | 0.04 |
| Panel Thickness Max (Imperial) | 0.12 |
| Panel Thickness Min (Metric) | 1 |
| Panel Thickness Max (Metric) | 3 |
HellermannTyton - 156-00813 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-00813 - Materials & Specifications
| Material | Polyamide 6.6 heat stabilized (PA66HS)Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHSPA66HS |
| Material Cable Tie | Polyamide 6.6 heat stabilized (PA66HS) |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C)-40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
HellermannTyton - 156-00813 - Videos
| HellermannTyton 156-00813 Video URL | Click to View |
|---|---|
| HellermannTyton 156-00813 Video URL 2 | Click to View |
