HellermannTyton 156-00859 | Fixing Tie, 5mm to 35mm Bundle Dia, 150...
Description
Description

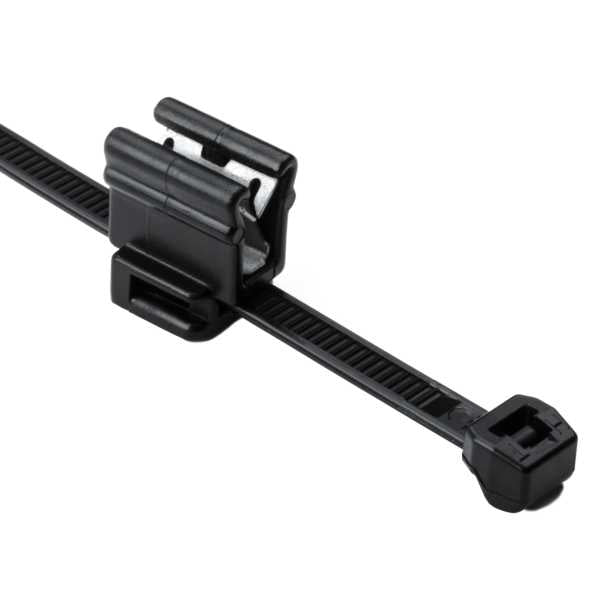

Outside serrated ties these two-piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 deg. to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Specifications
Specifications
HellermannTyton - 156-00859 - Product Categories
- Enclosures and Cable Routing
- Conduit and Cable Support
- Cable and Conduit Fasteners
- Cable Ties
HellermannTyton - 156-00859 - Specifications
| Manufacturer Name | HellermannTyton |
|---|---|
| Manufacturer Part Number | 156-00859 |
| Item Description | Fixing Tie, 5mm to 35mm Bundle Dia, 150mm L x 4.6mm W, Black |
| Bundle Diameter Max | 35mm |
| Bundle Diameter Min | 5mm |
| Clip Material | Heat Stabilized High-Impact Modified Polyamide 6.6 |
| Color | Black |
| DUAL | NO |
| For Use With | MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP |
| Length | 150mm |
| Material | High-Impact Modified, Heat and UV-Stabilized Polyamide 6.6 |
| Mounting | EdgeClip, Top |
| Number of Pieces | 2 |
| Package Quantity | 500 |
| Product Type | Outside Serrated Fixing Tie |
| Temperature Max | 105 C |
| Temperature Min | -40 C |
| Tensile Strength | 225 N |
| Thickness | 1.2mm |
| Width | 4.6mm |
