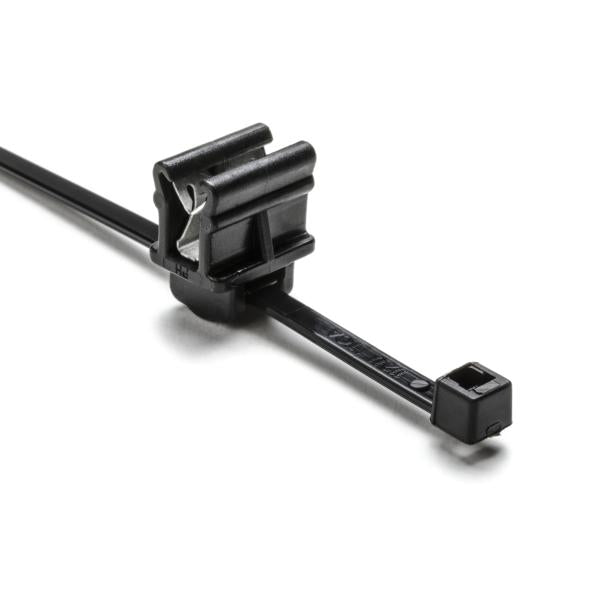

HellermannTyton 156-00869 | 2-Piece Cable Tie and Edge Clip, 6.0" Length, EC10, 1-3 mm Panel, 30 lb, PA66HS, Black, 500/Pack
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 156-00869 | 2-Piece Cable Tie and Edge Clip, 6.0&qu...
Description
Description
Inside serrated ties these two-piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 deg. to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Specifications
Specifications
HellermannTyton - 156-00869 - Product Categories
- Enclosures and Cable Routing
- Conduit and Cable Support
- Cable and Conduit Fasteners
- Cable Ties
HellermannTyton - 156-00869 - Specifications
| Manufacturer Part Number | 156-00869 |
|---|---|
| Manufacturer | HellermannTyton |
| Bundle Diameter Max | 30mm |
| Bundle Diameter Min | 1.5mm |
| CLASS | NO CLASS SPECIFIED |
| Color | Black |
| DUAL | NO |
| For Use With | MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i |
| Length | 148 mm |
| Material | Polyamide |
| Mounting | EdgeClip, Top |
| Number of Pieces | 2 |
| Package Quantity | 500 |
| Temperature Max | 105 C |
| Temperature Min | -40 C |
| Tensile Strength | 135 N |
| Thickness | 1.2mm |
| Width | 3.6mm |
